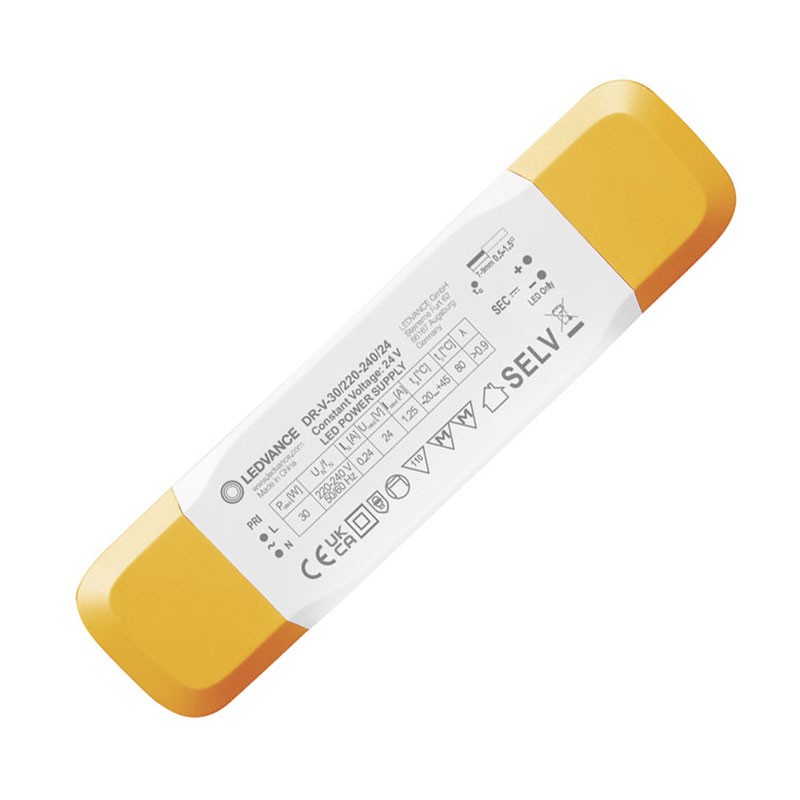

Osram LED Driver Power Supply 30W 24V IP20 DRVAL3024G2

Osram
Osram
LDV DRVAL3024G2 4058075240056

Constant voltage LED driver power supply with the following characteristics:

  • Voltage: 220/240V
  • Rated output voltage: 24V
  • U-OUT (working voltage): 24V
  • Rated power: 30W
  • Mains frequency: 50/60 Hz
  • Rated output power: 30 in 1
  • Current type: DC
  • Rated current: 240 mA
  • Inrush current: 20A
  • Output ripple current (100 Hz): < 5 %
  • Not dimmable
  • Suitable for emergency lighting: NO
  • Degree of protection: IP20

  • non dimmable
    • Request info about this product

    Osram LED Driver Power Supply 30W 24V IP20 DRVAL3024G2

    €12.56 Tax included
    €12.56

    Osram LED Driver Power Supply 30W 24V IP20 DRVAL3024G2

    €12.56
    Tax included

    -20€

    EXTRA

    Add the coupon code in the payment page

    Limited-time promotion
    Items Available: 147
    Altre disponibilità dal produttore
    qty

    Osram LED Driver Power Supply 30W 24V IP20 DRVAL3024G2

    €12.56

    Buy it within and receive it from Thursday, 13 November
    klarna Pay in installments with Klarna
    Two-year warranty
    Easy return within 14 days
    Purchase with tax breaks

    Are you a professional ?

    Request access to

    Trustpilot

    Other technical features:

    • Protection class: II
    • Power factor: > 0.90
    • ECG efficiency: 87 % 7
    • Device power loss: 4.4W
    • Overvoltage capability (LN): 1 kV
    • Weight: 96 grams
    • Cable cross-section, input side: 0.75 to 1.5 mm²
    • Cable cross section, output side: 0.75...1.5 mm²
    • Pre-wired: NO
    • Wire preparation length, input side: 7...9mm
    • Wire preparation length, output side: 7...9mm
    • Color: white
    • Enclosure/body material: plastic
    • ECG service life: 35,000 hours
    • Ambient temperature range: -20+45°C
    • Maximum temperature at tc test point: 80°C
    • Maximum housing temperature at failure: 110°C
    • Operating temperature range: -20+45°C
    • Allowable relative humidity during operation: 20...90 %
    • Connection type, output side: screw terminal

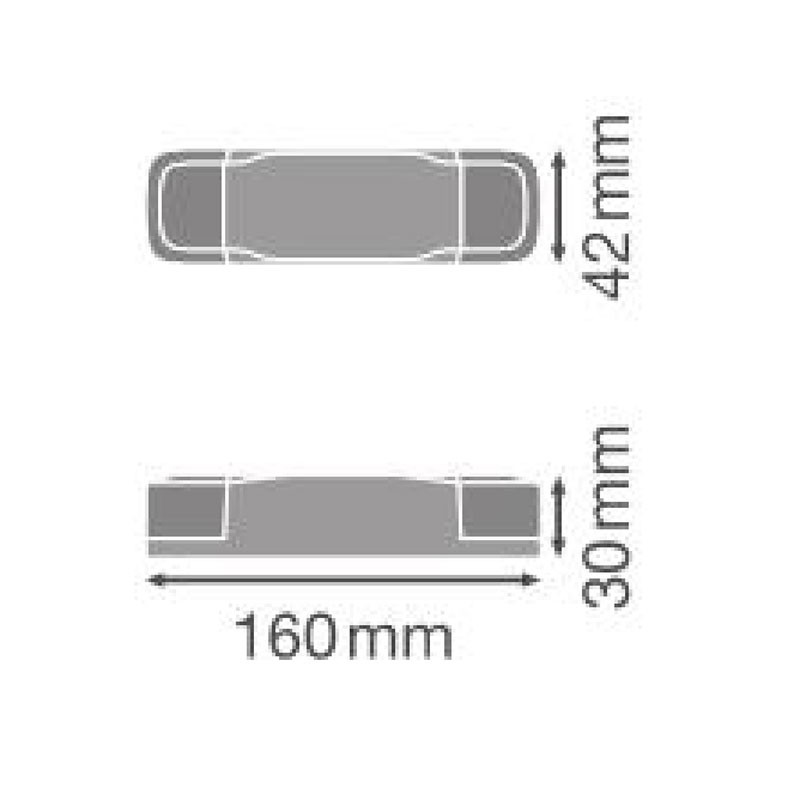

    Dimensions:

    • Length: 160mm
    • Distance between mounting holes, length: 142mm
    • Width: 42mm
    • Height: 30mm

    Areas of application:

    • Bay lighting, even in confined spaces
    • Wallwasher effect lighting in living rooms, dining rooms, bedrooms, entrances
    • For SELV installation in interiors
    • Offices, shopping malls, hospitals, restaurants, hotels

    Advantages:

    • Perfectly matched with flexible 24V LED strips
    • Excellent price/performance ratio 3-year warranty
    • Quick and easy installation
    • Good efficiency and reliability

    dispositivo silenzioso. pilota l'accensione di led in modo rapido e stabile.

    Read all reviews

    Data sheet

    Type:
    Power supplies
    Dimmable:
    No
