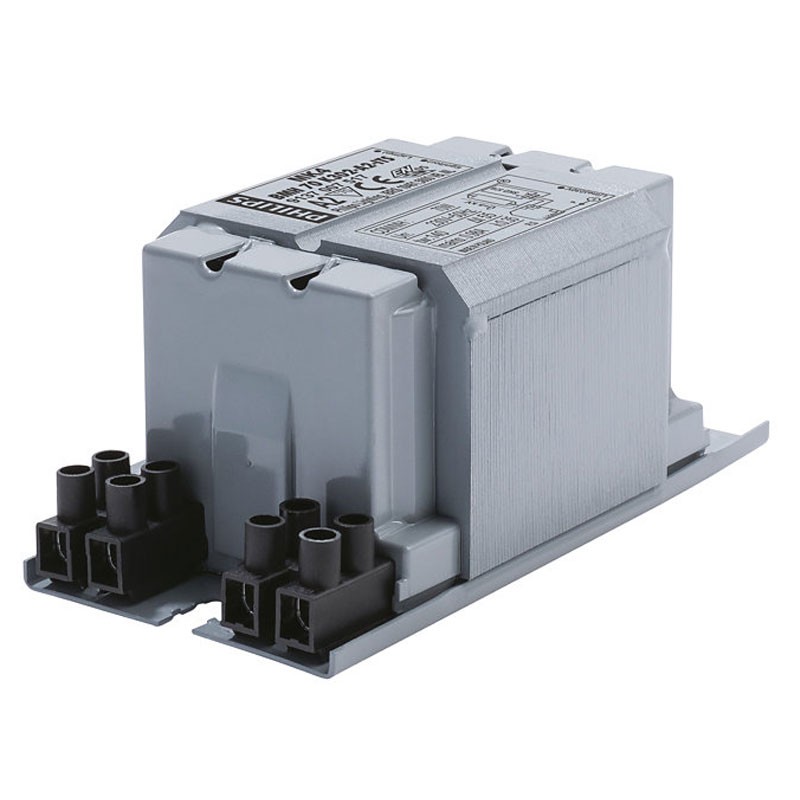

Philips Reactor for SAP/JM Lamps 70W 240V 50HZ BMH70K302ITS
PHL BMH70K302ITS
8718696740743
Philips copper-impregnated electromagnetic ballast for use with an external semi-parallel ignitor for CDM, CDO, MH, HPI (Plus) and SON lamps, with the following characteristics:
- 230V input voltage
- Input frequency 50 Hz
- 100% load power factor (Nom) 0.85
- Line voltage performance (AC) -8%-+6%
- Line voltage safety (AC) -10%-+10%
- Input current with power factor correction 0.45A
- Input current without power factor correction 0.98A
- Power factor without power factor correction (Nom) 0.35
- Power losses (Nom) 11.7W

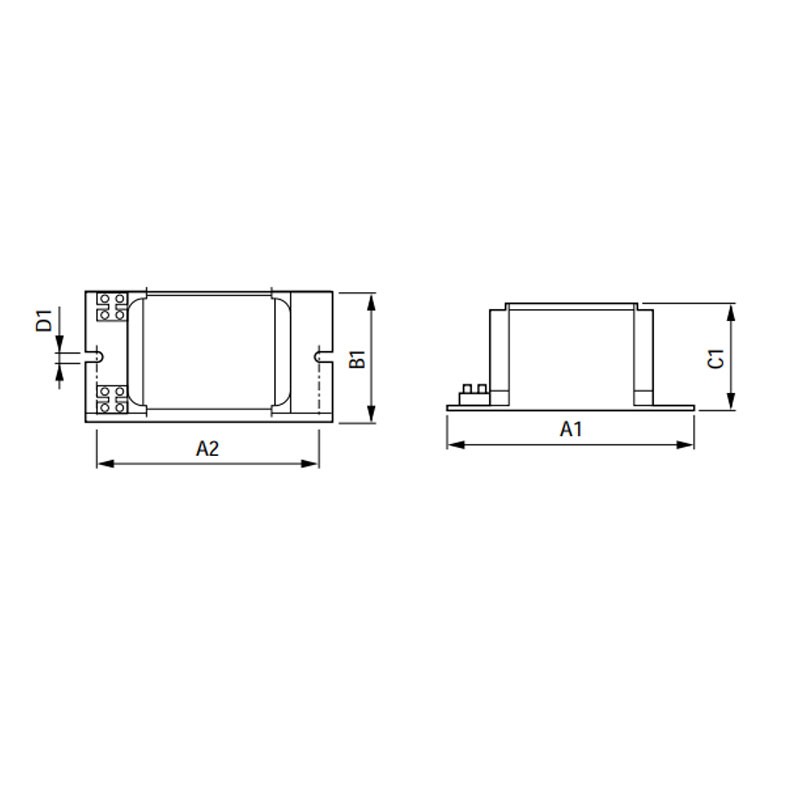

- Dimensions: D1 6.2mm - C1 52mm - A1 118mm - A2 94mm - B1 61mm
Philips Reactor for SAP/JM Lamps 70W 240V 50HZ BMH70K302ITS
€42.02
Tax included
€42.02
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Other technical features:
- Sheathing length 6.0 mm
- Reactor contact cable cross section 2.50 mm²
- Connector type Screw
- Capacitor 12µF/250V
- Specified ballast-lamp power 70W
- Storage temperature (Max) 130°C
- Storage temperature (Min) -30 °C
- Winding temperature (Max) 140 °C
- Delta-T Normal conditions 80 °C to 55 °C
- Approval Marks: CE Mark ENEC-certified
- Net weight: 1,260 kg
There are no reviews
Data sheet
- Type: Ballasts for SAP/JM
