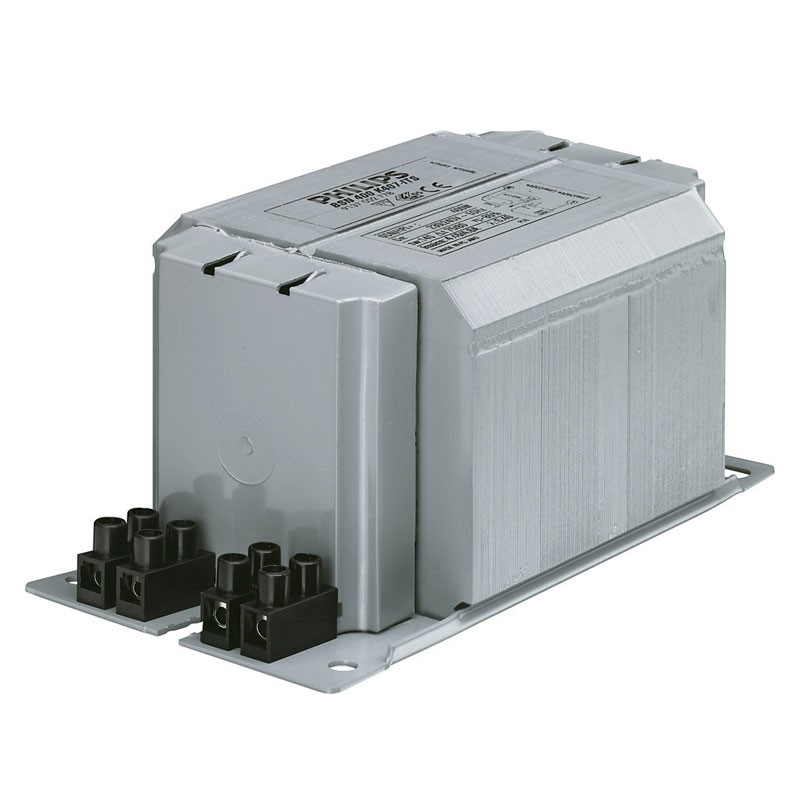

Philips Ballast for SAP/JM Lamps 400W 240V 50HZ BSN400K407ITS
PHL BSN400K407ITS
8727900887044
Philps impregnated copper electromagnetic ballast for use with an external semi-parallel ignitor for CDM, CDO, MH, HPI (Plus) and SON lamps, with the following characteristics:
- Input voltage 230V (default) or 240V
- Input frequency 50 Hz
- 100% load power factor (Nom) 0.85
- Line voltage performance (AC) -8%-+6%
- Line voltage safety (AC) -10%-+10%
- Input current with power factor correction 2.20A
- Input current without power factor correction 4.45A
- Power factor without power factor correction (Nom) 0.40
- Power losses (Nom) 33/34.5 W

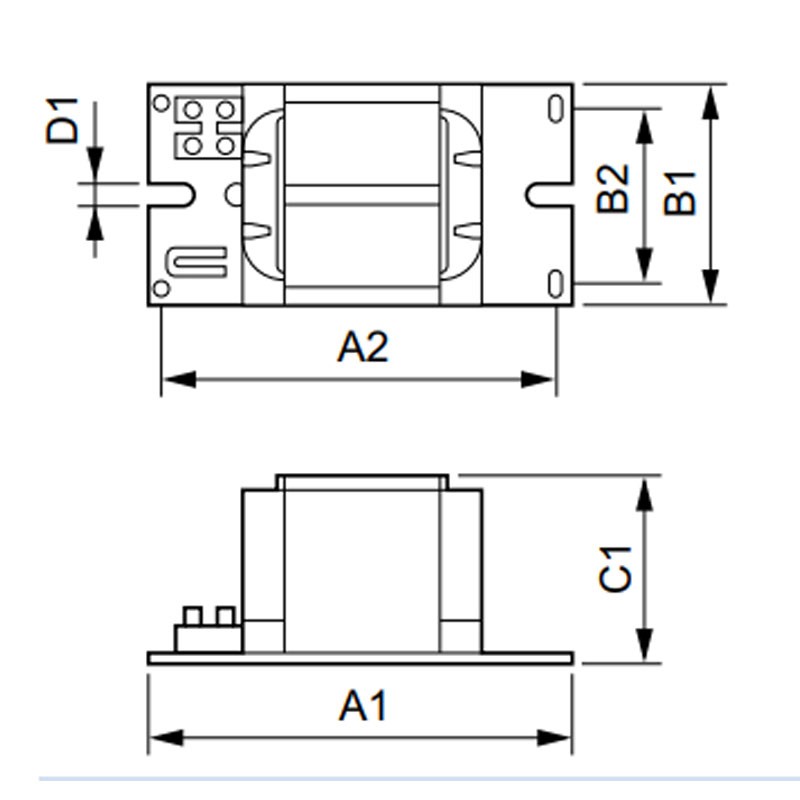

- Dimensions: D1 6.5mm - C1 83.0mm - A1 166.0mm - A2 145.0mm - B1 97.0mm - B2 78.5mm
Philips Ballast for SAP/JM Lamps 400W 240V 50HZ BSN400K407ITS
€142.69
Tax included
€142.69
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Other technical features:
- Sheathing length 7.0 mm
- Reactor contact cable cross section 1.50-4.00 mm²
- Connector type Screw
- Capacitor 45µF/250V
- Specified ballast-lamp power 400W
- Storage temperature (Max) 130°C
- Storage temperature (Min) -30 °C
- Winding temperature (Max) 130 °C
- Delta-T Normal conditions to 80 °C
- Active temperature protection Yes
- Approval Marks CE Mark ENEC Certificate
- Net weight 4.950 kg
There are no reviews
Data sheet
- Type: Ballasts for SAP/JM
