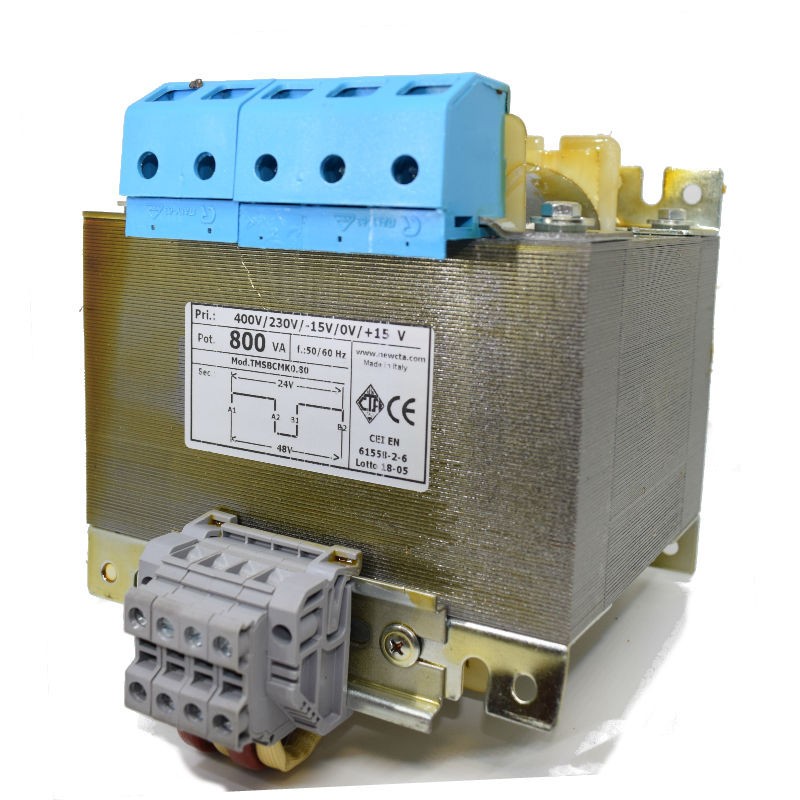

Transformer CTA two-Wire isolation 800VA 230-400/24+24 TMSBCMK0.800
NET TMSBCMK0.800
Transformer CTA two-Wire isolation 800VA 230-400/24+24 the Primary 0-230-400V 15V Secondary 0-24, Frequency 50/60Hz, dielectric strength between the primary-secondary: 3Kv for 1' to 50Hz, dielectric strength between windings-ground: 3KV for 1' to 50Hz, with the ability to adjust the voltage input and take the output by means of some jumpers, the full-power on all the voltages present.
Transformer CTA two-Wire isolation 800VA 230-400/24+24 TMSBCMK0.800
€212.46
Tax included
€212.46
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
Pay in installments with Klarna
Technical features: thermal Class cL. F, INSULATION class cL.F, Class of security Cl. I, Max ambient Temperature 35° C, storage Temperature: -20;+60°C (non-condensing), Impregnated with epoxy resin, Altitude: < 1000m, Accessories: 2 metal contacts mobile for realization combinations 24V and 48V full power, protection box: IP00. Comparable series Legrand 6423, insulation Resistance > 5 M?.
There are no reviews
Data sheet
- Type: Isolation transformers
