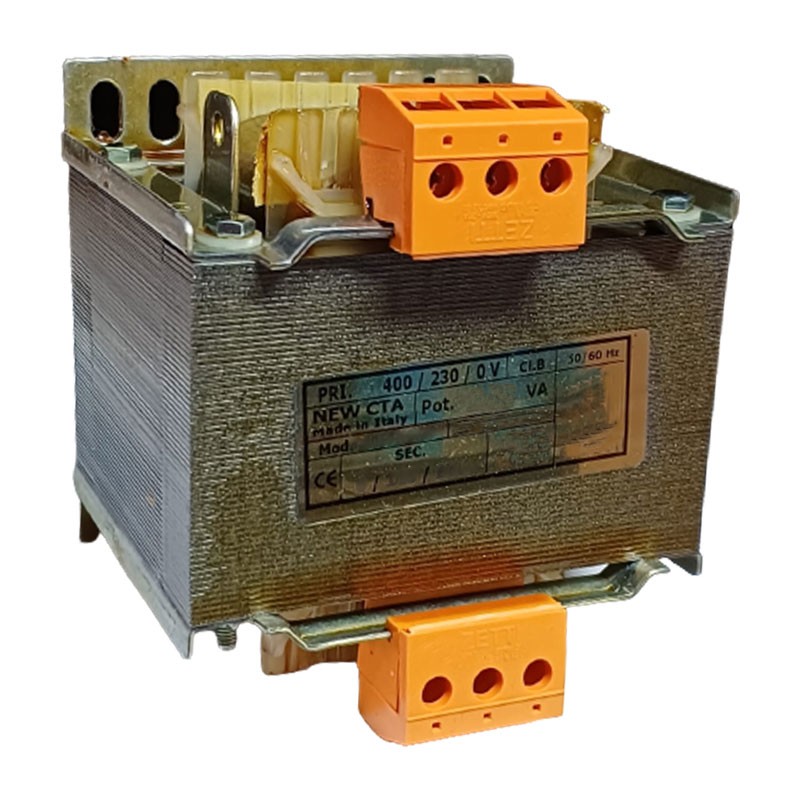

Single Phase Safety Transformer Cta 100VA Input 230/400V TMI7K0.10
NET TMI7K0,10
Cta Single-Phase Safety Transformer with the following characteristics:
- Power: 100VA
- Primary: 0/230/400V
- Secondary: 0/115/230V
- Terminals: 12/0/12V
- Frequency: 50/60 Hz
- Thermal Class: CI B (Up to 400VA) Over CL.F
- Insulation Class: CI.F
- Protection Class: CI. I
- Degree of Protection: IP00
- Ambient Operating Temperature: 40°
- Reference Name: IEC EN 61558-2-6
- Altitude: < 1000 m.a.s.l.
- Dimensions: 75x77x97 mm
- Weight: 1.4 kg
Single Phase Safety Transformer Cta 100VA Input 230/400V TMI7K0.10
€31.09
Tax included
€31.09
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
: 2
Transformers make it possible to isolate grounds to see which devices are the source of the leakage current to ground. Isolation transformers also reduce high-frequency noise that is transferred from the line to the connected device or vice versa.
There are no reviews
Data sheet
- Type:
- Isolation transformers
