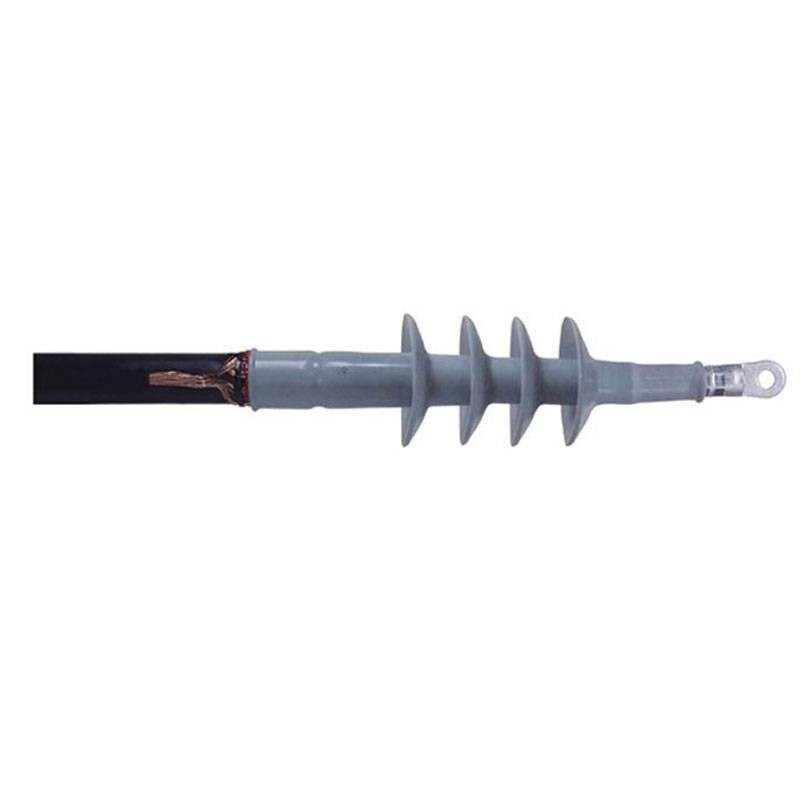

Single-pole silicone outdoor terminal CELLPACK 1P CAE-F 24KV 3 199194
CEL 199194
4010311054827
Single-pole silicon outdoor terminal CELLPACK with the following characteristics:
- Voltage levels: U0/U (Um) 12/20 (24) kV - 12.7/22 (24) kV
- Length: 325 mm
- Diameter above core insulation after removal of outer conductive layer min: 17.3 mm
- Number of sheds per phase: 4 Pieces
- Diameter shed: 87 mm
- Rated cross-section 24 kV min: 35 mm²
- Rated cross-section 24 kV max: 120 mm²
Single-pole silicone outdoor terminal CELLPACK 1P CAE-F 24KV 3 199194
€172.47
Tax included
€172.47
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
: 2
Pay in installments with Klarna
Contrax CAE-F terminations are suitable for all single-core plastic cables (PVC, PE, VPE, EPR) with conductive layers (graphited, removable or strippable) and shield realizations (wire or ribbon) of different types. Suitable for compression lugs.
Quick, easy and safe assembly due to silicone slip-on components, Large cross sections, Ready for immediate applications.
Also usable for Um = 7.2 kV cables, in this case check the minimum diameter on the cable insulation.
