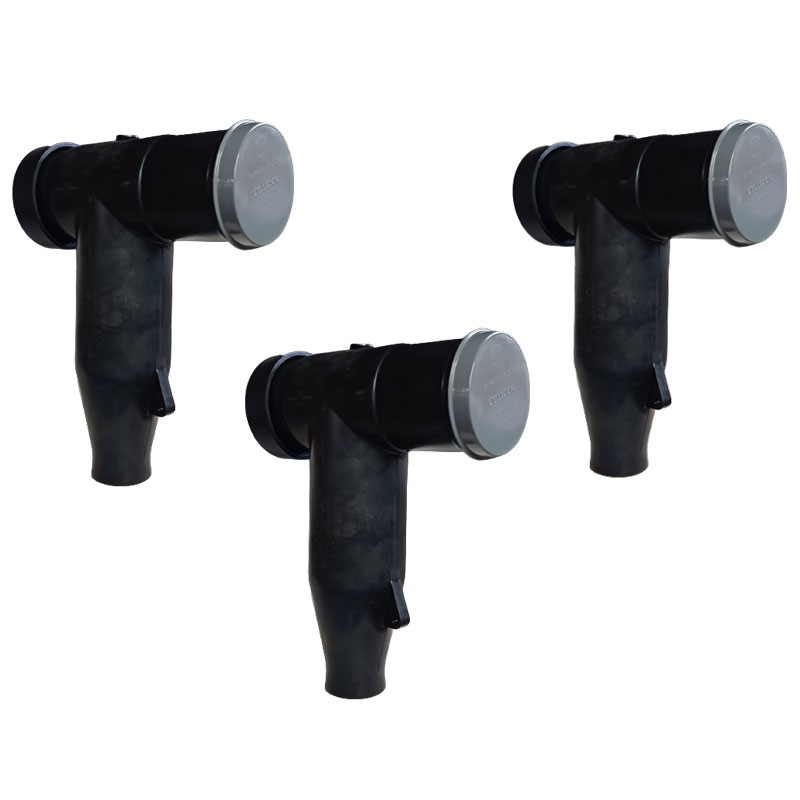

CELLPACK disconnectable T-terminal CTS 24KV 630A 355434
CEL 355434
4010311171890
T-disconnectable terminal (Type CTS 630A 24kV 25-70) Cellpack, with the following features:
- For all single-core polymer cables, for external cone type C interface
- With capacitive measuring point
- Individually tested
- EPDM semi-conductive outer layer provides protection from exposed electrical parts
- Cable insulation test can be carried out under voltage
- For aluminum/copper conductors
- Simple, quick and safe assembly
- Suitable for a wide range of applications due to integrated screw lug
- Applications: indoor and outdoor

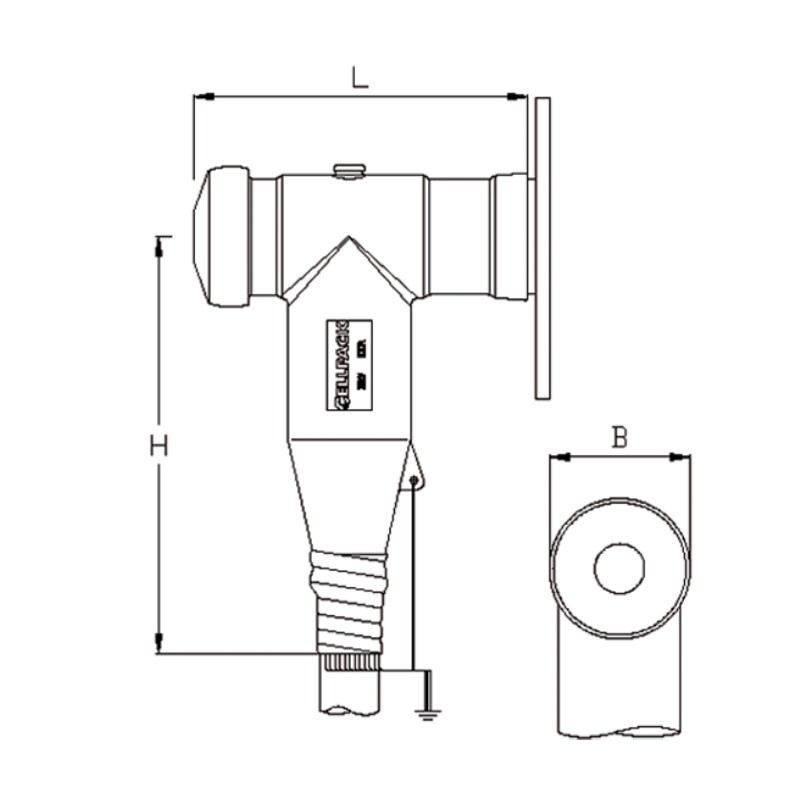

- Dimensions: length 194.0 mm - height 250.0 mm
CELLPACK disconnectable T-terminal CTS 24KV 630A 355434
€697.84
Tax included
€697.84
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
: 1
Pay in installments with Klarna
Applications:
- Number of conductors in electric cable: 1
- Total insulation center diameter after removal of outer conductive layer: ≥ 14.7 mm
- Rated cross-section 12kV: 50.0 mm² - 95.0 mm²
- Rated cross-section 24kV: 25.0 mm² - 70.0 mm²
Package contents:
- T-terminal
- Silicone anti-stress elements
- Grounding set
- Screw terminal lug for main conductor
- Mounting material
- Mounting instructions
