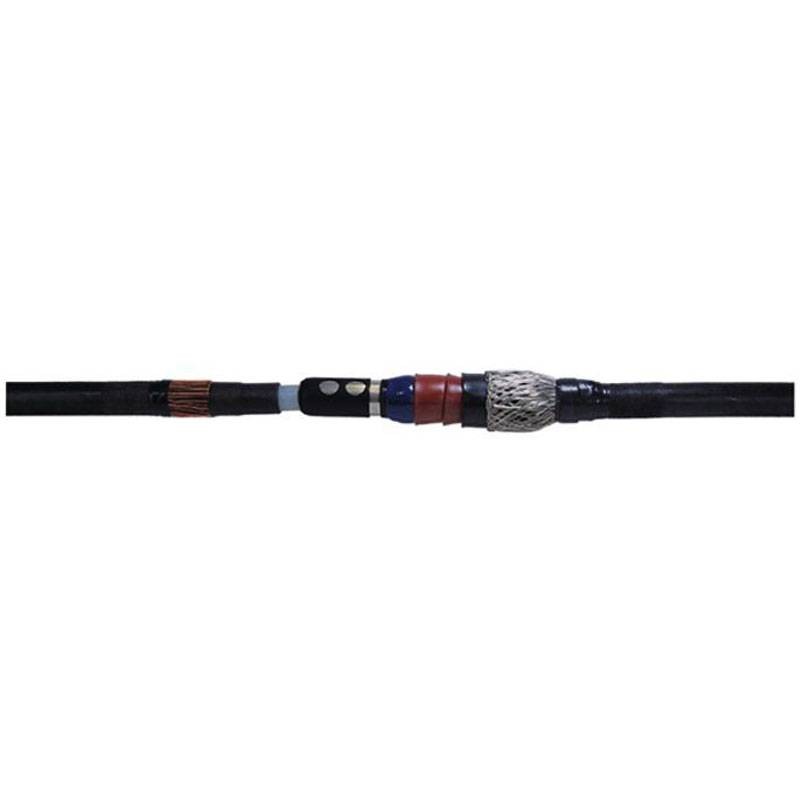

Single-pole straight joint CELLPACK screw connectors 1P C.V. CHMSV 24KV 258140
CEL 258140
4010311139753
Single-pole straight joint CELLPACK screw connectors for single-pole polymer cables with the following characteristics:
- Voltage levels: U0/U (Um) 12/20 (24) kV - 12.7/22 (24) kV
- Length: 600 mm
- Diameter above core insulation after removal of outer conductive layer min: 14.7 mm
- Nominal 24 kV cross-section min: 16mm²
- Nominal cross-section 24 kV max: 95mm²
Single-pole straight joint CELLPACK screw connectors 1P C.V. CHMSV 24KV 258140
€177.68
Tax included
€177.68
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
: 2
Pay in installments with Klarna
Frequently bought together
CHMSV hybrid straight couplings are suitable for all single-core plastic cables (PVC, PE, VPE, EPR). They allow the connection of cables with different cross-sections and conductive materials, even with different cable structures with respect to the conductive layer (graphitized, removable or strippable) and the realization of the shielding (copper wire or ribbon).
Safe field control due to permanently elastic silicone field control elements, For both Cu and AI conductors, For all cables with copper wire or ribbon shielding, Large cable and conductor cross sections, Quick, easy and safe assembly, Ready for immediate applications, Wide range of applications due to integrated screw connector.
Can also be used for Um = 7.2 kV cables, in this case check the minimum diameter on the cable insulation.
Applications: Indoor, Outdoor, Ground, Water, Cable duct, Conduit.
There are no reviews
Data sheet
- Type: Connections
