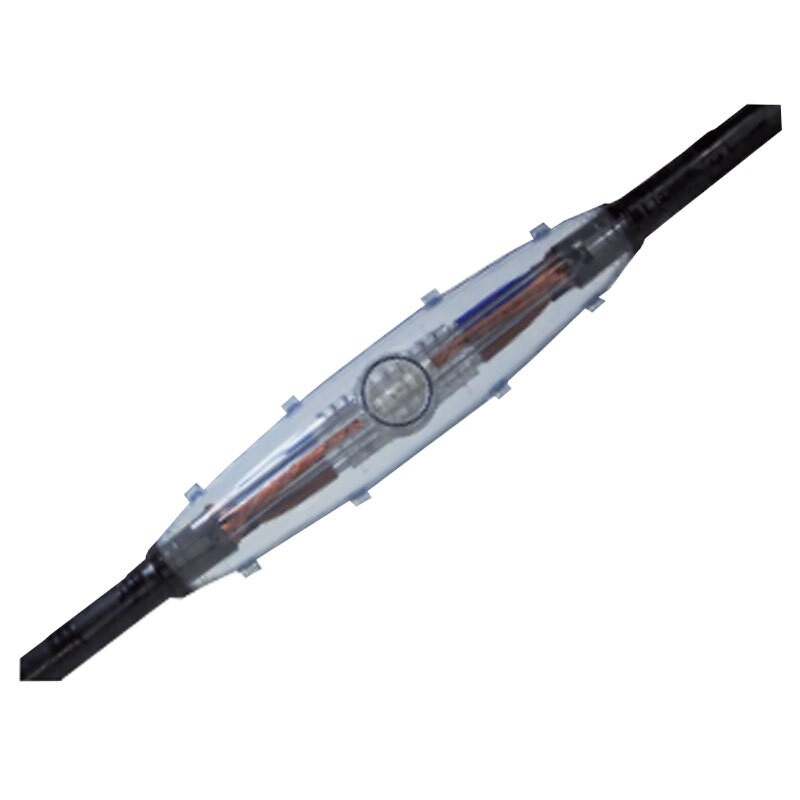

Straight cast resin joint Cellpack M14/S 5X50 IP68 124173
CEL 124173
4010311000169
Muffle Straight cast resin joint Cellpack M14/S for extruded insulated multi-core cables suitable for submersible/submersible pumps:
- Length 350.0 mm
- Height H 95.0 mm
- Cable diameter 48 mm
- Rated voltage Uo/U 0.6/1 kV
- Maximum voltage Um 1.2 kV
- Degree of protection Greater than IP68
- For indoor, outdoor and submerged laying
Cable formation Conductor section:
- 1 x 630 mm2
- 3 x 70 mm2
- 4 x 70 mm2
- 5 x 50 mm2
- 4 x 50 mm2 (armored)
Straight cast resin joint Cellpack M14/S 5X50 IP68 124173
€64.34
Tax included
€64.34
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
Pay in installments with Klarna
Properties:
- Compact size
- Visible joint area before casting
- High-quality transparent impact-resistant plastic shell
- Large filling opening to facilitate casting
- Resistant to chemicals
- Resistant to alkaline earth elements
- UV stabilized
- Longitudinally and transversely watertight
- High electrical insulation values
- High mechanical strength
- Ready for immediate operation
- Quick and easy installation saves time and reduces costs
Applications:
- Indoor
- Outdoor
- Subway
- Water
- Installation ducts
There are no reviews
Data sheet
- Diameter: M14/S 5X50
- Type: Connections
