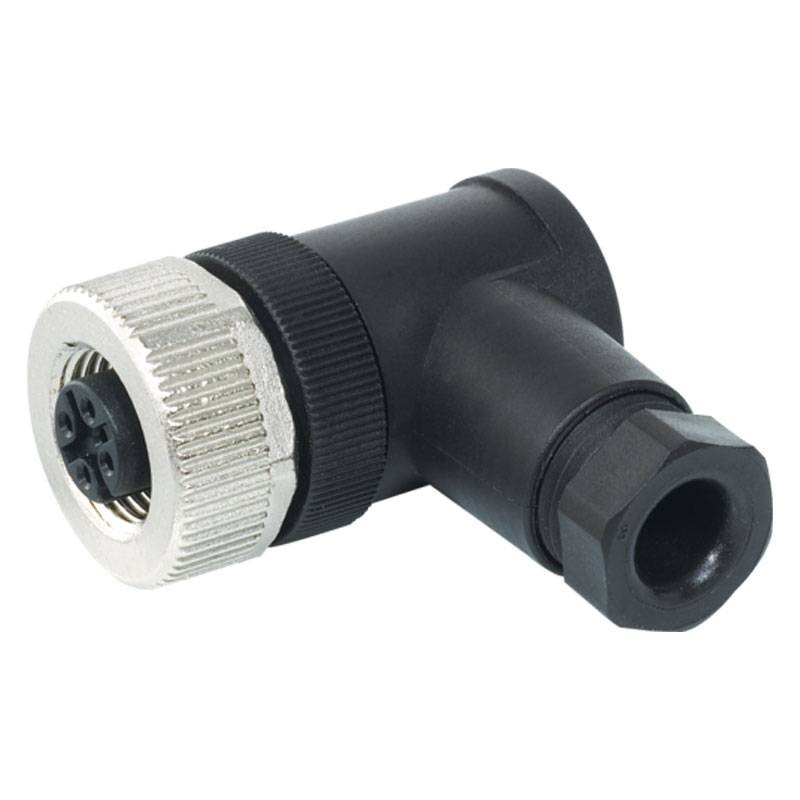

Murr connector M12 female 90° wire 4P 4A 7000129810000000
MUE 7000129810000000
4048879201520
Murr M12 female 90° connector wire screw terminals with the following characteristics:
- Maximum operating voltage: 250V AC/DC
- 4 poles
- Operating current per contact: max 4A
- Connector locking: Thread (M12×1 mm) tightening torque 0.6 Nm self-locking
- Cable gland: M12
- Degree of protection: IP67 with connector inserted and locked (EN 60529)
- Temperature range: -40/+85 degrees

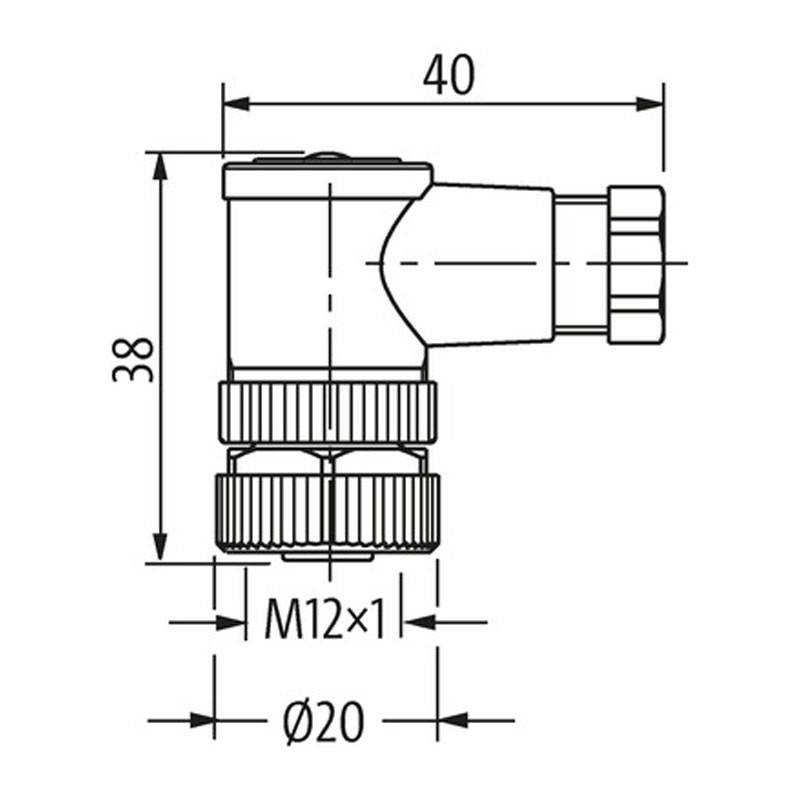

- Dimensions:35×35×20 mm (H×W×D)
Murr connector M12 female 90° wire 4P 4A 7000129810000000
€8.60
Tax included
€8.60
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 27
Pay in installments with Klarna
Features:
- 90° female
- M12
- 4 poles
- Screw terminals
- Clamping range (cable Ø): 4 ... 6 mm
- Resistance to aggressive agents must be tested for the individual application
- Plastic housings with good resistance against chemicals and oils
There are no reviews
Data sheet
- Type: Connectors
- Poles: 4P
- Degree of protection: IP67
- Amps: 4A
