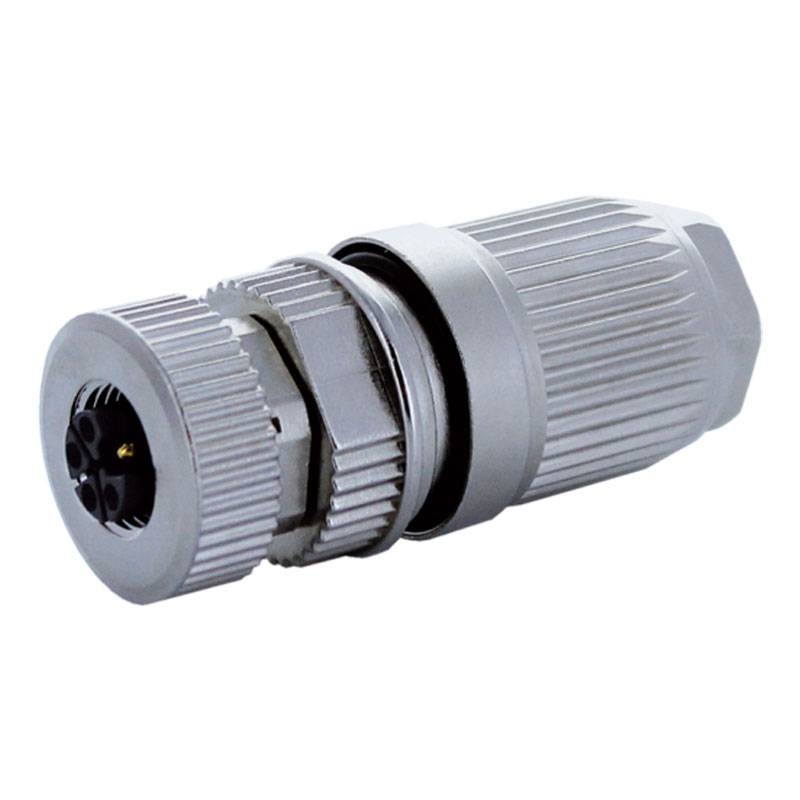

Murr M12 female L-code sensor connector to wire IDC 5P 12A 7000P44210000000

Murr Elektronik
MUE 7000P44210000000 4048879682558

Wired Murr L-code sensor connector with the following features:

  • Operating voltage max: 63V DC
  • Operating current per contact max: 12A
  • 5 poles
  • Connector locking: Thread (M12×1 mm) tightening torque 0.6 Nm) self-locking
  • Cable gland: M12 (SW17)
  • Max. cable cross-section: 1.5 mm²
  • Clamping range (cable Ø): 5.8 ... 13.5 mm
  • Degree of protection IP65 and IP67 with connector inserted and locked
Request info about this product

Murr M12 female L-code sensor connector to wire IDC 5P 12A 7000P44210000000

€37.39 Tax included
€37.39

Murr M12 female L-code sensor connector to wire IDC 5P 12A 7000P44210000000

€37.39
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 5
Altre disponibilità dal produttore
qty

Murr M12 female L-code sensor connector to wire IDC 5P 12A 7000P44210000000

€37.39

Buy it within and receive it from Monday, 29 September
Two-year warranty
Secure Payment
Easy return within 14 days
Purchase with tax breaks

Features:

  • Material: Die-cast zinc
  • Terminal material: Copper
  • Contact surface material: Au
  • Contact holder material: PA
  • Temperature range: -40/+85 degrees

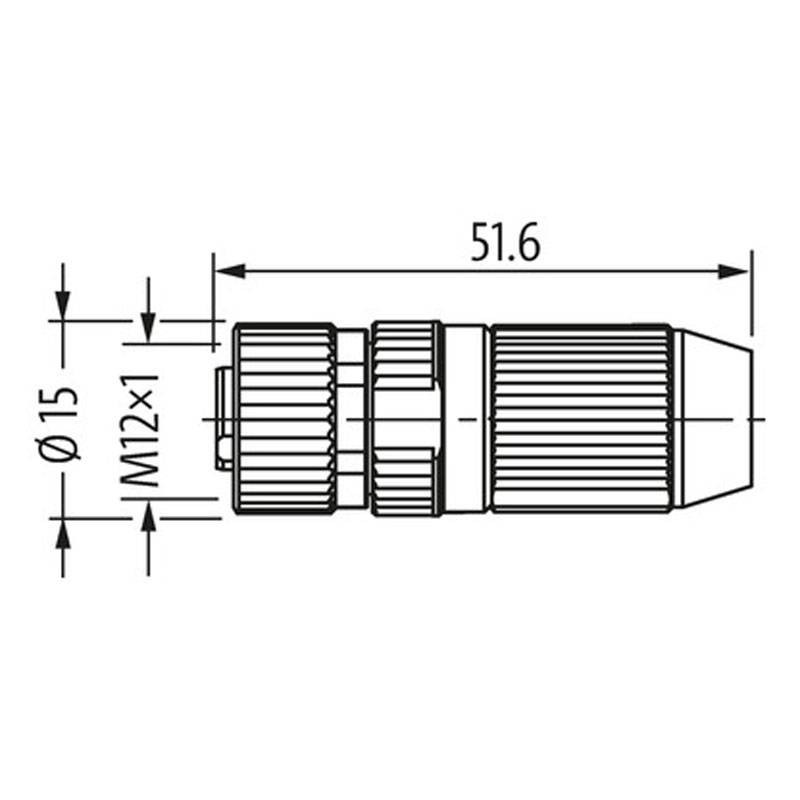

  • Dimensions: 53×25×25 mm (H×W×D)

Resistance to aggressive agents must be tested for the individual application.

Plastic housings with good resistance against chemicals and oils.

There are no reviews

Data sheet

Type:
Connectors
Poles:
5P
Degree of protection:
IP67
Amps:
12A
