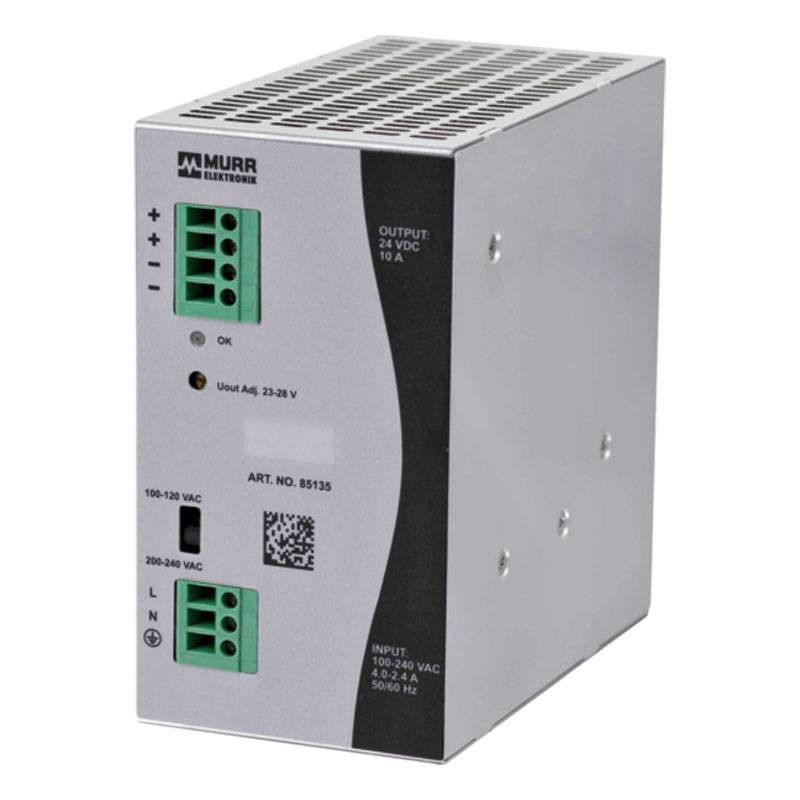

Murr ECO-RAIL-2 10A 24 V DC single-phase power supply 85135
MUE 85135
Murr ECO-RAIL-2 single-phase power supply with the following characteristics:
- Input voltage: 90 ... 132 V AC/173 ...264 V AC
- Output voltage: 24 V DC ±1%; 23 ... 28 V adjustable
- Output current: 10 A (+40 °C); 7.5 A (+55 °C)
- Frequency: 50 to 60 Hz
- Input fuse (internal): 5 A (T)
Murr ECO-RAIL-2 10A 24 V DC single-phase power supply 85135
€115.08
Tax included
€115.08
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Features:
- Mounting type: pluggable onto DIN rail TH35 (EN 60715).
- Temperature range: 0 - +40 °C, +55 °C derating (storage temp -20 - +85 °C)
- Relative humidity: 20 - 90%, non-condensing
- Degree of protection: IP20
- Efficiency: 86% (115 V AC) - 87% (230 V AC
- Connection: Screw terminals
- Dimensions: 125×68×125 mm (H×W×D)
Output:
- Output voltage: 24 V DC ±1%; 23 ... 28 V adjustable
- LED indicator (green) for output voltage
- Output current: 10 A (+40 °C); 7.5 A (+55 °C))
- Hold time min. 12 ms (115 V AC); min. 30 ms (230 V AC)
- Residual ripple max: 10 mV eff/rms
- Peak max: 50 mV ss/pp
- Protective device protected against short circuit and overload
- Parallel/series use no/yes (max. 2 units)
Input:
- Input voltage: 90...132 V AC/173...264 V AC
- Input current: 4.3 A (100 V AC); 2.1 A (240 V AC)
- Peak turn-on current after 1 ms max. 18 A (230 V AC)
- Frequency: 50 to 60 Hz
- Input fuse (internal) 5 A (T)
There are no reviews
Data sheet
- Type: Power supplies
- Voltage: 24V
- Degree of protection: IP20
- Amps: 10A
- Connection: Single-phase
