Dehn Space-saving universal combined arrester patch class EA 929161
DEH 929161
4013364472921

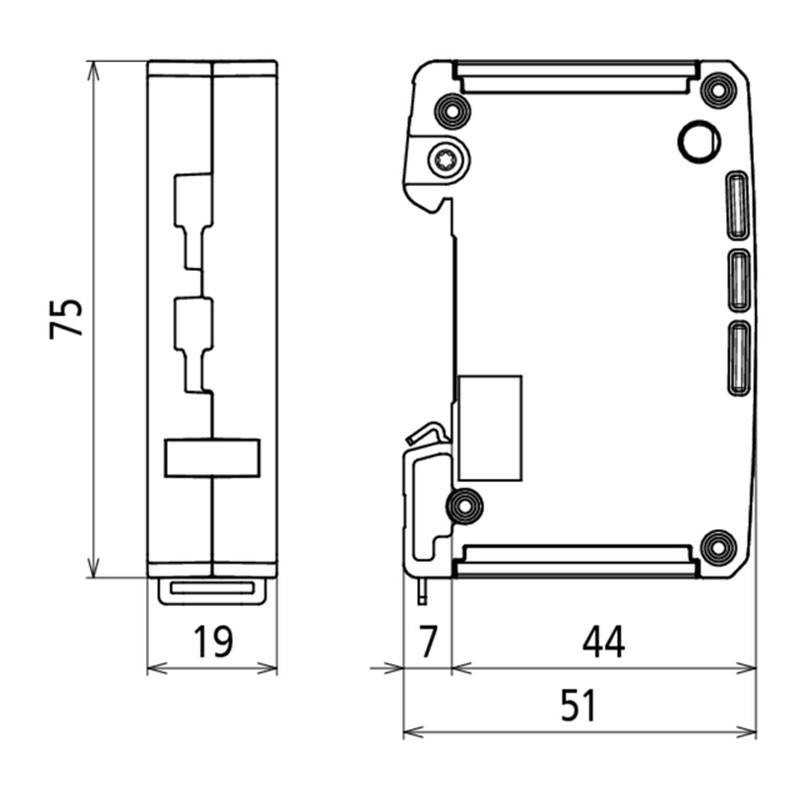

Space-saving universal Dehn patch class EA universal combined arrester with 19 mm installation width and RJ45 connection technology with status indicator for easy maintenance.
Protection of applications in structured cabling according to class EA up to 500 Mhz, e.g., pathcords for Ethernet, data distributor, digital CCTV camera systems, Power over Ethernet (IEEE 802.3 compliant up to 4PPoE) and general Ethernet-based interfaces.

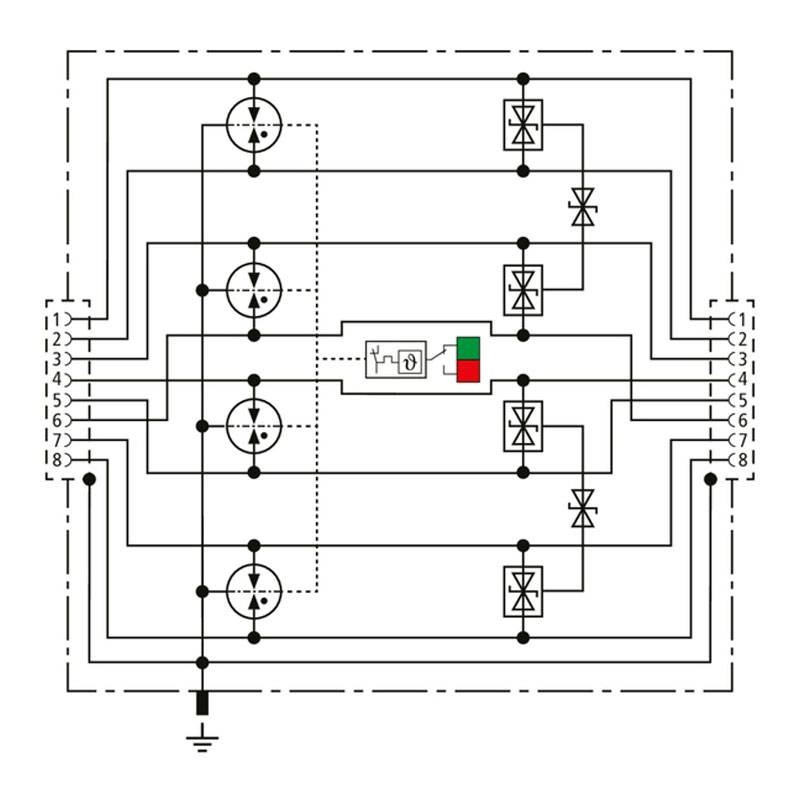

Protection of all twisted pairs by powerful gas spark gaps and protection diodes between signal conductors and between twisted pairs.
Dehn Space-saving universal combined arrester patch class EA 929161
€197.05
Tax included
€197.05
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 10
Pay in installments with Klarna

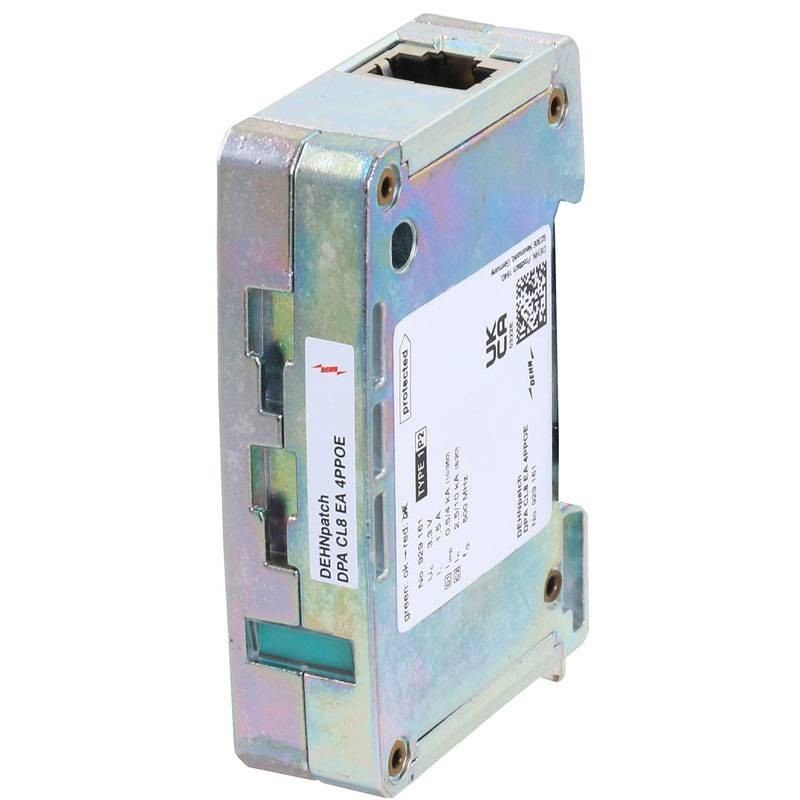

Adapter in fully shielded version with RJ45 connection sockets for DIN rail mounting. With additional housing-side screw connection for an optional ground connection.
Features:
- SPD Class Type 1
- Impulse category D1, C1, C2, C3
- Rated voltage (UN) 3.3 V
- Maximum continuous DC voltage (Uc) 3.3 V
- Maximum continuous DC torque-to-torque (PoE) voltage (Uc) 58 V
- Rated current (IL) 1.5 A
- D1 Lightning impulse current (10/350 µs) per wire (Iimp) 0.5 kA
- C2 Rated impulse discharge current (8/20 µs) wire-to-wire (In) 150 A
- C2 Rated impulse discharge current (8/20 µs) wire-to-wire (In) 2.5 kA
- C2 Rated impulse discharge current (8/20 µs) total (In) 10 kA
- C2 Rated impulse discharge current (8/20 µs) wire-to-wire (PoE) (In) 150 A
- Wire-to-wire protection level with In C2 (UP) ? 100 V
- Wire-to-GP protection level with In C2 (UP) ? 600 V
- Pair-to-pair protection level with In C2 (PoE) (UP) ? 100 V
- Wire-to-wire protection level with 1 kV/µs C3 (UP) ? 140 V
- Wire-to-GP protection level with 1 kV/µs C3 (UP) ? 500 V
- Pair-to-pair protection level with 1 kV/µs C3 (PoE) (UP) ? 170 V
- Frequency limit (fG) 500 MHz
- Wire-to-wire capacitance (C) ? 15 pF
- Wire-to-GP capacitance (C) ? 40 pF
- Operating temperature (TU) -40 °C ... +80 °C
- Degree of protection IP 20
- Mounting on 35 mm profile rail according to EN 60715
- Input/output connection RJ45 socket / RJ45 outlet
- Occupancy 1/2, 3/6, 4/5, 7/8
- Grounding via 35 mm profile rail according to EN 60715
- Enclosure material Zamak
- Color non-galvanized
- Reference standards for testing IEC 61643-21 / EN 61643-21
- Approvals GHMT, UL
- Weight 180 grams
There are no reviews
Data sheet
- Type: Arresters
