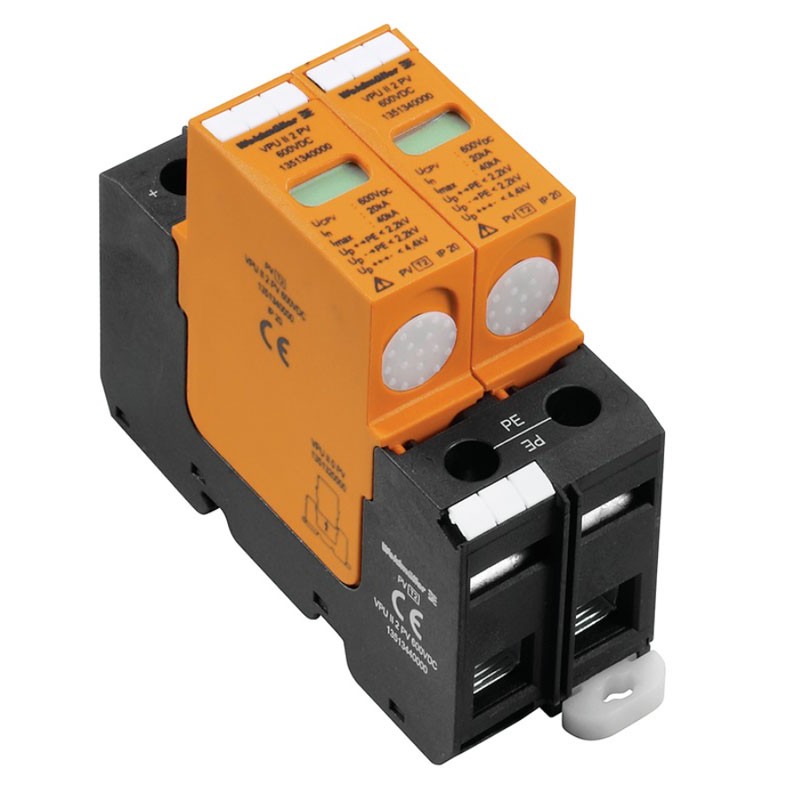

Weidmuller surge arrester 600VDC discharge 25KA 1351340000
WEI 1351340000
4050118158731
Weidmuller overvoltage arrester with the following features:
-
Nominal voltage (DC) 600 V
-
Max. permanent DC voltage 600 V
-
DC voltage type
-
Type SPD T2
-
Number of poles 2
-
Response time ≤ 25 ns
-
Signal contact No
-
Leakage current in Un 30 µA
-
Discharge current In (8/20 µs) wire-PE 20 kA
-
Discharge current max. (8/20 µs) 40 kA
Weidmuller surge arrester 600VDC discharge 25KA 1351340000
€52.27
Tax included
€52.27
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 37
Pay in installments with Klarna
Features:
- Weidmuller series
- Operating altitude≤ 2000 m
- Flammability class UL 94V-0
- Colours black, orange
- Form Component housings; 2 TE, Insta IP20
- Degree of protection IP20
- Guide rail TS 35
- Visual operating indicator green = OK, red = arrester defective - replace
- Version without remote signalling contact
- Overvoltage class III
- Degree of purity 2
- Storage temperature -40 °C...80 °C
- Operating temperature -40 °C...70 °C
Dimensions:
- Depth 69 mm
- Depth (inch) 2.717 inch
- Vertical position 94 mm
- Height (inch) 3.701 inch
- Width 35.6 mm
- Width (inch) 1.402 inch
- Fixing height 75 mm
- Net weight 290 gr
Connection data
- Connection type Screw connection
- Stripping length, sizing connection 15 mm
- Tightening torque, min. 2 Nm
- Tightening torque, max. 3 Nm
- Clamping range, dimensioning connection 16 mm² Cross-sectional area, min. 1.5 mm².
- Cross section range, min. 1.5 mm²
- Cross section range, max. 35 mm²
- Cross section of cable, rigid, min. 1.5 mm²
- Cross section of cable, rigid, max. 16 mm²
- Cross section of cable, flexible, min. 1.5 mm²
- Cross section of cable, flexible, max. 25 mm²
- Cross-section of cable, flexible, AEH (DIN 46228-1), min. 1.5 mm² Cross-section of cable, flexible, AEH (DIN 46228-1), min. 1.5 mm²
- Cable cross section, flexible, AEH (DIN 46228-1), max. 50 mm²
- Cable cross section, semi-rigid, min. 1.5 mm²
- Cross section cable, semi-rigid, max. 50 mm²
Technical data PV systems
- Operating height in earthed PV system ≤ 2000 m
- Operating height in ungrounded PV system ≤ 2000 m
- Requirement class Type II
- Short-circuit current ISCPV 200 A
- Discharge current In (8/20 µs) 12,5 kA
- Discharge current max. (8/20 µs) 40 kA
- Total discharge current Itotal (8/20µs) 40 kA
- Protection level Up (+/-) ≤ 4,4 kV
- Protection level Up (+/PE) ≤ 2,2 kV
- Protection level up (-/PE) ≤ 2,2 kV
- Standards EN 50539-11
- Requirements and demands EN 50539-11
- Max. operating voltage DC UCPV-Modus +/- , -/PE , +/PE 600 V DC
- PV system voltage, max. UCPV 600 V
There are no reviews
Data sheet
- Type: Arresters
