Submersible motor DAB 4OL 1.5 KW 4
DAB 60168919

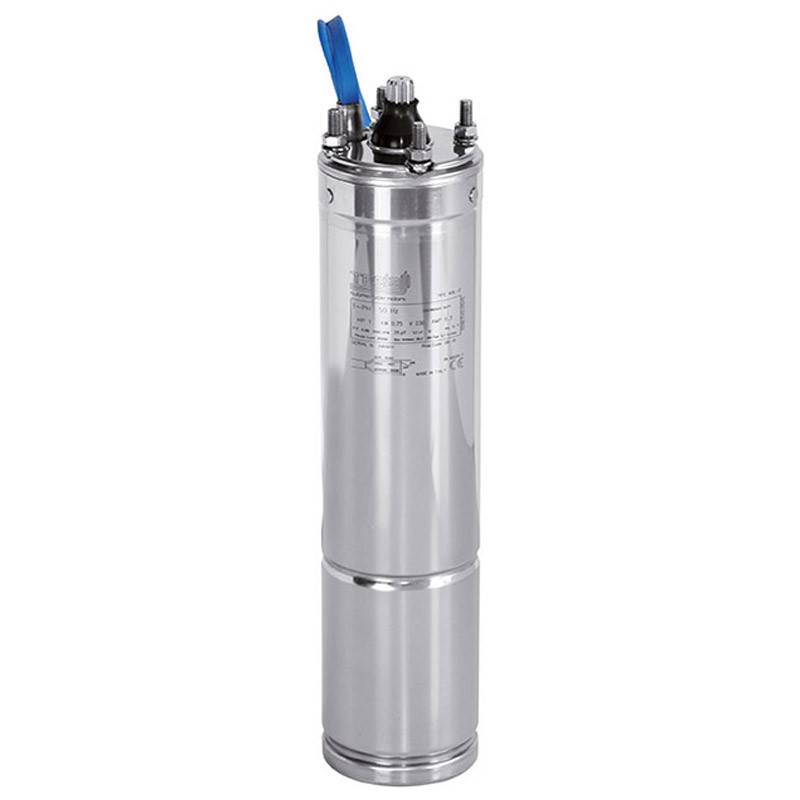

Submersible motor DAB 4OL 1.5 kW 4" single-Phase 230V type asynchronous, two poles, rewindable, built in stainless steel AISI 304 for the parts in contact with the water. To add Submersible Pump, DAB 4" S4 (see accessories).
Submersible motor DAB 4OL 1.5 KW 4
€242.62
Tax included
€242.62
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 15
Pay in installments with Klarna
Frequently bought together
The cooling and the lubrication of the ball bearings is ensured by a special liquid FDA approved. The stator is inserted in a sleeve in stainless steel AISI 304L is attached via steel pins to the upper support of the motor. The cable connector is removable to ensure quick and simple maintenance operations.
The cable is certified ACS, WRAS and KTW. The engine is suitable for use with variable speed drive (30 Hz-50/60 Hz). For the single-phase version the capacitor and the amperometric protection with manual reset are placed in the control cabinet can be supplied separately; for the three-phase version, protection must be ensured by the user.
Features:
- Flanging: NEMA 4
- Class disolamento: F
- Degree of protection: IP68
- Speed of the cooling flow: min. 0.3 m/s 35° C
- Voltage tolerance: + 6% / -10%
- N°maximum starts: 20/h
- Max depth financial year: 250 m
- Power 1.5 kW/2hp
- Power supply 50Hz 230V
- In 10.8 To
- The current start/nominal Current 3,2
- Torque start/nominal Torque 0,43
- Absorbed power: 2160W
- Rpm - R. p.m 2800
- yield 69%
- Cable cross section 4x1,5mmq
- Cable length 1.7 metres.
There are no reviews
Data sheet
- Type: Submersible motors
- Model: Single-phase
