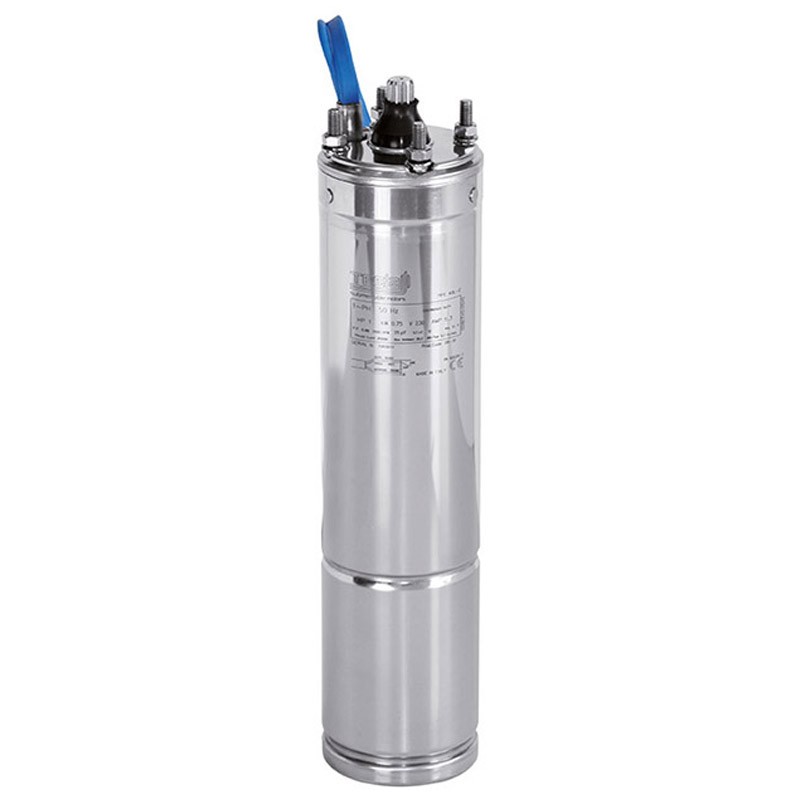

Submersible motor DAB 4OL 3.0 KW 4" three Phase 400V 60167644
DAB 60167644
Submersible motor DAB 4OL 3.0 kW 4" three Phase 400V type asynchronous, two poles, rewindable, built in stainless steel AISI 304 for the parts in contact with the water.
Submersible motor DAB 4OL 3.0 KW 4" three Phase 400V 60167644
€393.07
Tax included
€393.07
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
Pay in installments with Klarna
The cooling and the lubrication of the ball bearings is ensured by a special liquid FDA approved. The stator is inserted in a sleeve in stainless steel AISI 304L is attached via steel pins to the upper support of the motor. The cable connector is removable to ensure quick and simple maintenance operations.
The cable is certified ACS, WRAS and KTW. The engine is suitable for use with variable speed drive (30 Hz-50/60 Hz). For the single-phase version the capacitor and the amperometric protection with manual reset are placed in the control cabinet can be supplied separately; also available is the version 4OLTW with the capacitor including the inside of the engine. For the three-phase version, protection must be ensured by the user.
Features:
- Flanging: NEMA 4
- Class disolamento: F
- Degree of protection: IP68
- Speed of the cooling flow: min. 0.3 m/s 35° C
- Voltage tolerance: + 6% / -10%
- N°maximum starts: 20/h
- Max depth financial year: 250 m
- Power 3.0 kW/4hp
- Power supply 50Hz 400V
- In The 7.9 To
- The current start/nominal Current of 5.7
- Torque start/nominal Torque of 3.3
- Power consumption 4000W
- Rpm - R. p.m 2830
- Length 458mm
- efficiency 75%
- Cable cross section 4x1,5mmq
- Cable length 2.7 meters.
There are no reviews
Data sheet
- Type: Submersible motors
- Model: Three-phase
