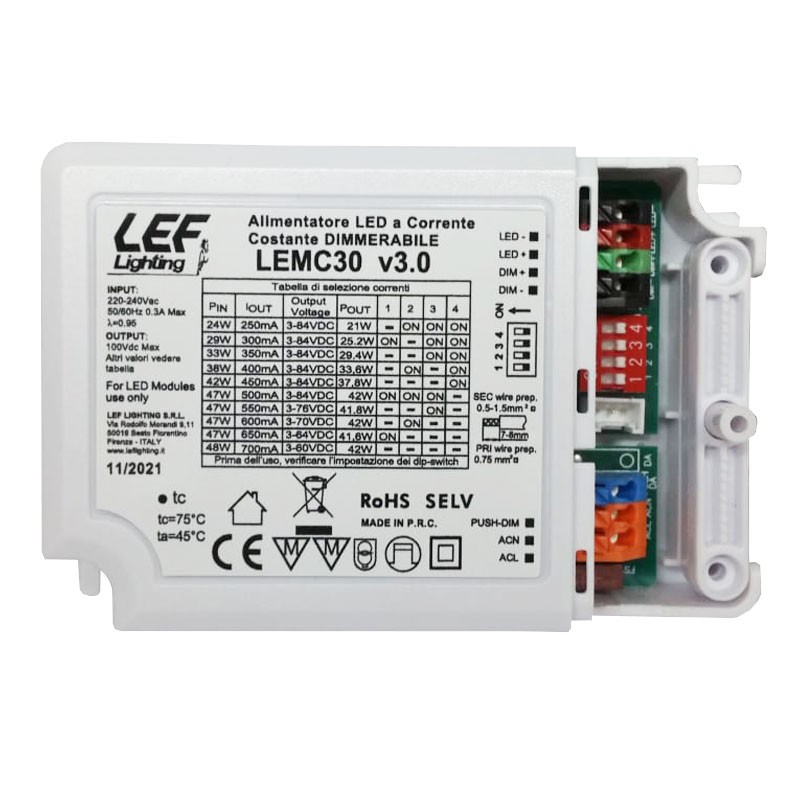

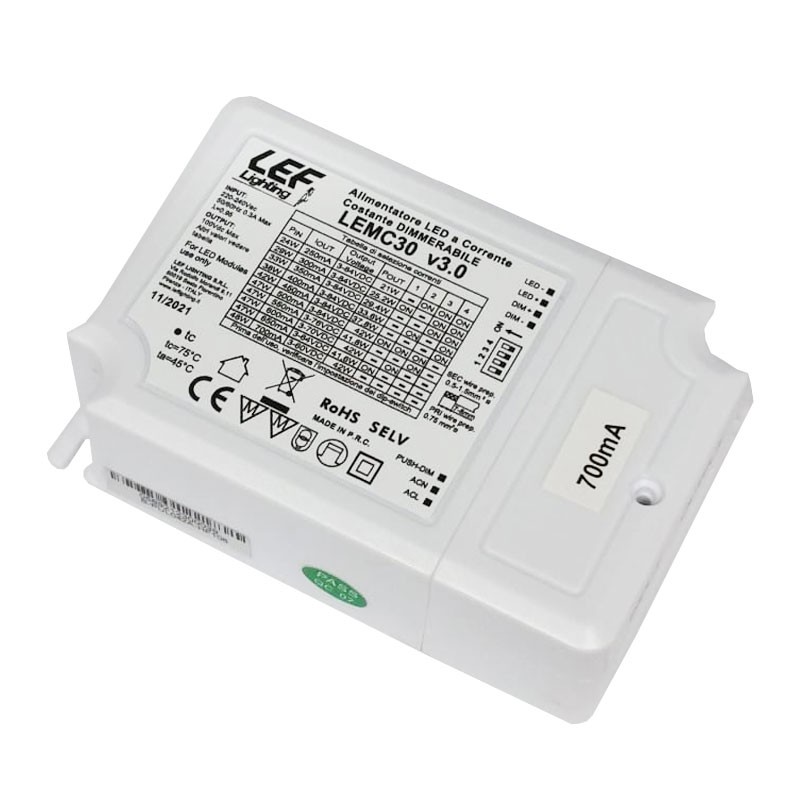

LEF 21-42W 250-700MA multi-current LED power supply unit dimmable LEMC30D
LEF LEMC30D
8054521530210
LEF multicurrent LED power supply:
- 21 to 42W output power
- Output current from 250-700mA
- Dimmable
- Mains frequency 50/60Hz
- PUSH DALI 1-10V POT470K control
- Output voltage 3-84VDC to 3-60VDC
LEF 21-42W 250-700MA multi-current LED power supply unit dimmable LEMC30D
€51.06
Tax included
€51.06
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
Pay in installments with Klarna
Features:
- Input voltage 220-240Vac
- Input frequency 50/60Hz
- Constant output current 250÷700mA (settable via micro-switches)
- Factory setting: 700mA
- Brightness adjustment via: - button (PUSH 230Vac) - DALI signal - 1-10V signal -potentiometer 470KOhm
- "LEVEL MEMORY" and "STATUS MEMORY" function (The power supply after a power failure turns back on to the state it was left in previously)
- Synchronization of multiple power supplies via wiring (max 10 SLAVE)
- Open circuit protection (OCP)
- Over-temperature protection (OTP)
- Short circuit protection (SCP)
- Power factor factor (PFC) 0.95
- Ambient operating temperature Ta -10°C/+45°C
- Maximum temperature at point Tc 75°C
- Plastic enclosure
- Power supply unit for independent use
- Electrical class of protection II
- Degree of protection IP40
There are no reviews
Data sheet
- Type: Power supplies
- Voltage: 3/84V-3/60V
- Shape: Rectangular
- Degree of protection: IP40
- Watts: 10 to 50W
- Dimmable: Si
