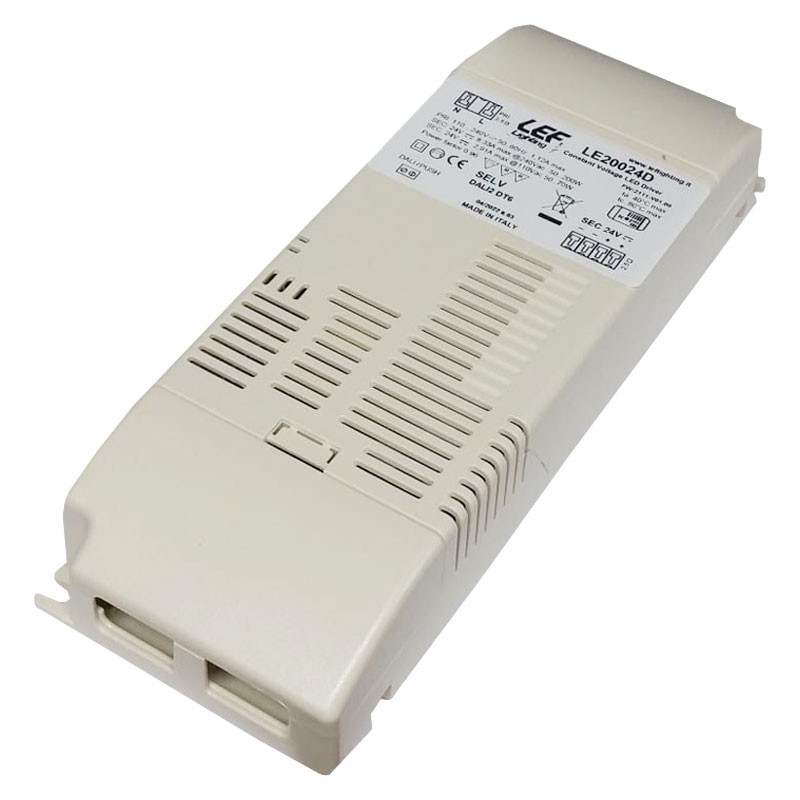

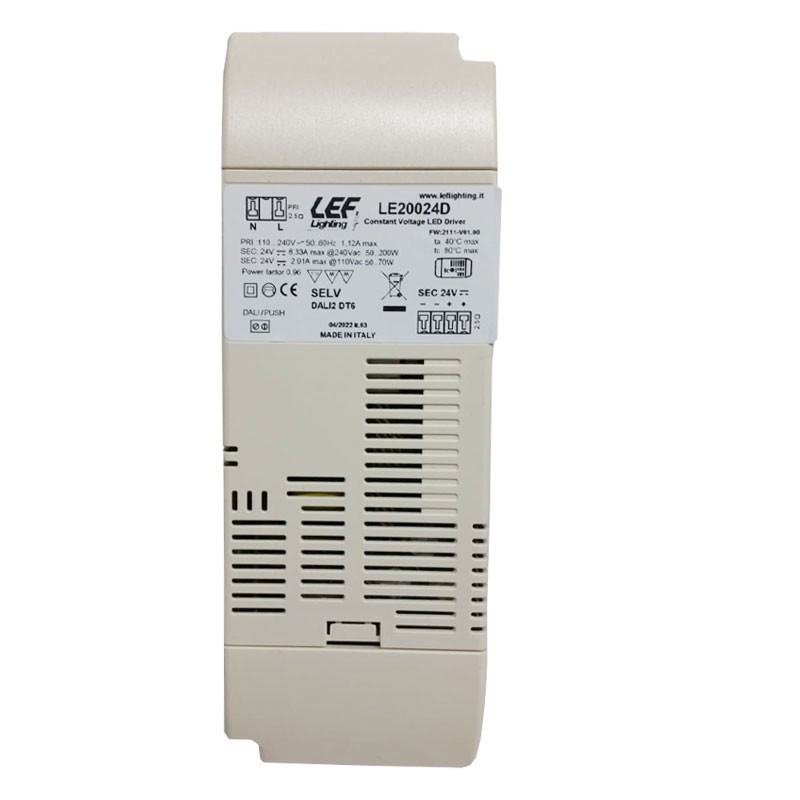

LEF LED power supply unit 200W 24V push-button control and DALI signal LE20024D
LEF LE20024D
8054521535048
Power supply for LED LEF 200W 24V with push-button control and dimmable DALI signal:
- 24V constant output voltage
- Input voltage 110-240 VAC
- Mains frequency 50/60 Hz
- Output power 70W (110V) - 200W (230V)
- PUSH | DALI control
- Output voltage 2910 mA (110V) - 8330 mA (230V)
LEF LED power supply unit 200W 24V push-button control and DALI signal LE20024D
€90.86
Tax included
€90.86
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 23
Pay in installments with Klarna
Features:
Construction Features
- Plastic enclosure
- Power supply unit for independent use
- Electrical protection class II
- Degree of protection IP20
Specifications:
- Input voltage 110-240Vac
- Input frequency 50÷60Hz
- Constant output voltage 24Vdc
- Brightness adjustment by: - push button (PUSH 230Vac) - DALI signal
- "LEVEL MEMORY" and "STATUS MEMORY" function.
- Synchronization of multiple power supplies via wiring (max 10 SLAVE)
- Open circuit protection (OCP)
- Over-temperature protection (OTP)
- Short circuit protection (SCP)
- Power factor factor (PFC) 0.96
- Ambient operating temperature Ta -10°C /+40°C
- Maximum temperature at point Tc 80°C
There are no reviews
Data sheet
- Type: Power supplies
- Voltage: 24V
- Shape: Rectangular
- Degree of protection: IP20
- Watts: From 101 to 200W
- Dimmable: Si
