LEF LED strip power supply 100W 24VDC push button and DALI signal IP20 LE10024DP
LEF LE10024DP
8054521530050
Power supply for LEF constant voltage (CV) dimmable LED strip with push-button control and DALI signal with the following characteristics:
- Input voltage: 110-240Vac
- Constant output voltage: 24Vdc
- 110V output power: 60W
- 230V output power: 100W
- Output current 110V: 2500mA
- 230V output current: 4160 mA
- Input frequency: 50/60Hz
- Control: PUSH - DALI - 0-10V - 1-10V - POT47k
LEF LED strip power supply 100W 24VDC push button and DALI signal IP20 LE10024DP
€73.46
Tax included
€73.46
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 16
: 1
Features:
- Plastic container
- Power supply unit for independent use
- Electrical protection class II
- Degree of protection IP20

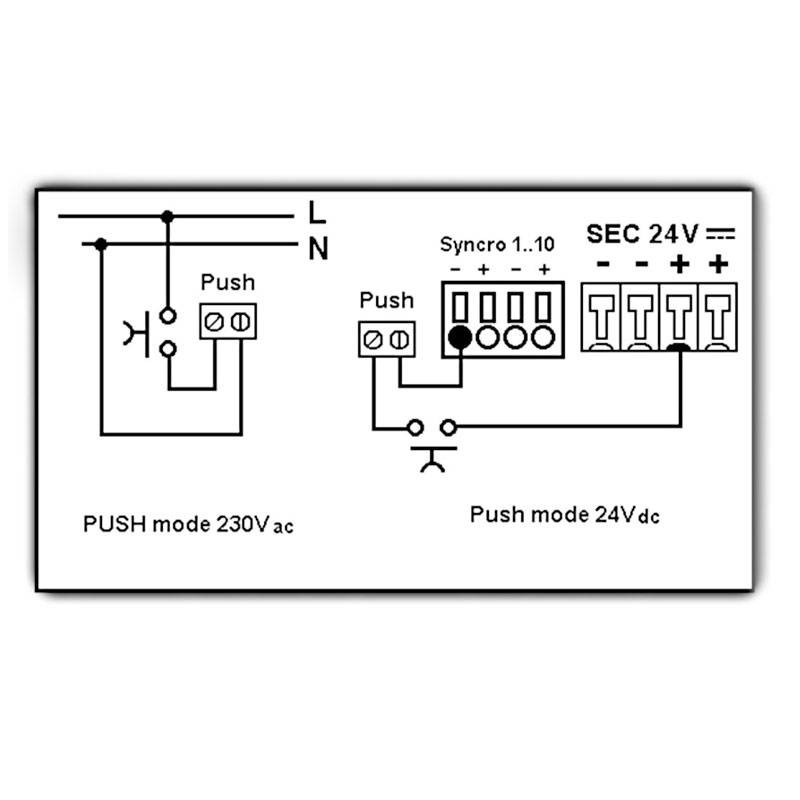

- Brightness adjustment via: push button (PUSH 230Vac), push button (PUSH 24Vdc), DALI signal, 0-10V signal, 1-10V signal, 47Kohm potentiometer
- Synchronization of multiple power supplies via wiring (max 10)
- Energy Efficiency: 91%.
- Open circuit protection (OCP)
- Over temperature protection (OTP)
- Short circuit protection (SCP)
- Power Factor Factor (PFC) 0.98
- Ambient operating temperature Ta -10°C ÷ +40°C
- Maximum temperature at point Tc: -70°C
There are no reviews
Data sheet
- Type:
- Power supplies
- Voltage:
- 24V
- Shape:
- Rectangular
- Degree of protection:
- IP20
- Watts:
- 51 to 100W
- Dimmable:
- Si
