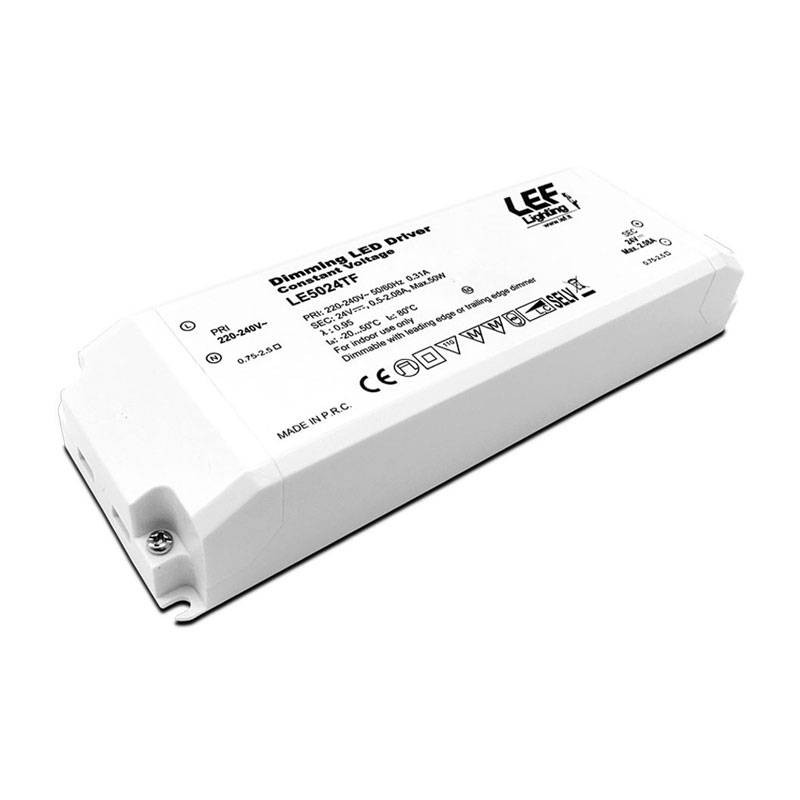

LEF LED Strip Power Supply 50W 24VDC Dimmable Phase Cut IP20 LE5024TF
LEF LE5024TF
8054521530500
Power supply for LEF constant voltage (CV) dimmable Phase Cut LED strips with the following characteristics:
- Input voltage: 220-240Vac
- Constant output voltage: 24Vdc
- Output power (min and max): 12-50W
- Output current (min and max): 500-2080mA
- Control: TRIAC-IGBT
- Mains frequency: 50/60 Hz
- Degree of protection: IP20
Power supply not suitable for no-load operation.
LEF LED Strip Power Supply 50W 24VDC Dimmable Phase Cut IP20 LE5024TF
€34.91
Tax included
€34.91
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
Pay in installments with Klarna
Features:
- Plastic container
- Power supply unit for independent use
- Electrical protection class II
- Degree of protection IP20

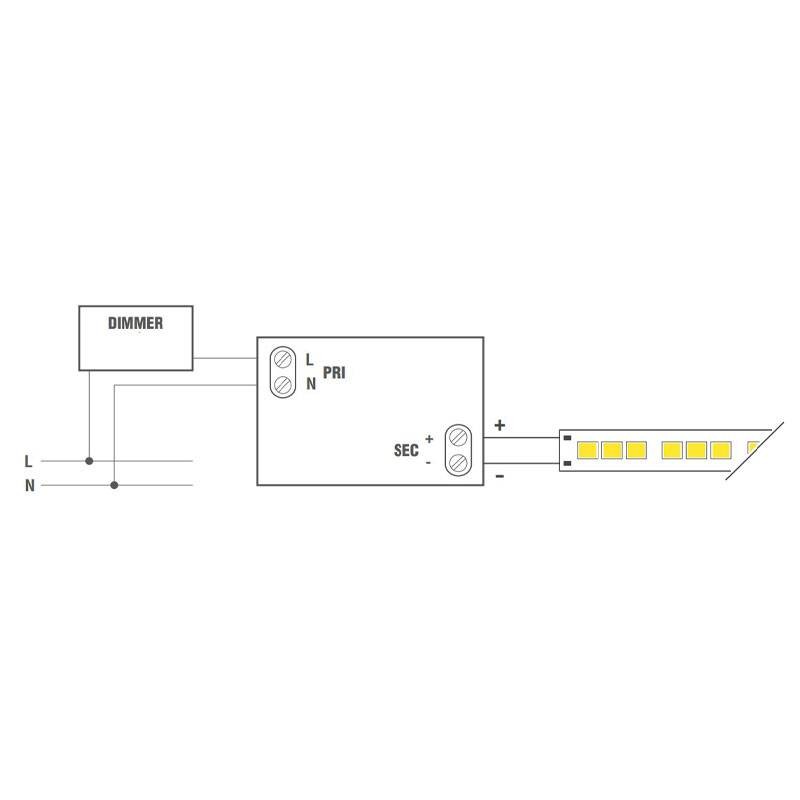

- Dimmable at Phase Cut with modes: TRIAC Leading -Edge, IGBT Trailing-Edge
- Energy efficiency: 85%.
- Open Circuit Protection (OCP)
- Over-Temperature Protection (OTP)
- Overload protection (OLP)
- Short circuit protection (SCP)
- Power factor factor (PFC) 0.95
- Ambient operating temperature -20°C to +50°C
- Maximum temperature at Tc point 75°C
There are no reviews
Data sheet
- Type: Power supplies
- Voltage: 24V
- Shape: Rectangular
- Degree of protection: IP20
- Watts: 10 to 50W
- Dimmable: Si
