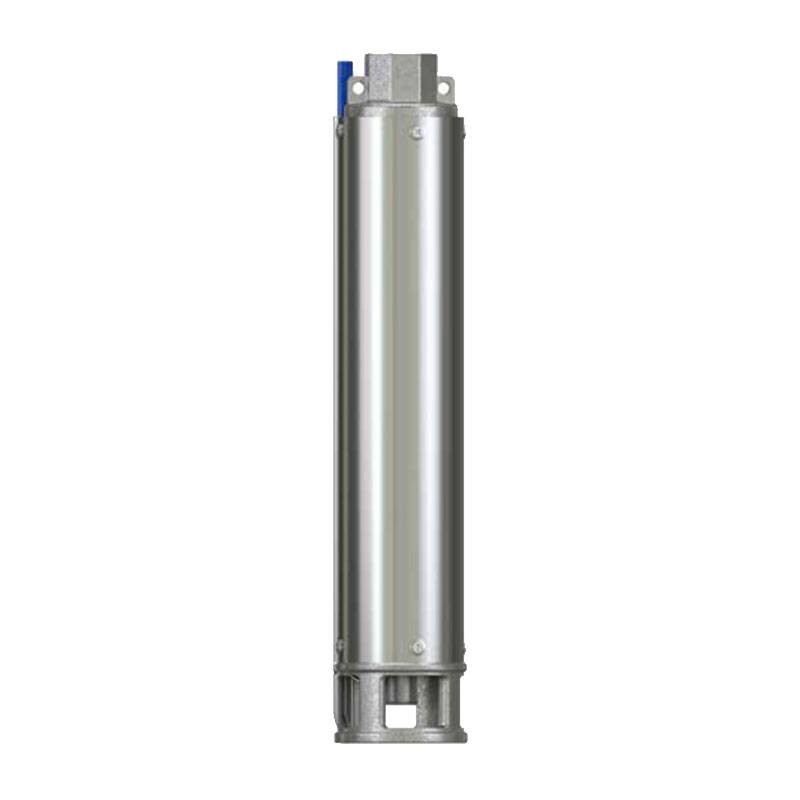

Dab Submersible Pump S4 6/29 3.0KW 4" 60190725
DAB 60190725
8059893195821
Dab S4 6/29 3.0KW 4" multi-impeller Submersible Pump for clean water, designed for pressurization, gardening and irrigation tasks, subsurface drawdown in domestic and residential, civil and commercial settings, and irrigation systems even in agriculture.
Only Pump to be added Submersible Motor DAB 4OL 3.0KW 4" Three-phase 400V (part number 60167644).
Dab Submersible Pump S4 6/29 3.0KW 4" 60190725
€387.65
Tax included
€387.65
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
Pay in installments with Klarna
Frequently bought together
S4 are 4-inch multi-impeller submersible clean water pumps designed for pressurization, gardening and irrigation tasks, subsurface withdrawal in domestic and residential, civil and commercial settings, and irrigation systems even in agriculture.
Pump construction features:
- Technopolymer impellers housed in the stage housing with stainless steel shim rings. Pump jacket, shaft, coupling with motor, integrated suction strainer and stainless steel cable cover. Suction and discharge supports made of microcast AISI 304 stainless steel. Removable technopolymer built-in check valve or stainless steel plate check valve (see material table). Technopolymer impellers designed to ensure high levels of efficiency in accordance with Directive 2009/125/EC (Eco design - ErP) with MEI index ? 0.4 for the entire range. ACS certified and undergoing WRAS and DM174 certification.
Features:
- Motor couplings and power supply 4OL T 3 x 230 V ~- 4OL T 3 x 400 V ~ - 4GG T 3 x 230 V ~ - 4GG T 3 x 400V
- Rated power 3kW/hp 4
- DNM connection 1" 1/4
- Dimensions diameter 99 mm
- Height 1664 mm
There are no reviews
Data sheet
- Type: Electric submersible pumps
