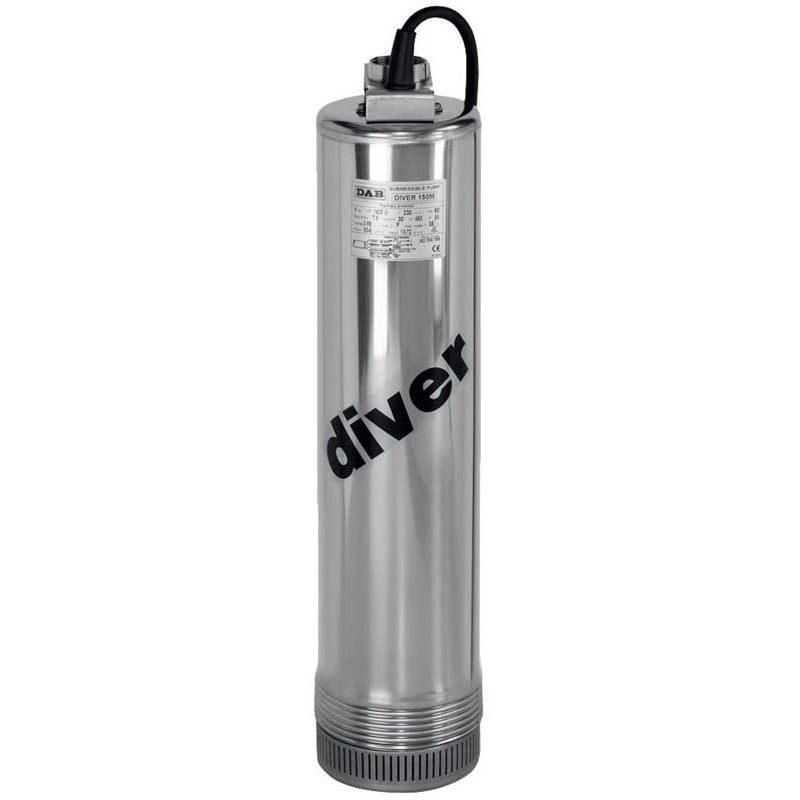

Multistage Submersible Electric Pump Dab Diver 75 M-NA 60121655
DAB 60121655
Dab Diver 75 M-NA Single-phase non-automaticsubmersible multistage electric pump without floatswitch:
- P2 Nominal 0.85 kW
- Power supply 1x230 V
- Current In 4.6
- Degree of protection: IP 68
- Insulation class: F
Power cable: H07RN-F removable, length 10 meters.
Multistage Submersible Electric Pump Dab Diver 75 M-NA 60121655
€317.17
Tax included
€317.17
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Characteristics:
- Pumped liquid: clean, no solid or abrasive bodies, non-aggressive
- Maximum immersion: 20 m
- Delivery port diameter: 1 1/4 GAS
- Feeding tolerance: +6% / -10%
- Maximum number of starts: 20/h
- Installation: in wells, tanks and cisterns, in vertical position
Applications:
- DIVER electric pumps are used in clear water lifting systems from wells, first collection tanks or cisterns, Roman wells or watercourses and are suitable for pressure water distribution in domestic systems, small agriculture, sprinkler irrigation of gardens and vegetable gardens. The particularly quiet pump used inside wells or tanks avoids all the problems associated with suction and priming.
Construction features:
- Multi-stage single-block submersible pump with the hydraulic part under the motor whose cooling is provided by the pumped liquid. Impellers and diffusers made of fiberglass-filled Noryl with stainless steel anti-wear shim ring. Outer jacket, stator jacket, upper head with sleeve and locking ring made of AISI 304 steel. Encapsulated stator. Cast iron supports. AISI 304 rotor shaft extension. Lip seal on motor side and silicon carbide/silicon carbide mechanical seal on pump side.
Motor construction features:
- Submersible two-pole asynchronous type constructed entirely of stainless steel, dry cooled from the outside by the pumped liquid
- Encapsulated stator made of AISI 304L
- Squirrel-cage rotor mounted on ball bearings, and oversized to ensure quietness, reliability and durability
- On request, the single-phase version is supplied with the CONTROL BOX
- User-operated protection for the three-phase version
- Automatic version with float switch available
- Available on request version with support base and side suction (DRY)
- Dimensions: 427 mm height - 127 mm diameter
- Weight 10 kg
There are no reviews
Data sheet
- Type: Electric submersible pumps
