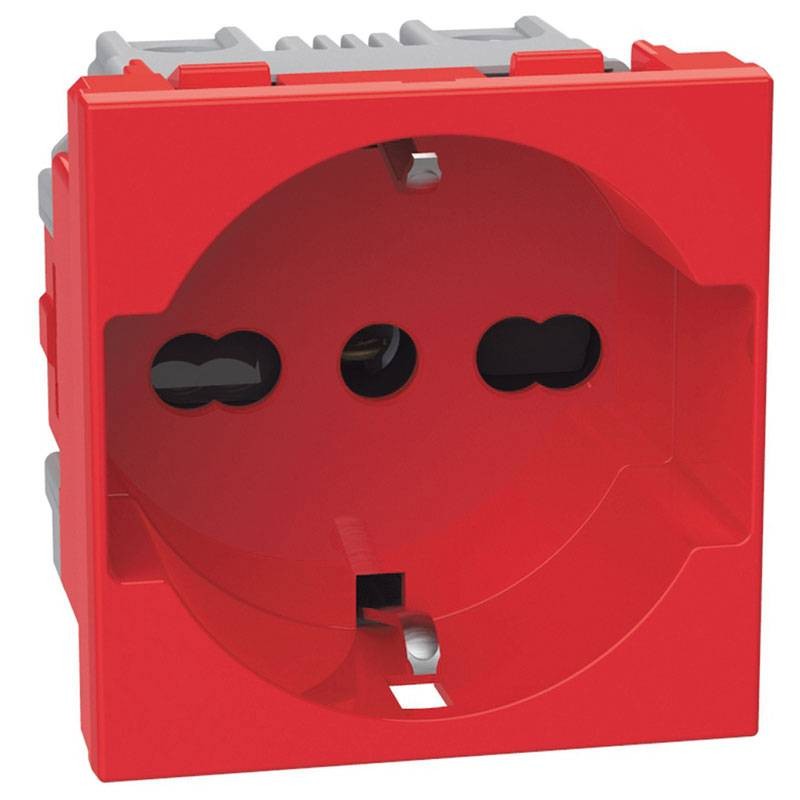

Bticino MATIXGO Standard Schuko Socket P40 2-Module red J4140A16R
BTI J4140A16R
8005543716519
Bticino MATIXGO Standard German Schuko Socket:
- Voltage 250Vac
- Current In 16A
- 2 modules
- Colour red
- Poles 2P+T
- 19 mm and 26 mm spacing in two-pole configuration
- Protected cavities
- Side ground contacts for German standard plugs
- Suitable for standard Italy 2 P and 2 P+T 10/16 A plugs, German standard 2 P+T 16 A plugs
To be mounted on frames J4702-J4703-J4704-J4707.
Frequently used for connections to outlets with uninterruptible power supplies/UPS.
Bticino MATIXGO Standard Schuko Socket P40 2-Module red J4140A16R
€7.47
Tax included
€7.47
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 805
Pay in installments with Klarna
Frequently bought together
The schuko electrical outlet also known as the German outlet allows any plug (small, large and schuko) to be plugged into it.
Features:
- Clamp type: screw
- Clamp capacity: 2 x 4 mm2
- Stripping length: 11 mm
- Compatible with flexible and rigid cables
- Penetration by solids/liquids: IP21D
- Impact proof: IK04
Materials:
- Case and cover : PC (polycarbonate)
- Halogen Free
- UV Resistant
- Self-extinguishing: 850°C/30s for insulating parts that hold live parts in place, 650°C/30s for other parts of insulating materials
- Storage temperature: -10° C to +70° C
- Operating temperature: -5° C to +35° C
There are no reviews
Data sheet
- Main Commands: Current Sockets
