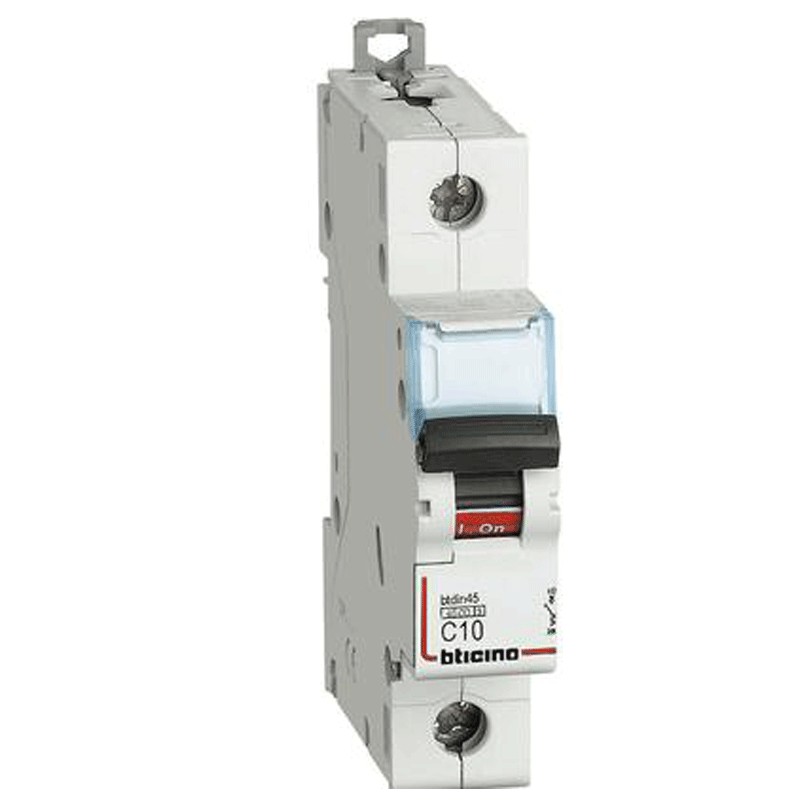

Bticino circuit breaker 1 pole 4,5 KA 10A FA81C10
BTI FA81C10
8005543471456
Bticino thermal-magnetic circuit breaker, 1 module, DIN connection, 1P pole, 10 amperes, breaking capacity 4.5 kA, voltage 230/400 Vac, curve C.
Bticino circuit breaker 1 pole 4,5 KA 10A FA81C10
€13.27
Tax included
€13.27
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 74
: 18
The C-curve can tolerate short-term overcurrents of up to five to ten times the rated current and is widely used in domestic installations.
A circuit breaker is a safety device that can automatically (i.e. without external intervention) interrupt the flow of electrical current in an electrical circuit in the event of an overcurrent.
Features:
- Bticino series
- Voltage 230/400 Vac
- Current In 10A
- Interrupting capacity Icn 4,5kA
- Tripping curve C
- 1 module
- 1P pole
- Degree of protection IP20
- Height 83 mm
- Width 17.7 mm
- Depth 76 mm
- Maximum cable cross-section 25/35 sq. mm
There are no reviews
Data sheet
- Voltage:
- 230/400VAC
- Modules:
- 1
- Poles:
- 1P
- Curve:
- C
- Power:
- 4.5KA
- Amps:
- 10A
- Circuit Protections:
- Circuit breakers
