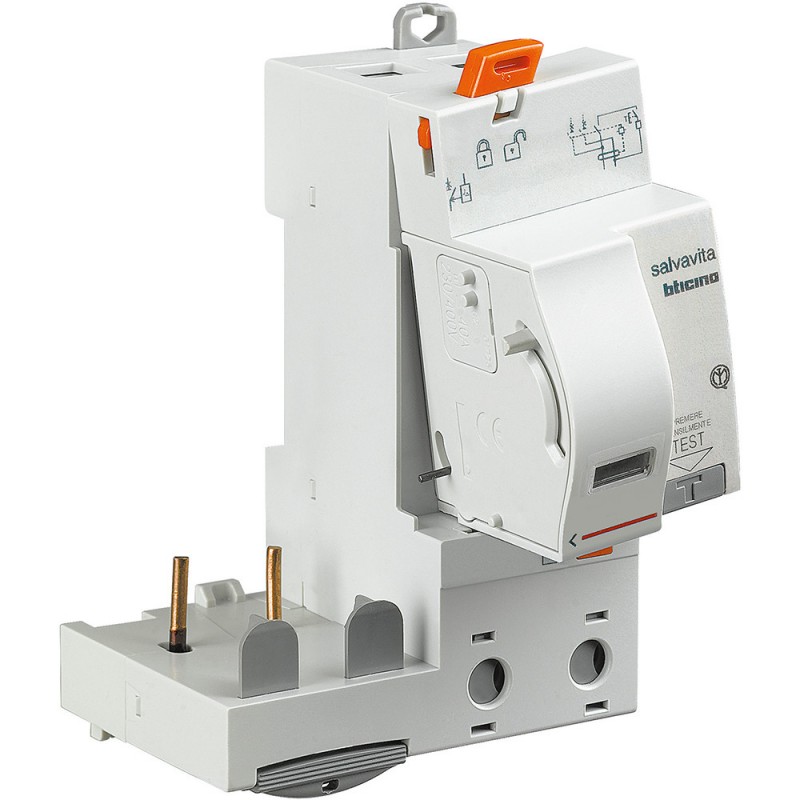

Bticino differential block 2P 32A AS 300MA G24AS32
BTI G24AS32
8005543462935
Differential block (circuit breaker) Bticino, with the following characteristics:
- 2 modules
- DIN connection (universal for any switchboard on the market)
- 2 poles
- 32 amperes
- Idn differential current 300mA
- Voltage 230/400 Vac
- AS differential type
Bticino differential block 2P 32A AS 300MA G24AS32
€191.34
Tax included
€191.34
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 15
: 1
Pay in installments with Klarna
The differential blocks are mechanically designed to prevent a wrong coupling between the block and the circuit breaker: the power of the block must always be equal or greater than that of the circuit breaker. The lateral plastic clamp allows a quicker assembly of the block on the circuit breaker and a push button prevents possible interventions.
It is used to protect human health in case of earth fault (electrical leakage) or phase-to-earth electrocution, thus providing protection also against macro electrical shock, both direct and indirect, on exposed persons.
The differential block type A-S: selective or delayed residual current devices: they operate with intentional delay (like type A).
Features:
- Bticino series
- Voltage 230/400Vac
- Current In 32A
- Current differential Idn 300mA
- AS differential type
- 2 modules
- 2 poles
- Degree of protection IP20
- Height 83 mm
- Width 35,6 mm
- Depth 76 mm
- Maximum cable section 25/35 mmq
Prezzo,servizio e competenza, negozio più che perfetto.
Prodotto conforme alle specifiche del produttore.
Data sheet
- Voltage: 230/400VAC
- Modules: 2
- Poles: 2P
- RCD Type: AS
- Differential current : 0.3A
- Amps: 32A
- Circuit Protections: Earth Leakage add-on Blocks
