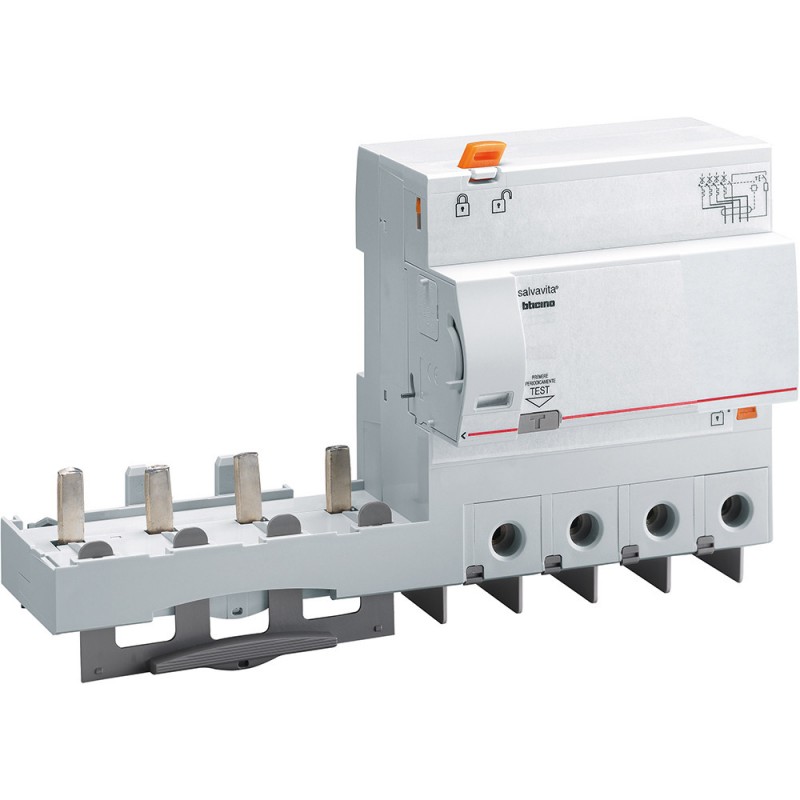

Bticino differential block 4P 125A 30MA AC G43XAC125
BTI G43XAC125
8005543414088
Differential block (circuit breaker) Bticino, with the following characteristics:
- 6 modules
- DIN connection (universal for any switchboard on the market)
- 4 poles
- 125 amperes
- Differential current Idn 30mA
- Voltage 400 Vac
- AC differential type
Bticino differential block 4P 125A 30MA AC G43XAC125
€258.23
Tax included
€258.23
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 12
The differential blocks are mechanically designed to prevent a wrong coupling between the block and the circuit breaker: the power of the block must always be equal or greater than that of the circuit breaker. The lateral plastic clamp allows a quicker assembly of the block on the circuit breaker and a push button prevents possible interventions.
It is used to protect human health in case of earth fault (electrical leakage) or phase-to-earth electrocution, thus providing protection also against macro electrical shock, both direct and indirect, on exposed persons.
The AC differential blockworks only with alternating current. Almost all civil installations fall into this typology.
Features:
- Bticino series
- Voltage 400Vac
- Current In 125A
- Differential current Idn 30mA
- AC differential type
- 6 modules
- 4 poles
- Degree of protection IP20
- Height 83 mm
- Width 107.2 mm
- Depth 76 mm
- Maximum cable section 50/70 mmq
There are no reviews
Data sheet
- Voltage:
- 400VAC
- Modules:
- 6
- Poles:
- 4P
- RCD Type:
- AC
- Differential current :
- 0.03A
- Amps:
- 125A
- Circuit Protections:
- Earth Leakage add-on Blocks
