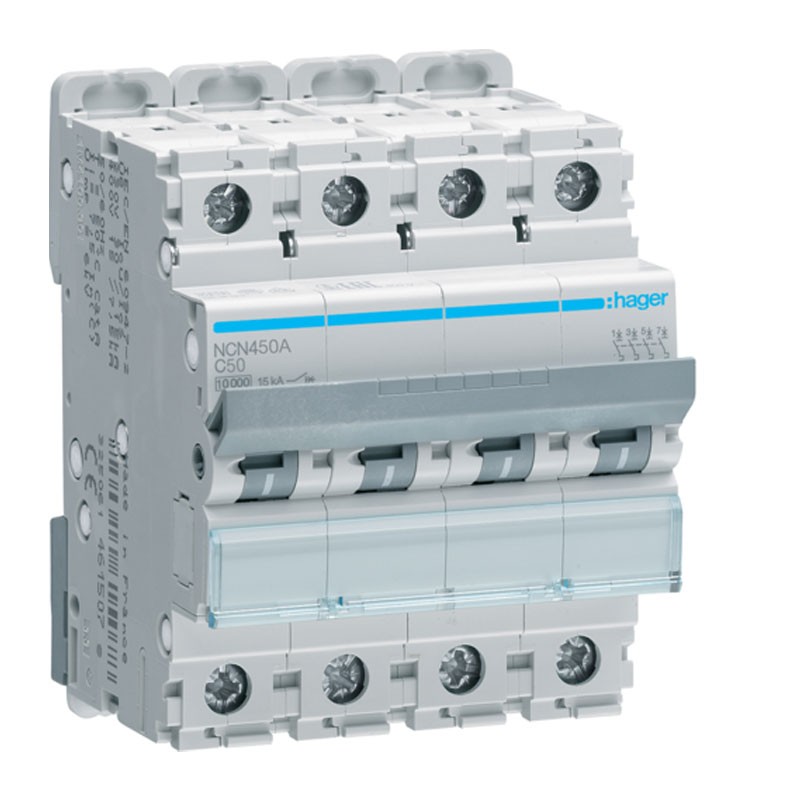

Hager 4P 50A 10KA C Magnetothermal Circuit Breaker 4 modules NCN450A
HAG NCN450A
3250614616020
Hager thermal-magnetic circuit breaker, with the following characteristics:
- Rated breaking capacity Icn AC according to IEC 60898-1 10 kA
- Rated operating voltage AC 400V
- AC supply voltage type
- Rated insulation voltage 500V
- Rated fault withstand current 6000V
- Minimum threshold voltage (Ue min) 12V
- Neutral position without neutral
- Number of protected poles 4
- Poles 4
- Rated current : 50 amperes
- DIN rail mounting mode
- Tripping curve : C
- Frequency: 50 to 60 Hz
Hager 4P 50A 10KA C Magnetothermal Circuit Breaker 4 modules NCN450A
€135.49
Tax included
€135.49
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 8
: 2
Curve C, trip threshold 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic installations.
A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.
Other technical characteristics:
- Maximum power dissipated per pole according to product standard 9W
- Total power dissipation 20.3W
- Power dissipated per pole 5.4W
- Degree of protection IP20
- Electrical life and number of cycles 4000
- Number of maneuvers (mechanical life) 20000
- Suitable for DIN rail mounting: yes
- High connection alignment for modular products aligned terminals
- Low connection alignment for modular products aligned terminals
- High connection type for modular products screw terminal
- Tightening torque 2.8Nm
- Low connection type for modular products Plastic
- Low connection type for modular products quickconnect clamp
- Top removal for modular fixtures: yes
- Bottom removal for modular products yes
- Suitable for flush mounting siCapacity downstream flex clamp. Condu. 1 / 25 mm²
- Downstream terminal capacity rigid cond. 1 / 35 mm²
- Input connection cross section 1 / 35 mm²
- Screw cap mor. cable - line mm2 (flex.) 1 / 25 mm²
- Delivery state downstream of cage terminal open
- Delivery state upstream of cage terminal open
- Accessory yes
- With transparent label holder yes
- Operating temperature -25...70 °C
- Pollution degree/IEC60664/IEC60947-2 2
- Energy limitation class I²t 3
- Altitude 2000m
- Storage/transport temperature -25/+80 °C
- Calibration temperature 50 °C
- Depth of installed product 70 mm
- Height of installed product 83 mm
- Width of installed product 70 mm
- With pole of Neutral sectioned: no
There are no reviews
Data sheet
- Voltage:
- 400VAC
- Modules:
- 4
- Poles:
- 4P
- Curve:
- C
- Power:
- 10KA
- RCD Type:
- AC
- Degree of protection:
- IP20
- Amps:
- 50A
- Circuit Protections:
- Circuit breakers
