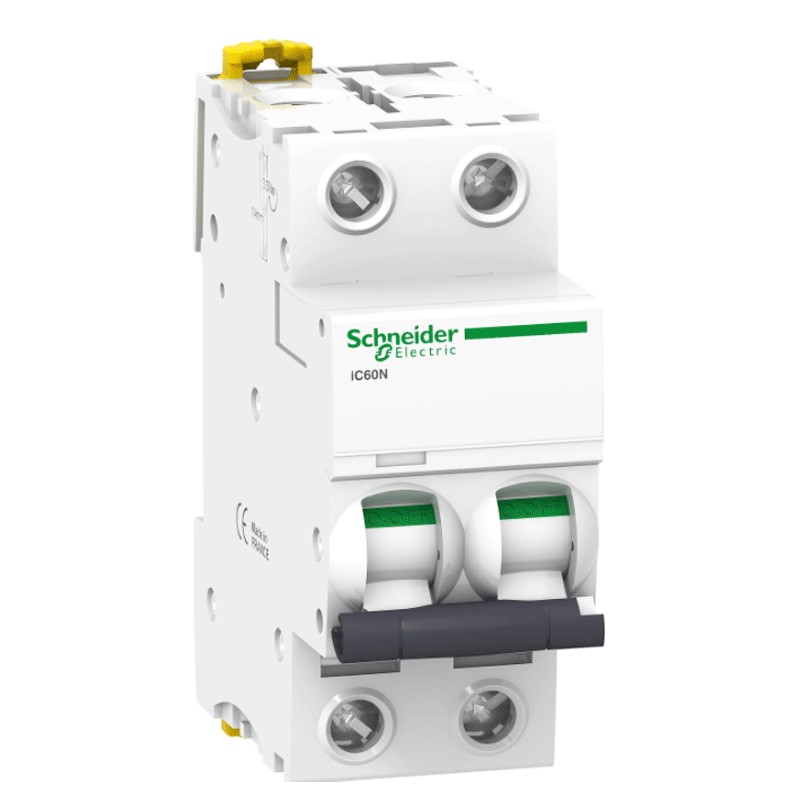

Circuit breaker-Schneider 2P 2A 6 C 2 modules A9F74202
SNR A9F74202
3606480080371
Circuit breaker-Schneider 2P 2A 6 C 2 modules A9F74202
Circuit breaker-Schneider 2P 2A 6 C 2 modules A9F74202
€76.64
Tax included
€76.64
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 153
: 4
Main features: Application switch: Distribution Range: Acti 9 Product or component: Breaker Product name: IC60 Device short name: iC60N Description of poles: 2P Number of poles-protected, 2 In nominal current: 2 A Network type: AC / DC Technology shutter: breaker Tripping curve: C breaking capacity: 50 kA Icu according to IEC 60947-2 - 220 ... 240 V AC 50/60 Hz / 50 kA Icu according to IEC 60947-2 - 380 ... 415 V AC 50/60 Hz / 6000 A ICN according to EN 60898-1 - 400 V AC 50/60 Hz / 50 kA Icu according to EN 60947-2 - 220 ... 240 V AC 50/60 Hz / 50 kA Icu according to EN 60947-2 - 380. ..415 VAC 50/60 Hz / 6000 a Icn according to IEC 60898-1 - 400 V AC 50/60 Hz / 25 kA Icu according to EN 60947-2 - 440 V AC 50/60 Hz / 25 kA Icu according to IEC 60947-2 - 440 V AC 50/60 Hz / 50 kA Icu according to IEC 60947-2 - 12 ... 133 V AC 50/60 Hz / 50 kA Icu according to EN 60947-2 - 12 ... 133 V AC 50/60 Hz / 10 kA Icu according to EN 60947-2 - 72 ... 125 v dc / 10 kA Icu according to IEC 60947-2 - 72 ... 125 V DC Job category: In conformity with the standard iec 60947-2 according TO IEC 60947-2 Suitability for isolation Yes in accordance with EN 60947-2 / IEC 60947-2 Yes below / Yes to EN 60898-1 / IEC 60898-1 Yes under Additional features: network frequency: 50/60 Hz magnetic trip maximum: 8 x In +/- 20% [Ics] assigned to service short-circuit breaking: A Icu 6000 x 100% according to EN 60898-1 - 400 V AC 50/60 Hz / 50% x 100 kA Icu according to EN 60947-2 - 220. ..240 V AC 50/60 Hz / 50% x 100 kA Icu according to IEC 60947-2 - 220 ... 240 V AC 50/60 Hz / 50% x 100 kA Icu according to EN 60947-2 - 380. ..415 V AC 50/60 Hz / 25% x 100 kA Icu according to EN 60947-2 - 440 V AC 50/60 Hz / 50% x 100 kA Icu according to IEC 60947-2 - 380 ... 415 V AC 50/60 Hz / 25% x 100 kA Icu according to IEC 60947-2 - 440 V AC 50/60 Hz / 50% x 100 kA Icu according to IEC 60947-2 - 12 ... 133 V AC 50/60 Hz / 50 kA x 100% Icu according to EN 60947-2 - 12 ... 133 V AC 50/60 Hz / a Icu 6000 x 100% to IEC 60898-1 - 400 V AC 50/60 Hz / 10 kA 100% x Icu according to IEC 60947-2 - 72 ... 125 V DC / 100% x 10 kA Icu according to EN 60947-2 - 72 ... 125 V DC by limiting class 3 according to EN 60898-1 / 3 according to IEC 60898-1 [Ui] rated insulation voltage 500 V AC 50/60 Hz according to IEC 60947-2 / 500 V AC 50/60 Hz according to EN 60947-2 [Uimp] shock resistance voltage assignéede: 6 kV according to EN 60947-2 / 6 kV according to IEC 60947-2 opening required: Yes Control type: For the pin Local reporting: indicator trigger Installation mode: Fixed Bracket mounting: DIN rail distribution compatibility block busbar comb: Is the top or the bottom 9 mm: 4 Height: 85mm Width: 36 mm Depth: 78.5 mm Product weight: 0.25 kg Color: White Mechanical life: 20000 cycle Electrical life: 10000 cycle Connection Mode: Terminal, normal, hard-wire the top or bottom (s) 1 ... 25 mm2 / terminal simple wire low, high, or flexible (s) 1 ... 16 mm2 Stripping length of the son: 14 mm up or down Tightening torque: 2 the top or bottom of Nm Differential protection: a separate block
There are no reviews
Data sheet
- Voltage:
- 400VAC
- Modules:
- 2
- Poles:
- 2P
- Curve:
- C
- Power:
- 6KA
- Amps:
- 2A
- Circuit Protections:
- Circuit breakers
