Siemens 2P 20A 10kA type C circuit breaker 2 modules 5SL42207
SIE 5SL42207
4001869181677
Siemens circuit breaker with the following characteristics:
- Isolation voltage (Ui) for multiphase operation with AC rated value: 440V
- Supply voltage with AC rated value: 400V
- Frequency value range of the supply voltage 50/60 Hz
- Usage voltage for multiphase operation with AC max. 440V, with DC rated value max. 72V
- Voltage type of the application voltage: AC
- Usage current: 20 amperes
- Breaking capacity 10kA
- 2 modules DIN connection (universal connection for any switchboard on the market)
- 2 poles
- Tripping curve C
Siemens 2P 20A 10kA type C circuit breaker 2 modules 5SL42207
€29.88
Tax included
€29.88
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 70
: 2
Curve C can tolerate short-term overcurrents of up to five to ten times the rated current and is widely used in domestic systems.
A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.
Features:
- Siemens series
- Suitability for use Residential construction/infrastructure
- Mechanical service life (switching cycles) / typ. 10.000
- Overvoltage category III
- Pollution degree 2
- Energy limitation class 3
- Degree of protection IP20, with conductors connected
- Power dissipation with current rating / with AC / in hot operating state / per pole 2W
- Tightening torque with screw terminals: min 2.5 Nm - max 3 Nm
- Ambient temperature during operation: min -25 °C - max 55 °C
- Ambient temperature during storage: min -40 °C - max 75 °C
- Mounting position as desired
- Net weight 295 grams

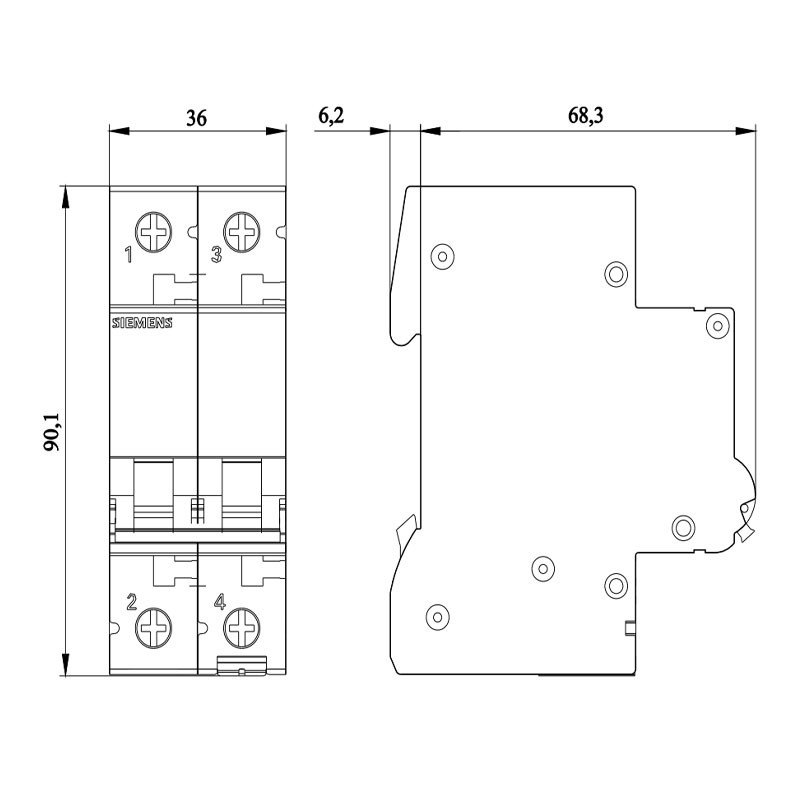

Dimensions:
- 90 mm height
- Width 36 mm
- Depth 76 mm
- Recessed depth 70 mm
There are no reviews
Data sheet
- Voltage:
- 400VAC
- Modules:
- 2
- Poles:
- 2P
- Curve:
- C
- Power:
- 10KA
- Amps:
- 20A
- Circuit Protections:
- Circuit breakers
