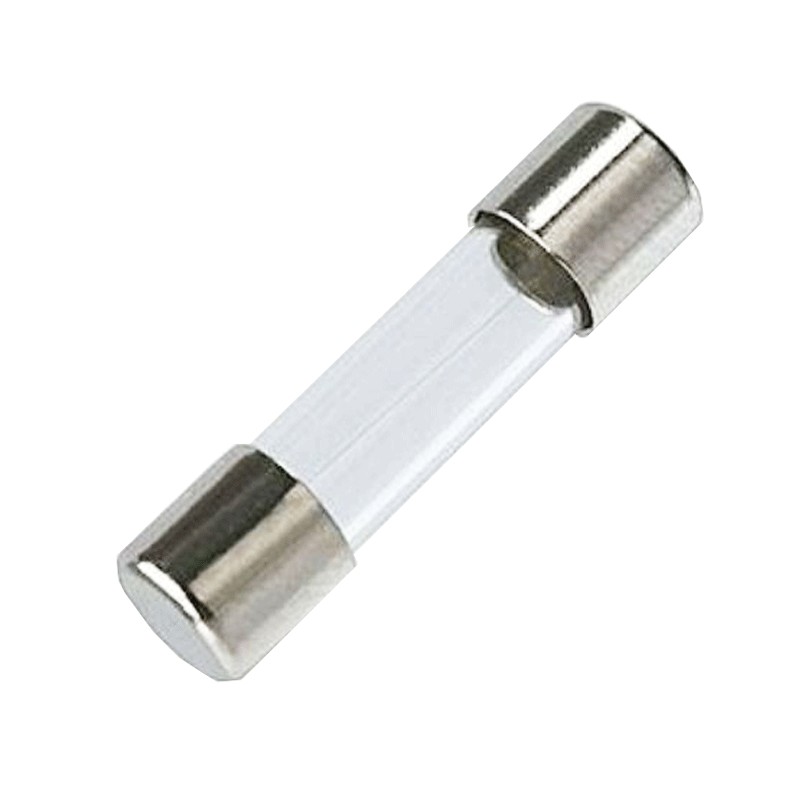

Cylindrical fuse Italweber 5 x 20 mm standard 5A 250V 0104005
ITW 0104005
8024873011309
Italweber cylindrical fuse, with the following characteristics:
- Fuse gauge dimensions 5 x 20 mm
- Fuse Standard type
- Fast tripping characteristic (F)
- Nominal current 5A
- Voltage 250V
- Interrupting capacity Ik 50
Cylindrical fuse Italweber 5 x 20 mm standard 5A 250V 0104005
€0.15
Tax included
€0.15
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2160
: 323
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber series
- Glass body
- Silver plated copper contacts
- Fuse gauge dimensions 5 x 20 mm
- Fuse Standard type
- Fast tripping characteristic (F)
- Compliant with standards CEI 32-6/1, CEI 32-6/2, IEC 60127-1, IEC 60127-2
- Rated current 5A
- Voltage 250V
- Interrupting capacity Ik 50
- Operating temperature -40°C / +90°C
- Maximum altitude 2000 meters above sea level
- Relative humidity < 50% at 40°C
Data sheet
- Type:
- Cylinder fuses
- Size:
- 5X20
- Voltage:
- 250V
- Amps:
- 5A
- Material:
- Glass
