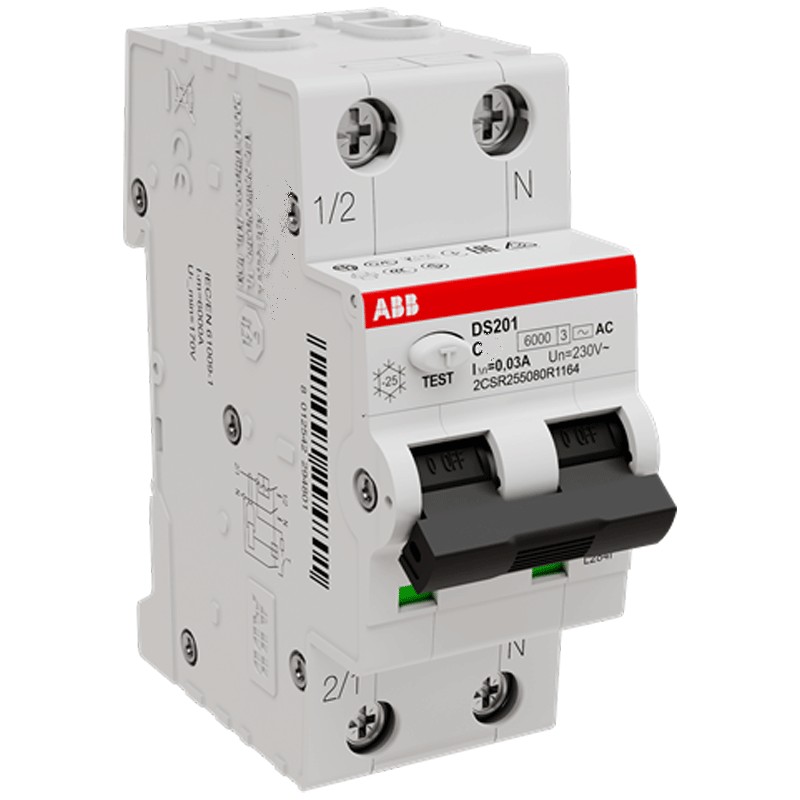

Differential Magnetothermal Abb 25A 1P N 30MA AC 6KA 2M DS201C25AC30
ABB DS201C25AC30
8012542049012
Differential Magnetothermal Abb Rated current 25A, Poles 1P N, Sensitivity 30MA, Residual current type: AC, Rated short-circuit capacity 6KA, Dimensions 2 Modules.
Differential Magnetothermal Abb 25A 1P N 30MA AC 6KA 2M DS201C25AC30
€115.99
Tax included
€115.99
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 44
: 2
Pay in installments with Klarna
Further Abb RCBO combinations:
Features:
- Reference standards: IEC/EN 61009-1, IEC/EN 61009-2-1
- Type of residual current: AC type
- Number of poles: 2
- Number of protected poles: 1
- Rated current (In): 25 A
- Rated Current Sensitivity: 0.03 A
- Nominal voltage (Ur): 230 V
- Rated insulation voltage (Ui): 500 V
- Overvoltage category: III
- Degree of pollution: 2
- Test Voltage (Ut):170 264 V
- Rated frequency (f):50 60 Hz
- Rated short-circuit rating (Icn): 6 kA
- Extreme rated short-circuit capacity (Icu): 10 kA
- Rated service short-circuit rating (Ics): 7.5 kA
- Rated primary impulse withstand voltage: 4 kV
- Dielectric test voltage: 2.5 kV
- Intervention characteristic: C
- Energy limitation class: 3
- Enclosure type: Insulation group I - II, RAL 7035
- Contact position indication: Red ON / Green OFF
- Degree of protection: IP20
- Terminal Type: Screw Terminals
- Screw Clamp Type: Failsafe Bi-directional Cylinder-lift Terminal
- Cable Size: 25 mm²
- Connection capacity: Busbar 10/10 mmq
- Stranded 0.75 25 mmq
- Flexible with Ferrule 0.75 16 mmq
- Flexible 0.75 16 mmq
- Tightening torque:2.8 N-m
- Cable stripping length: 12 mm
- Dimensions: Product width: 0.035 m - Product height: 0.085 m - Product depth: 0.069 m - Product net weight: 0.200 kg.
Data sheet
- Modules: 2
- Poles: 1P+N
- Power: 6KA
- RCD Type: AC
- Differential current : 0.03A
- Amps: 25A
- Circuit Protections: RCBO
