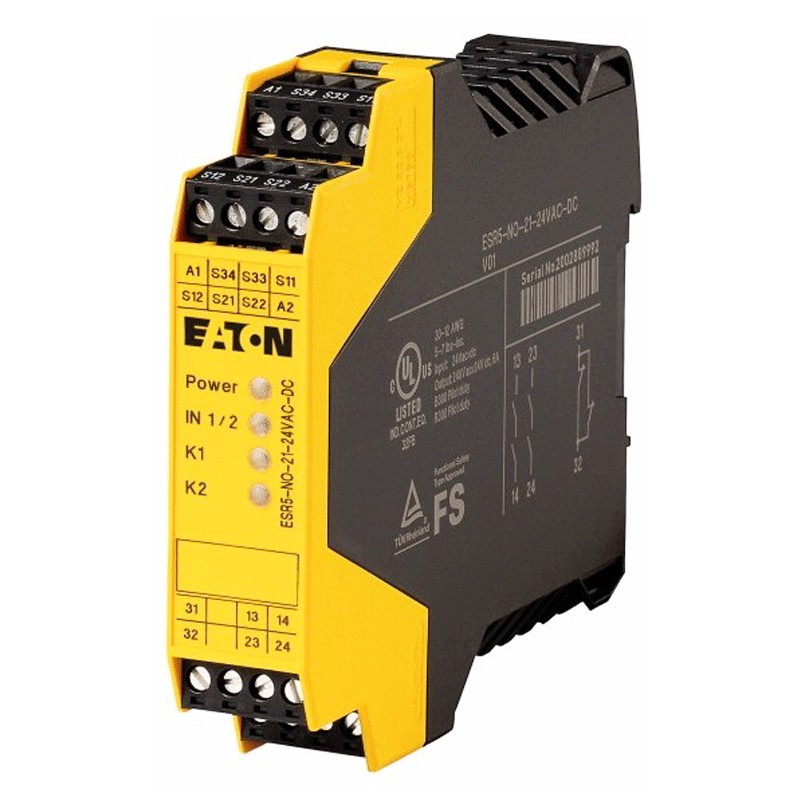

Eaton Emergency Stop Safety Relays 24VDC/AC 118700
EAO 118700
4015081168408
Eaton Emergency Stop Safety Relays, 24VDC/AC, 2 release circuit
Eaton Emergency Stop Safety Relays 24VDC/AC 118700
€193.03
Tax included
€193.03
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
: 2
Pay in installments with Klarna
Dual-channel safety relay, for realization of the basic functions emergency stop / emergency stop / protective door, supply voltage 24VDC or 24VAC 50/60Hz, 2 release circuits (IEC/EN 60204 stop category 0), 1 signal circuit, protection against brush contact in accordance with EN 50274 for vertical operation from the front, protection against contact with fingers and the back of the hand, suitable for cat. 4 in accordance with EN 954-1 / PL and EN ISO 13849-1 / SILCL 3 in accordance with IEC 62061 / SIL 3 in accordance with IEC 61508, degree of protection IP20, minimum installation location IP54, TüV-tested, rated impulse voltage 6 kV / safe disconnection, reinforced insulation.
Technical characteristics:
- Installation width: 22.5 mm
- Automatic reset
- Operation: Single channel, dual channel
- Supply voltage [Us ]: 24 V DC, 24 V AC, 50/60 Hz
-
Safety parameters:
Cat. 4
PL e according to EN ISO 13849-1
SILCL 3 according to IEC 62061
SIL 3 according to IEC 61508
There are no reviews
Data sheet
- Type: Safety relays
