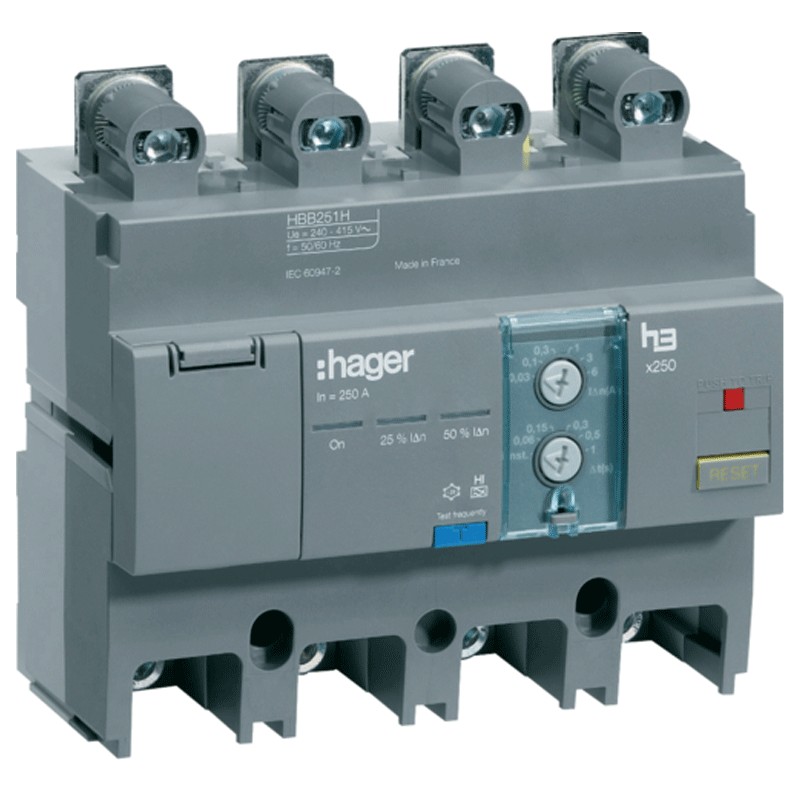

Hager differential lock 4P 250A adjustable 0,06 1SEC for X250 HBB251H

Hager
Hager
HAG HBB251H 3250613121143

Hager differential lock (circuit breaker), adjustable, timed for X250, with the following features:

  • DIN connection (universal for any switchboard on the market)
  • 4 poles
  • 250 amperes
  • Nominal differential current 30 mA/100 mA/300 mA /1A /3A /6A
  • Rated operating voltage AC 220/415 Vac
  • Type of differential A HI

Request info about this product

Hager differential lock 4P 250A adjustable 0,06 1SEC for X250 HBB251H

€706.44 Tax included
€706.44

Hager differential lock 4P 250A adjustable 0,06 1SEC for X250 HBB251H

€706.44
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 5
Altre disponibilità dal produttore
qty

Hager differential lock 4P 250A adjustable 0,06 1SEC for X250 HBB251H

€706.44

Buy it within and receive it from Friday, 19 December
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

The pure earth leakage pure residual current circuit breaker serves to protect people and not installations. The moment a person touches it, it creates a circuit with the earth. The current instead of staying in the home circuit, uses the human body to go to ground.

The residual current circuit breaker, also called circuit breaker, is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, when the current is accidentally lost.

A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.

The differential switch type A-HI high immunity (HI) for use in the presence of overvoltages of atmospheric origin (thunderstorms) in order to avoid untimely interventions that can put the system out of service.

Characteristics:

  • Hager series
  • Nominal operating voltage AC 220/415 Vac
  • Current In 250A
  • Differential current 30 mA / 100 mA / 300 mA / 1 A / 3 A / 6 A
  • Frequency from 50 to 60 Hz
  • Rated insulation voltage 500V
  • Rated fault withstand current 6 kV
  • Type of differential A HI
  • 4 poles
  • Degree of protection of the enclosure IP4X
  • DIN rail mounting type o (symmetrical)

There are no reviews

Data sheet

Voltage:
220/415VAC
Modules:
4
Poles:
4P
RCD Type:
A
Differential current :
0.03-0.1-0.3A
Amps:
250A
Circuit Protections:
Earth Leakage add-on Blocks
