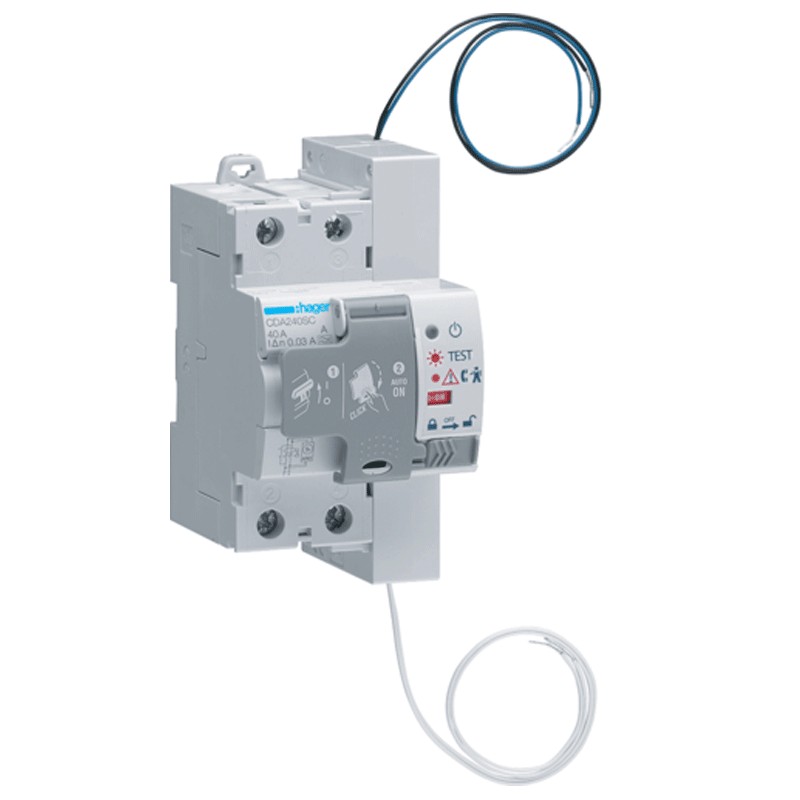

Hager differential switch with automatic reset 40A 2P CDA240SC
HAG CDA240SC
3250611653080
Hager differential switch with automatic reset, with the following characteristics:
- Nominal operating voltage AC 230 Vac
- Rated current in 40A
- Nominal differential current 30 mA
- 3 modules
- 2 poles
- Type of differential protection A
Hager differential switch with automatic reset 40A 2P CDA240SC
€175.83
Tax included
€175.83
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 5
: 2
Pay in installments with Klarna
Further Hager circuit breaker combinations:
Theresidual current circuit breaker type A trip is ensured for differential sinusoidal alternating currents and for pulsating differential unidirectional currents applied suddenly or slowly increasing (CEI EN 61008-1).
Characteristics:
- Left or right neutral position
- 2 poles
- 3 modules
- Rated current in 40A
- Mounting method DIN rail type O (symmetrical)
- Nominal frequency 50 Hz
- Nominal operating voltage AC 230 V
- Type of differential protection A
- Rated insulation voltage 500 V
- Maximum operating voltage 253 V
- Rated fault withstand current 4 kV
- Rated differential current 30 mA
- 8/20µs discharge wave withstand 0.25 kA
- Closing and breaking capacity 0.63 kA
- Conditional short-circuit current Inc. according to EN 61008-1 6Ka
- Total power loss 5.4 W
- Short-circuit tripping delay NO
- Electrical life and number of cycles 1000
- Number of operations (mechanical life) 4000
- Depth of the installed product 75 mm
- Height of the installed product 106 mm
- Width of installed product 54 mm
- Degree of protection of the housing IP20
- Altitude 2000m
- Tropicalised execution 95% / 55°C
There are no reviews
Data sheet
- Voltage: 230VAC
