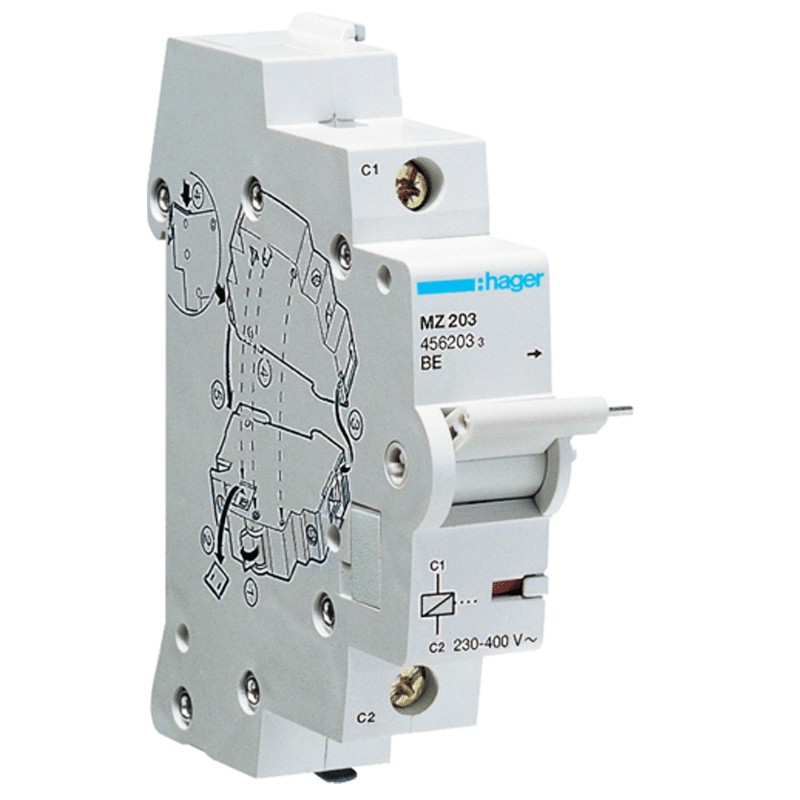

Hager launch coil 230/415VCA 1 Module MZ203
HAG MZ203
3250614562037
Hager current coil with the following characteristics:
- Nominal operating voltage AC 230 / 415 Vac
- Type of supply voltage AC/DC
- Nominal frequency 50/60 Hz
- DIN rail mounting
- Rated insulation voltage 4000 Vac
- Tightening torque 1.2 Nm
- Operating temperature -25...60 °C
- Storage/transport temperature -40...80 °C
Hager launch coil 230/415VCA 1 Module MZ203
€30.36
Tax included
€30.36
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 65
: 11
Frequently bought together
Auxiliary contacts are secondary switching devices which operate in conjunction with primary switching equipment such as circuit breakers, relays and contactors. These contacts are physically connected to the main switching mechanism and are activated simultaneously.
What are they used for? Auxiliary contacts are used for various functions, e.g. self-holding, enabling/disabling, signalling, interlocking.
The switch with electronic release (also called current-launching coil) is a switch that is opened, in the event of a fault, by an electromechanical actuator (opening solenoid) activated by an electronic device capable of processing a signal proportional to the current that passes through the power contacts.
Features:
- Hager series
- Nominal operating voltage AC 230 / 415 Vac
- Type of supply voltage AC/DC
- Nominal frequency 50/60 Hz
- DIN rail mounting
- Rated insulation voltage 4000 Vac
- Control circuit voltage in DC 110 / 130 Vac
- Control circuit voltage in AC 230 / 415 Vac
- Rated DC voltage 110 / 130 Vac
- Imin = f (U = 230 V AC) 14 mA
- Imin = f (U = 415V AC) of power circuit 32 mA
- Power consumption at attraction 15 VA
- Total power dissipation 25.3 W
- Opening response time 200 ms
- Depth 68 mm
- Height 83 mm
- Width 18 mm
- Tightening torque 1.2 Nm
- Minimum cross-section with flexible cable 6 mm²
- Minimum cross-section with rigid cable 10 mm²
- Operating temperature -25...60 °C
- Tropicalised version 95%
- Storage/transport temperature -40...80 °C
Funktioniert super mit den LS der Firma Hager. Einfache Montage dank Klips. Keine unnötiges kleben. Hält bomben fest.
Data sheet
- Type:
- Coils
- Model:
- Release
