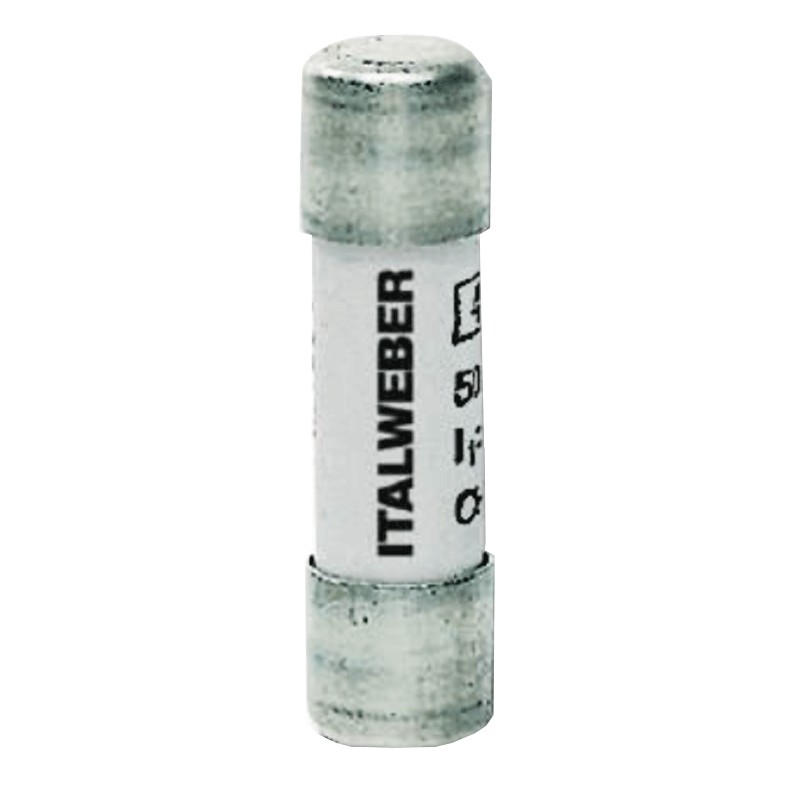

Italweber cylindrical fuse 10.3 x 38 mm CH10 aM 4A 500V 1422004
ITW 1422004
8024873001690
Italweber cylindrical fuse, with the following characteristics:
- Fuse gauge dimensions 10,3 x 38 mm
- Fuse series CH10
- Intervention characteristic aM
- Rated current 4A
- Rated voltage 500 Vac
- Breaking capacity 120kA
Italweber cylindrical fuse 10.3 x 38 mm CH10 aM 4A 500V 1422004
€0.80
Tax included
€0.80
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 222
: 24
Pay in installments with Klarna
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber Series
- Fuse gauge dimensions 10,3 x 38 mm
- Fuse series CH10
- Intervention characteristic aM
- Compliant with standards CEI 32-1, CEI 32-4, IEC 60269-1, IEC 60269-2
- Rated current 4A
- Rated voltage 500 Vac
- Steatite body
- Contacts in silvered copper
- Breaking capacity 120kA
- Operating temperature - 50°C / + 90°C
- Storage temperature - 60°C / + 100°C
tutto come descritto nel sito e consegna puntuale
Normali fusibili. Unico neo la mancanza della spia di folgorazione.
Data sheet
- Type: Cylinder fuses
- Size: 10.3X38
- Voltage: 500V
- Amps: 4A
- Material: Ceramic
