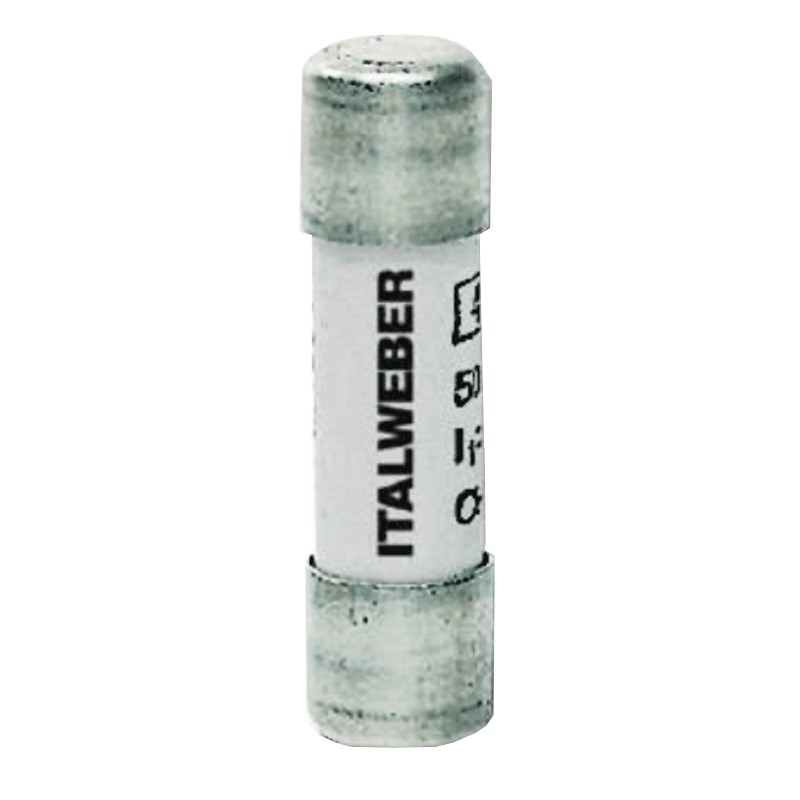

Italweber cylindrical fuse 10,3 x 38 mm CH10 gG 16A 500V 1421016
ITW 1421016
8024873000501
Italweber cylindrical fuse, with the following characteristics:
- Fuse gauge dimensions 10,3 x 38 mm
- Fuse series CH10
- Tripping characteristic gG
- Rated current 16A
- Rated voltage 500 Vac
- Breaking capacity 120kA
Italweber cylindrical fuse 10,3 x 38 mm CH10 gG 16A 500V 1421016
€0.75
Tax included
€0.75
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 6060
: 1060
Pay in installments with Klarna
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber Series
- Fuse gauge dimensions 10,3 x 38 mm
- Fuse series CH10
- Tripping characteristic gG
- Compliant with standards CEI 32-1, CEI 32-4, IEC 60269-1, IEC 60269-2
- Rated current 16A
- Rated voltage 500 Vac
- Steatite body
- Contacts in silvered copper
- Interrupting capacity 120kA
- Operating temperature - 50°C / + 90°C
- Storage temperature - 60°C / + 100°C
Buoni fusibili. Ben costruiti e di ottima marca.
Ad un prezzo veramente competitivo e disponibilità per quantità richiesta.
Data sheet
- Type: Cylinder fuses
- Size: 10.3X38
- Voltage: 500V
- Amps: 16A
- Material: Ceramic
