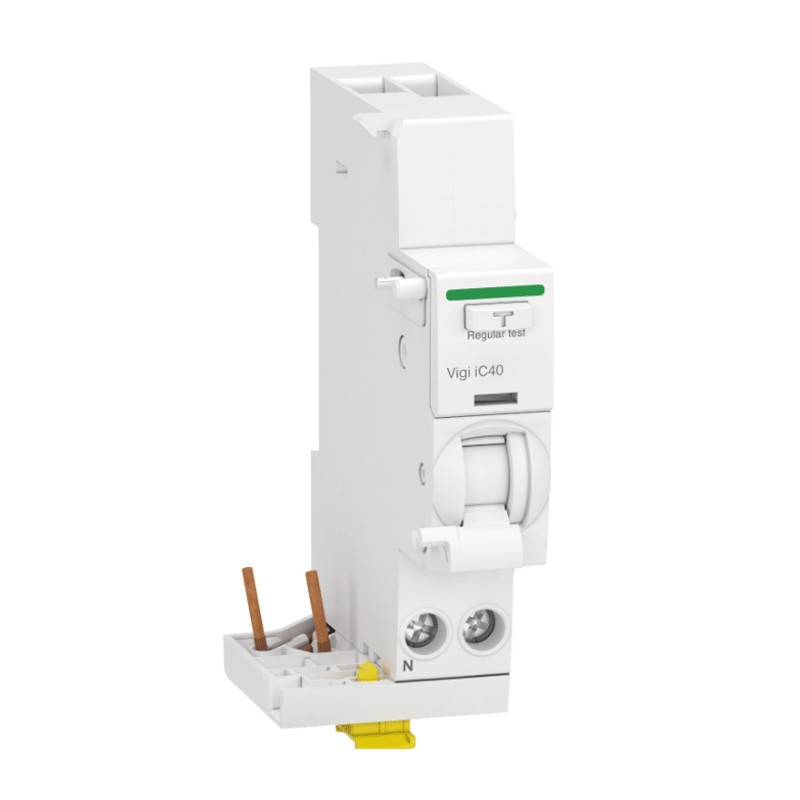

Schneider Acti9 differential block 1P+N 25A 300mA AC 1M IC40 A9Y83625
SNR A9Y83625
3606481327420
Schneider differential lock (circuit breaker), Acti9 range, with the following characteristics
- DIN connection (universal for any switchboard on the market)
- 1P+N
- 1 module
- 25 amperes
- Rated differential current 300 mA
- Rated operating voltage 230 Vac
- AC differential type
- Device name Vigi IC40
Schneider Acti9 differential block 1P+N 25A 300mA AC 1M IC40 A9Y83625
€76.16
Tax included
€76.16
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 44
: 2
The pure earth leakage pure residual current circuit breaker serves to protect people and not installations. The moment a person touches it, it creates a circuit with the ground. The current instead of staying in the home circuit, uses the human body to go to ground.
The residual current circuit breaker, also called circuit breaker, is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, when the current is accidentally lost.
A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.
The AC residualcurrent circuit breaker operates only with alternating current. Almost all civil installations fall into this type.
Characteristics:
- Schneider series
- Rated voltage 230 Vac
- Current In 25A
- Differential current 300 mA
- Mains frequency 50/60 Hz
- AC differential type
- 1P+N
- 1 module
- Neutral position left
- Local Fault indication
- Degree of protection of the housing IP20
- Mounting method
- DIN rail mounting bracket
- Height 95 mm
- Width 36 mm
- Depth 74 mm
- Product weight 90 gr
- Colour white
- Tightening torque 2 Nm lower part
- Mechanical life 20000 cycles
- Electrical life 10000 cycles
There are no reviews
Data sheet
- Voltage:
- 230VAC
- Modules:
- 1
- Poles:
- 1P+N
- RCD Type:
- AC
- Differential current :
- 0.3A
- Amps:
- 25A
- Circuit Protections:
- Earth Leakage add-on Blocks
