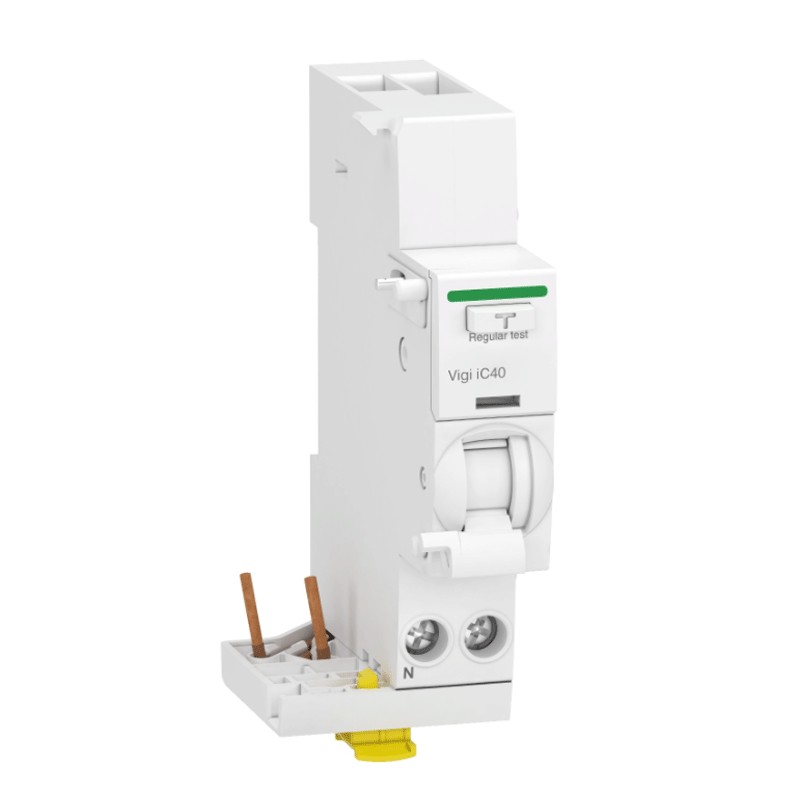

Schneider Acti9 differential block 1P+N 25A 30mA A/SI 1M IC40 A9Y84625

Schneider
Schneider
SNR A9Y84625 3606481327482

Schneider differential lock (circuit breaker), Acti9 range, with the following characteristics

  • DIN connection (universal for any switchboard on the market)
  • 1P+N
  • 1 module
  • 25 amperes
  • Rated differential current 30 mA
  • Rated operating voltage 230 Vac
  • Type of differential A/SI
  • Device name Vigi IC40

Request info about this product

Schneider Acti9 differential block 1P+N 25A 30mA A/SI 1M IC40 A9Y84625

€117.71 Tax included
€117.71

Schneider Acti9 differential block 1P+N 25A 30mA A/SI 1M IC40 A9Y84625

€117.71
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 37
Altre disponibilità dal produttore
qty

Schneider Acti9 differential block 1P+N 25A 30mA A/SI 1M IC40 A9Y84625

€117.71

Buy it within and receive it from Thursday, 13 November
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

The pure earth leakage pure residual current circuit breaker serves to protect people and not installations. The moment a person touches it, it creates a circuit with the earth. The current instead of staying in the home circuit, uses the human body to go to ground.


The residual current circuit breaker, also called circuit breaker, is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, when the current is accidentally lost.

A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.


The residual current circuit breaker type A/SI, is more immune to electromagnetic disturbances present on the networks.

These disturbances can be the cause of useless and untimely releases, useless as such the attenuated or mitigated disturbances do not involve risks for people. Furthermore, the class A type SiE series is more immune to pollutants present in the atmosphere of the place of installation.



Characteristics:


  • Schneider series
  • Rated voltage 230 Vac
  • Current In 25A
  • Differential current 30 mA
  • Mains frequency 50/60 Hz
  • Type of differential A/SI
  • 1P+N
  • 1 module
  • Neutral position left
  • Local Fault indication
  • Degree of protection of the housing IP20
  • Mounting method
  • DIN rail mounting bracket
  • Height 95 mm
  • Width 36 mm
  • Depth 74 mm
  • Product weight 90 gr
  • Colour white
  • Tightening torque 2 Nm lower part
  • Mechanical life 20000 cycles
  • Electrical life 10000 cycles

There are no reviews

Data sheet

Voltage:
230VAC
Modules:
1
Poles:
1P+N
RCD Type:
AS
Differential current :
0.03A
Amps:
25A
Circuit Protections:
Earth Leakage add-on Blocks
