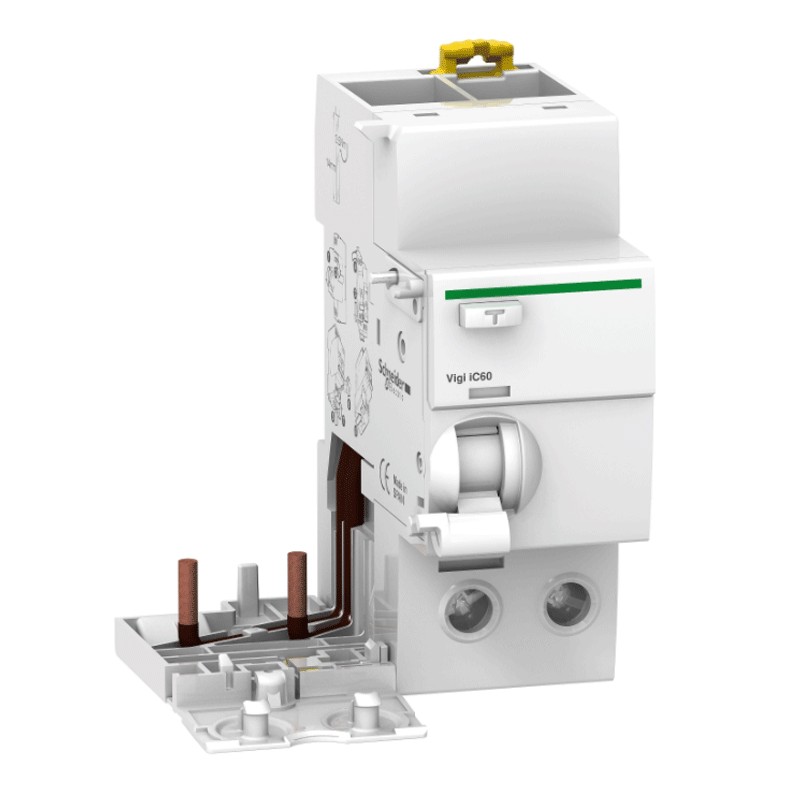

Schneider differential lock 2P 63A 300mA A/S 2 modules A9V65263

Schneider
Schneider
SNR A9V65263 3606480087745

Schneider differential lock (circuit breaker), selective, with the following features

  • DIN connection (universal for any switchboard on the market)
  • 2 poles
  • 2 modules
  • 63 amperes
  • Rated differential current 300 mA
  • Rated operating voltage 230/415 Vac
  • Type of differential A (selective)

Request info about this product

Schneider differential lock 2P 63A 300mA A/S 2 modules A9V65263

€234.36 Tax included
€234.36

Schneider differential lock 2P 63A 300mA A/S 2 modules A9V65263

€234.36
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 12
logo priority: 2
Altre disponibilità dal produttore
qty

Schneider differential lock 2P 63A 300mA A/S 2 modules A9V65263

€234.36

Buy it within and receive it from Wednesday, 17 December
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

The pure earth leakage pure residual current circuit breaker serves to protect people and not installations. The moment a person touches it, it creates a circuit with the earth. The current instead of staying in the home circuit, uses the human body to go to ground.

The residual current circuit breaker, also called circuit breaker, is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, when the current is accidentally lost.

A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.

The residual current circuit breakertype A-S: selective or delayed residual current circuit breakers: they operate with intentional delay (like type A).

Characteristics:

  • Schneider Series
  • Selective selective (S)
  • Rated operating voltage 230/415 Vac
  • Current In 63A
  • Differential current 300mA
  • Mains frequency 50/60 Hz
  • Type of differential A
  • 2 poles
  • 2 modules
  • Local signalling trigger indicator
  • Degree of protection of the housing IP20
  • Mounting method
  • DIN rail mounting bracket
  • Height 91 mm
  • Width 72 mm
  • Depth 73.5 mm
  • Product weight 0.165 kg
  • Tightening torque 3.5 Nm lower part

There are no reviews

Data sheet

Voltage:
230/415VAC
Modules:
2
Poles:
2P
RCD Type:
AS
Differential current :
0.3A
Amps:
63A
Circuit Protections:
Earth Leakage add-on Blocks
