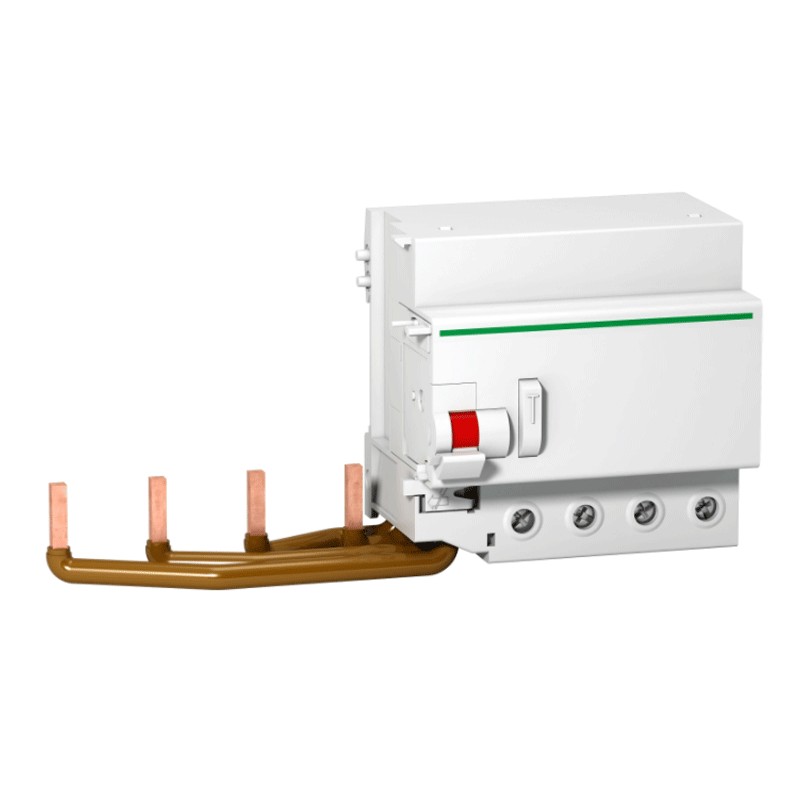

Schneider differential lock 4P 125A 500mA AC 5 modules A9N18571
SNR A9N18571
3606480376344
Schneider differential lock (circuit breaker), with the following features:
- DIN connection (universal for any switchboard on the market)
- 4 poles
- 5 modules
- 125 amperes
- Rated differential current 500 mA
- Rated operating voltage 400/415 Vac
- Type of AC differential
Schneider differential lock 4P 125A 500mA AC 5 modules A9N18571
€194.24
Tax included
€194.24
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
: 1
Pay in installments with Klarna
The pure earth leakage pure residual current circuit breaker serves to protect people and not installations. The moment a person touches it, it creates a circuit with the earth. The current instead of staying in the home circuit, uses the human body to go to ground.
The residual current circuit breaker, also called circuit breaker, is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, when the current is accidentally lost.
A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.
The AC residualcurrent circuit breaker operates only with alternating current. Almost all civil installations fall into this type.
Characteristics:
- Schneider series
- Rated voltage of use 400/415 Vac
- Current In 125A
- Differential current 500 mA
- Mains frequency 50/60 Hz
- AC differential type
- 4 poles
- 5 modules
- Degree of protection of the housing IP20
- Mounting method
- Mounting bracket for 35 mm symmetrical DIN rail mounting
- Height 95 mm
- Width 198 mm
- Depth 73 mm
- Product weight 0.58 kg
- Colour white
- Tightening torque 3.5 Nm
- Mechanical life 20000 cycles
There are no reviews
Data sheet
- Voltage: 400/415VAC
- Modules: 5
- Poles: 4P
- RCD Type: AC
- Differential current : 0.5A
- Amps: 125A
- Circuit Protections: Earth Leakage add-on Blocks
