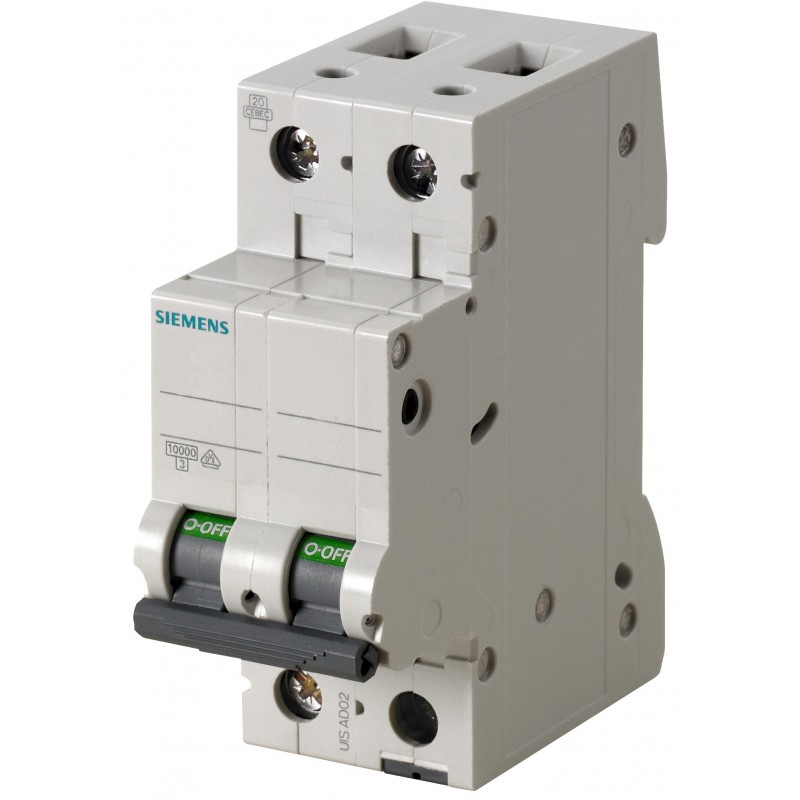

Siemens circuit breaker 1+N 2 Modules 10A 4500K 5SL35107
SIE 5SL35107
4001869390987
Siemens thermal-magnetic circuit breaker, 2 modules, DIN connection (universal for any switchboard on the market), poles 1+N, 10 amperes, breaking capacity 4.5 kA, voltage 230 Vac, curve C.
Siemens circuit breaker 1+N 2 Modules 10A 4500K 5SL35107
€6.31
Tax included
€6.31
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3623
: 676
Pay in installments with Klarna
The C-curve can tolerate short-term overcurrents of up to five to ten times the rated current and is widely used in domestic installations.
A circuit breaker is a safety device that can automatically (i.e. without external intervention) interrupt the flow of electrical current in an electrical circuit in the event of an overcurrent.
Features:
- Siemens series
- Voltage 230 Vac
- Current In 10A
- Interrupting capacity Icn 4.5kA
- Tripping curve C
- 2 modules
- Poles 1+N
- Degree of protection IP20, with connected conductors
- Height 90 mm
- Width 36 mm
- Depth 76 mm
- Recessed depth 70 mm
- Net weight 210 g
- Maximum cable cross-section 25 mm2
- Suitability for use Residential building / Infrastructure
Data sheet
- Voltage: 230VAC
- Modules: 2
- Poles: 1P+N
- Curve: C
- Power: 4.5KA
- Amps: 10A
- Circuit Protections: Circuit breakers
