Comelit Ultra Simplebus 1 UT8000 audio and video system basic kit
COE UT8000
8023903402759

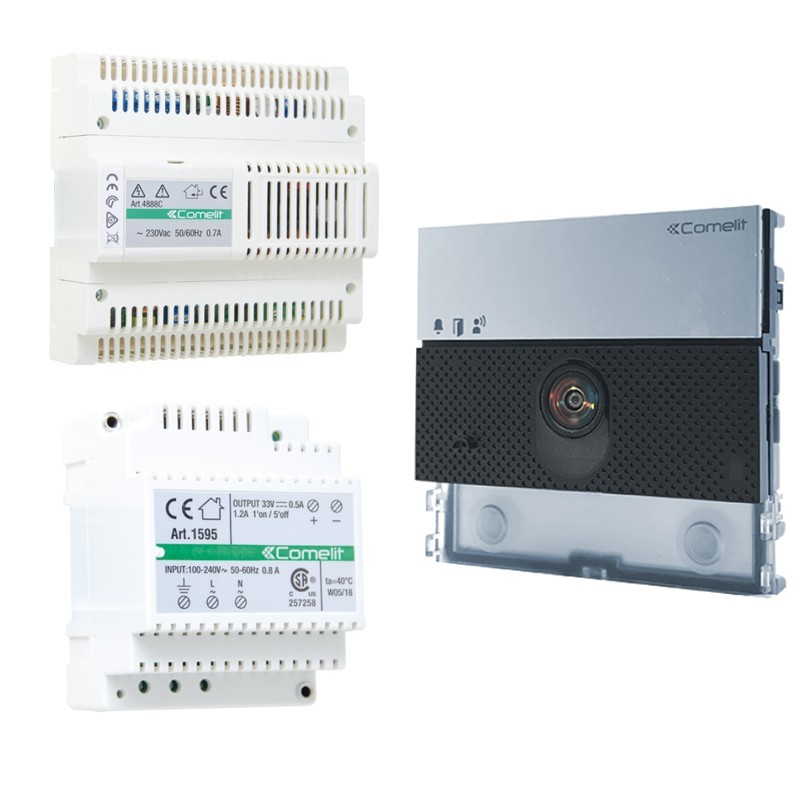

Comelit Ultra series expandable audio and video system base kit for Simplebus 1 system:
- 1 2-wire audio/video module art. UT1020
- 1 power supply unit 2 wires 4 outputs art. 4888C
- 1 power supply unit art. 1595.
Comelit Ultra Simplebus 1 UT8000 audio and video system basic kit
€551.56
Tax included
€551.56
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 11
: 1
Features UT1020 Audio/Video Module ULTRA SIMPLEBUS1:
Advantages:
- Easy to install and simple to configure thanks to smart programming of call buttons
- Twilight sensor to automatically switch off the backlighting of name tags during daylight hours
- Omni-directional digital microphone and dual speakers for high fidelity audio
- Wide-angle colour camera (field of view: 120° horizontal, 90° vertical)
- Audio/visual aid signals for the disabled activated by programming
- Ready for 2 call buttons
- To be completed with cap, single button or double button made of professional plastic with anti-yellowing and anti-opacification treatment or aluminium
- Adjustments and programming without removing the module
- Dimensions: 1 Ultra module
- ULTRA, the new most technologically advanced push-button panel with maximum ease of installation.
Features:
- Modular typology
- Dimensions: Product height (mm) 90 - Product width (mm) 100 - Product depth (mm) 35
- Product weight (g) 275
- Product colour Black RAL9005, Transparent, Aluminium
- Material Polycarbonate, Aluminium alloy
- Flush Mounting Yes, with dedicated accessory
- Wall mounting Yes, with dedicated accessory
- Audio/video Simplebus 2 with power supply unit art. 4888C
- Microphone Digital audio MEMS sensor, omnidirectional
- Loudspeaker 28mm (Ø), 8 Ohm, 1W (2)
- Sensor type 1/3" CMOS
- Camera Color
- Lens (mm) 1.79
- Viewing angle (H x V - °) 120 x 90
- Sensitivity (lux) 0.45
- Resolution (H x V - pixels) 1288 x 968
- External power supply
- Supply voltage 33VDC
- Absorption in stand-by (W) 1.5
- Maximum absorption (W) 6
- Type of call Buttons
- Number of buttons (No.) 2
- Colour of backlighting White, Off
- Terminals L V+ V- COM NC NO SE GND RTE TX- TX+ RX- RX+
- Number of inputs (No.) 1
- Number of outputs (No.) 2
- Communication ports Micro-USB
- Twilight sensor Yes
- Speaker volume
- Microphone volume
- Backlight brightness
- Operating temperature (°C) -25 ÷ 55
- Operating humidity (RH max - %) (%) 25 ÷ 95
- Environmental class IV
- Compliance and Certifications RoHS II - 2011/65/EU (EN 50581:2012), EMC 2014/30/EU (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)
- Door opener Yes
- Number of auxiliary relays (n°) 1
- Input for local door opener button Yes
- Input for door open signalling Yes
- Yes Visual signalling of system status
- Acoustic signalling of system status Yes
- Voice synthesis of system status Yes
Features 4888C SIMPLEBUS2 mixer/power supply unit: Power supply unit for audio or audio/video systems with 1 input compatible with all outdoor panels with SimpleBus 1 technology and 4 outputs for connection of 100 devices each to be chosen from among doorphones and video doorphones with SimpleBus 2 technology. It has LEDs for signalling short circuits on the lines and a DC voltage output for powering additional devices such as switches Art. 1224A, 1424 and/or actuator relay Art. 1256. It allows intercom functions between users. Equipped with 4 terminals for line termination art. 1216.
- Dimensions: Height (mm) 67 - Width (mm) 140 - Depth (mm) 140
- Operating temperature (°C) -5 ÷ 40
- Simplebus 2 audio/video system
- Maximum current absorption 700 (mA)
- DIN modules (n°) 8
- DIN rail mounting.
Characteristics 1595 Power supply 120-230VAC / 33VDC
Characteristics:
- Supply voltage 120÷230VAC
- Power supply output voltage 33VDC
- Max output current (A) 0,5
- Max inrush current (A) 1,2
- Applicable to DIN rail Yes
- Number of DIN modules (n°) 4
- Dimensions (mm) Height (mm) 62 - Width (mm) 71,7 - Depth (mm) 90
- Coating type Plastic
- Colour White
- Operating temperature (°C) -20 ÷ 40
- Operating humidity (% RH max) <90
- Audio/video system Simplebus 2 Yes
- Audio/video system Building Kit Yes
- Audio system Simplebus 2 Yes
- Simplebus 1 audio system Yes
- Vip system Yes
- Audio/video kit system Yes
- Maximum output power 60W
