Siemens differential lock RCD820 3VA2 4 poles 400A 3VA93240RL30
SIE 3VA93240RL30
4042949002147

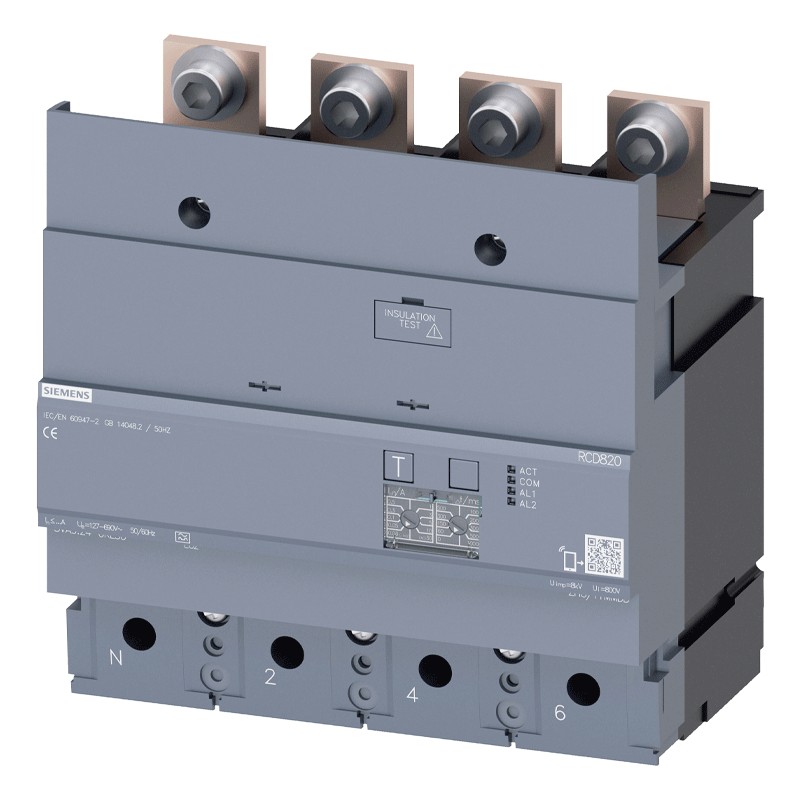

Siemens moulded differential block for 3VA2 series, with the following characteristics
- Rated operational voltage 100-690V
- Rated fault current 0.03...5A at 50/60 Hz
- Current In 400A
- 4 poles
- Type A RCD820 Basic side mounted
- Ideal for 3VA2 series moulded case circuit breakers
Siemens differential lock RCD820 3VA2 4 poles 400A 3VA93240RL30
€683.48
Tax included
€683.48
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 9
: 1
Pay in installments with Klarna
The new 3VA moulded case circuit breakers guarantee high selectivity, extremely compact dimensions and high breaking capacities. The different dimensional sizes up to 1000 A and more than 500 accessory components allow to satisfy all possible configurations of any application.
Features:
- Siemens series
- Rated operational voltage 100-690V
- Rated fault current 0.03...5A at 50/60 Hz
- Current In 400A
- 4 poles
- Type A RCD820 Basic side mounted
- Ideal for 3VA2 series moulded case circuit breakers

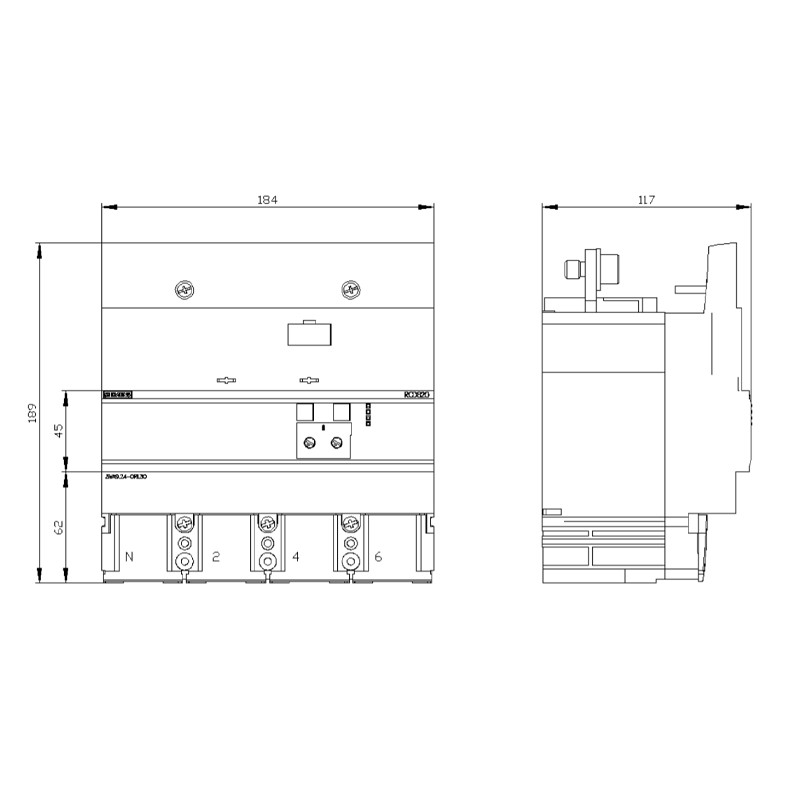

- Height 150 mm
- Width 184 mm
- Depth 110 mm
- Net weight 3.571 gr
There are no reviews
Data sheet
- Type: Differential modules
- Poles: 4P
- Amps: 400A
