Siemens RCD310 differentiated module for 3VA11 4 poles 160A 3VA91140RS10
SIE 3VA91140RS10
4042949002246
Siemens differential protection module/device, with the following characteristics:
- Rated operational voltage 127-480V
- Rated fault current 0.03 ... 5A at 50/60 Hz
- Current In 160A
- 4 poles
- Type A RCD310 Basic side mounted
- Ideal for 3VA11 series moulded case circuit breakers
Siemens RCD310 differentiated module for 3VA11 4 poles 160A 3VA91140RS10
€299.26
Tax included
€299.26
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 7
Pay in installments with Klarna
The new 3VA moulded case circuit breakers guarantee high selectivity, extremely compact dimensions and high breaking capacities. The different dimensional sizes up to 1000 A and more than 500 accessory components allow to satisfy all possible configurations of any application.
Features:
- Siemens series
- Rated operational voltage 127-480V
- Rated fault current 0.03 ... 5A at 50/60 Hz
- Current In 160A
- 4 poles
- Type A RCD310 Basic side mounted
- Ideal for 3VA11 series moulded case circuit breakers

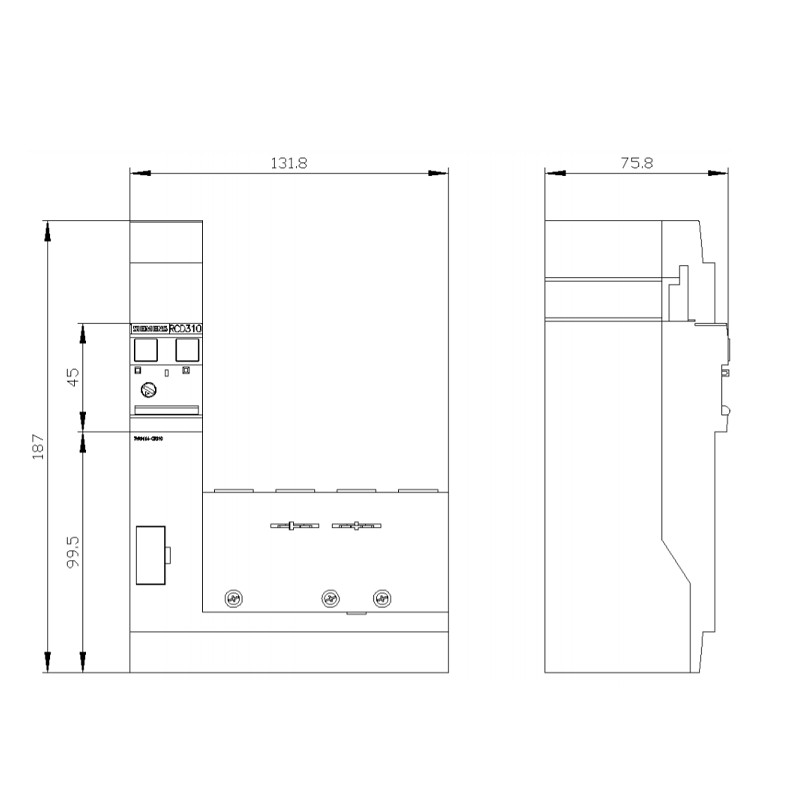

- Height 187 mm
- Width 131,8 mm
- Depth 70 mm
- Net Weight 967 gr
There are no reviews
Data sheet
- Type: Differential modules
- Poles: 4P
- Amps: 160A
