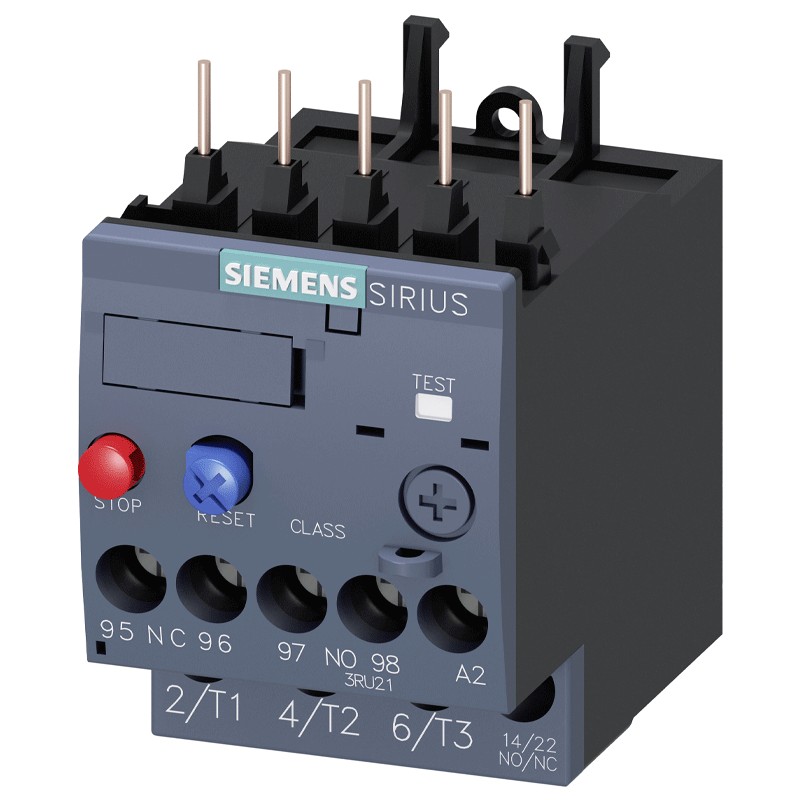

Siemens overload relay for S00 series 2.2-3.2A 3RU21161DB0
SIE 3RU21161DB0
4011209781627
Siemens overload relay for S00 series, with the following characteristics:
- Operating voltage nominal value 690 Vac - with AC-3 nominal value max 690 Vac
- Frequency of use nominal value 50/60 Hz
- Operating current nominal value 3.2 A
- Adjustable tripping value for current-dependent overload release current 2.2 ... 3,2 A
- Rated impulse withstand voltage 6 kV
- 3 poles
- Any mounting position
- Type of mounting Contactor mounting
- Tightening torque for main contacts with screw terminals 0.8 ... 1.2 Nm
- Tightening torque for auxiliary contacts with screw terminals 0.8 ... 1.2 Nm
- Degree of protection IP front side IP20
Siemens overload relay for S00 series 2.2-3.2A 3RU21161DB0
€43.41
Tax included
€43.41
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 19
: 2
Pay in installments with Klarna
Thermal Overload Relays and Overload Relays are electromechanical protection devices for the main circuit. They provide safe motor protection in the event of overload or phase loss.
Features:
- Siemens series
- Operating voltage nominal value 690 Vac - with AC-3 max nominal value 690 Vac
- Frequency of use nominal value 50/60 Hz
- Operating current nominal value 3.2A
- Adjustable trip value for current-dependent overload release current 2.2 ... 3,2 A
- Rated impulse withstand voltage 6 kV
- Shock resistance acc. to IEC 60068-2-27 8g / 11 ms
- Installation altitude for altitude above sea level max. 2000 m
- Ambient temperature during operation -40 ... +70 °C - during storage -55 ...+80 °C, during transport -55 ...+80 °C
- Temperature compensation -40 ...+60 °C
- Relative humidity during operation 10 ... 95 %
- 3 poles
- Any mounting position
- Type of mounting Contactor mounting
- Height 76 mm
- Width 45 mm
- Depth 70 mm
- Tightening torque for main contacts with screw terminals 0.8 ... 1.2 Nm
- Tightening torque for auxiliary contacts with screw terminals 0.8 ... 1.2 Nm
- IP degree of protection front side IP20
There are no reviews
Data sheet
- Type: Overload Relays
- Voltage: 690VAC
- Poles: 2P
- Amps: 2.2-3.2 A
