Siemens overload relay for S00 series 5.5-8.0A 3RU21161HB0
SIE 3RU21161HB0
4011209781665
Siemens overload relay for S00 series, with the following characteristics:
- Operating voltage nominal value 690 Vac - with AC-3 nominal value max 690 Vac
- Frequency of use nominal value 50/60 Hz
- Operating current nominal value 8 A
- Adjustable tripping value for current-dependent overload release current 5.5 ... 8 A
- Impulse withstand voltage nominal value 6 kV
- 3 poles
- Any mounting position
- Type of mounting Contactor mounting
- Tightening torque for main contacts with screw terminals 0.8 ... 1.2 Nm
- Tightening torque for auxiliary contacts with screw terminals 0.8 ... 1.2 Nm
- Degree of protection IP front side IP20
Siemens overload relay for S00 series 5.5-8.0A 3RU21161HB0
€43.41
Tax included
€43.41
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
: 2
Thermal Overload Relays and Overload Relays are electromechanical protection devices for the main circuit. They provide safe motor protection in the event of overload or phase loss.
Features:
- Siemens series
- Operating voltage nominal value 690 Vac - with AC-3 max nominal value 690 Vac
- Frequency of use nominal value 50/60 Hz
- Operating current nominal value 8 A
- Adjustable tripping value for current-dependent overload release current 5.5 ... 8 A
- Impulse withstand voltage nominal value 6 kV
- Shock resistance acc. to IEC 60068-2-27 8g / 11 ms
- Installation altitude for altitude above sea level max. 2000 m
- Ambient temperature during operation -40 ... +70 °C - during storage -55 ...+80 °C, during transport -55 ...+80 °C
- Temperature compensation -40 ...+60 °C
- Relative humidity during operation 10 ... 95 %
- 3 poles
- Any mounting position
- Type of mounting Contactor mounting

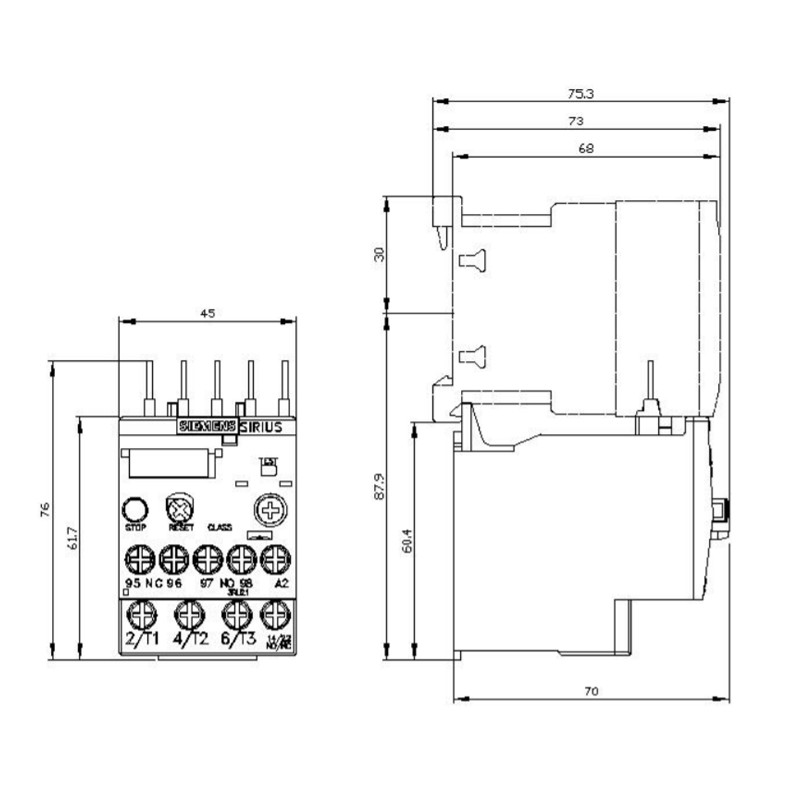

- Height 76 mm
- Width 45 mm
- Depth 70 mm
- Tightening torque for main contacts with screw terminals 0.8 ... 1.2 Nm
- Tightening torque for auxiliary contacts with screw terminals 0.8 ... 1.2 Nm
- IP degree of protection front side IP20
Data sheet
- Type:
- Overload Relays
- Voltage:
- 690VAC
- Poles:
- 3P
- Amps:
- 5.5-8.0A
