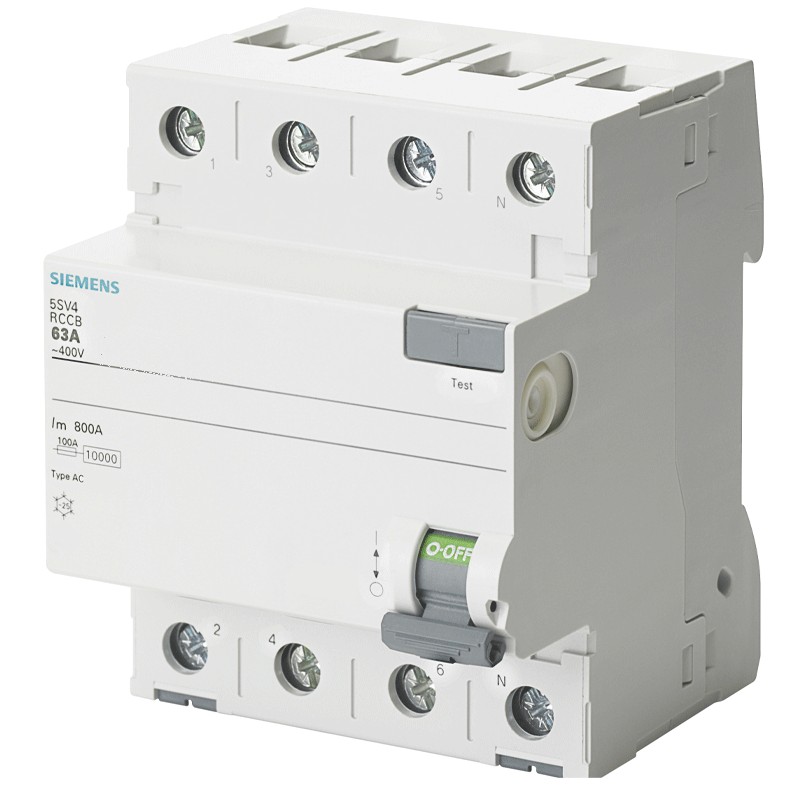

Siemens pure differential switch 4 poles 63A 300mA AC type 4 modules 5SV46460
SIE 5SV46460
4001869428024
Pure differential switch (circuit breaker) Siemens, 4 modules, DIN mount (universal for any switchboard on the market), 4P poles, 63 amperes, differential current Idn 300mA, voltage 400 Vac, AC differential type.
Siemens pure differential switch 4 poles 63A 300mA AC type 4 modules 5SV46460
€93.08
Tax included
€93.08
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 38
: 2
The pure earth leakage circuit breaker is used to protect people and not the equipment. The moment a person goes to touch it, it creates a circuit with the earth. The current instead of remaining in the domestic circuit, uses the human body to go to earth.
The residual current circuit breaker, also called circuit breaker, is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, when the current is accidentally lost.
A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.
The earth leakage circuit breaker type AC, operates only with alternating current. Almost all civil installations fall into this category.
Features:
- Siemens series
- Voltage 400 Vac
- Current In 63A
- Differential current Idn 300mA
- AC differential type
- 4 modules
- 4P
- Degree of protection IP20, for installation in distribution board, with conductors connected
- Frequency of use 50 Hz
- Height 90 mm
- Width 72 mm
- Depth 70 mm
- Recessed depth 70 mm
- Type of mounting DIN rail (REG)
- Any mounting position
- Tightening torque/with screw terminals min 2.5 Nm - max 3 Nm
- Net weight 350 g
There are no reviews
Data sheet
- Voltage:
- 400VAC
- Modules:
- 4
- Poles:
- 4P
- RCD Type:
- AC
- Differential current :
- 0.3A
- Amps:
- 63A
- Circuit Protections:
- Residual current devices
