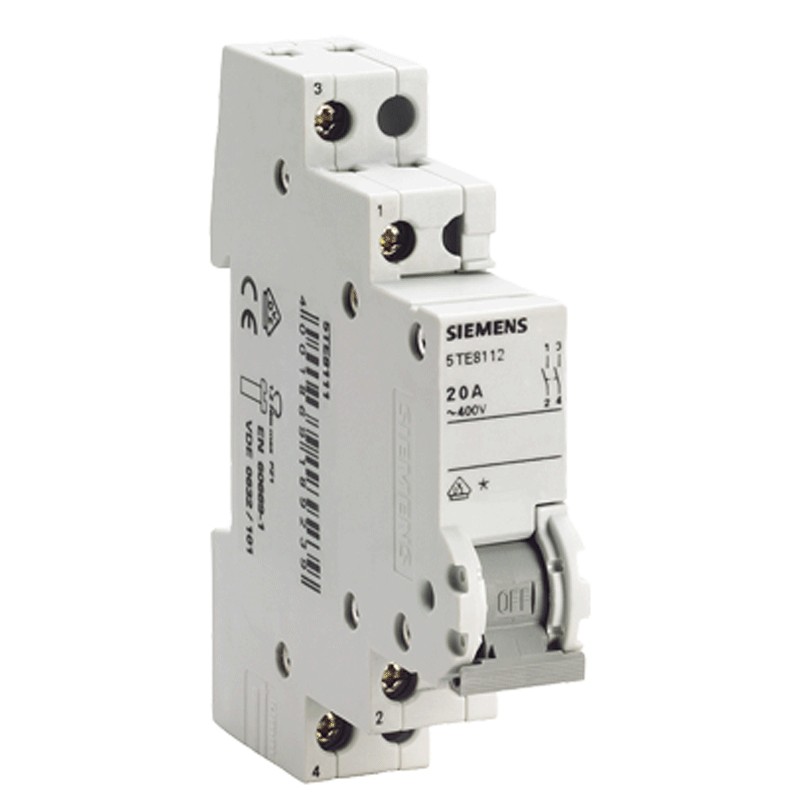

Siemens switch disconnector 1P 20A 1 module 5TE8112
SIE 5TE8112
4001869210070
Siemens circuit breaker/disconnector, with the following characteristics:
- AC voltage type
- Operating voltage nominal value 400 V
- 1 module
- 1 pole
- DIN connection (universal for any switchboard on the market)
- Number of contacts 2NO
- Operating current nominal value 20 amperes
Siemens switch disconnector 1P 20A 1 module 5TE8112
€11.94
Tax included
€11.94
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 98
: 4
Pay in installments with Klarna
Thedisconnector, otherwise called voltage isolator, has the same features of a switch, but on a larger scale: it is, in fact, responsible for closing the flow of energy to the power plants. This serves mainly to ensure the safety of the plant and primarily of the people who work inside since one of its peculiarities is to separate the flow of energy from the working environments. Another peculiarity of this instrument is the ability to detect defects in the electrical flow and isolate them. When the defect is corrected, the disconnector will ensure that the current flows normally again.
Characteristics:
- Siemens Series
- Type of voltage AC
- Rated operating voltage 400 V
- 1 module
- 1 pole
- DIN connection (universal for any switchboard on the market)
- Number of contacts 2NO
- Rated operational current 20 amperes
- Short-circuit withstand current 10 kA
- Breaking capacity current / nominal value 0.06 kA
- Degree of protection IP other
- Tightening torque with screw terminals min 0.8 Nm - max 1 Nm
- Height 90 mm
- Depth 77 mm
- Recessed depth 70 mm
- Net weight 75 gr
- Ambient temperature during operation min -5 °C - max. 40 °C
- Ambient temperature during storage min -25 °C
Fa il suo lavoro come da descrizione...
Ottimo prodotto. Soddisfa pienamente le mie aspettative.
Data sheet
- Voltage: 400VAC
- Modules: 1
- Poles: 1P
- Amps: 20A
- Circuit Protections: Disconnectors
- Operating voltage: AC
