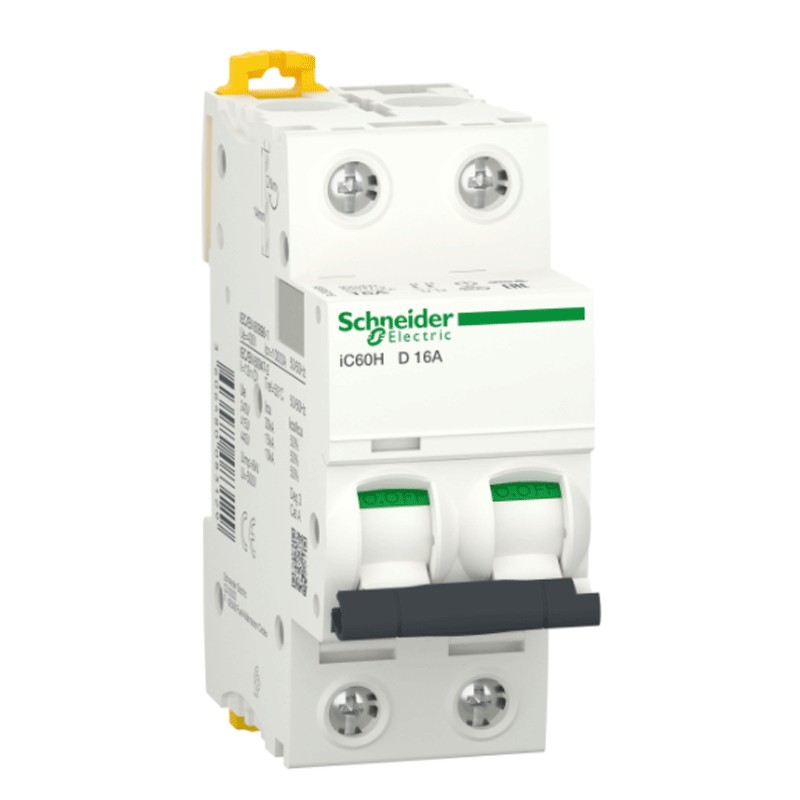

Switch circuit Breakers Schneider 2P 16A 10KA D 2 modules A9F85216
SNR A9F85216
3606480083129
Switch circuit Breakers Schneider 2P 16A 10KA D 2 modules A9F85216
Switch circuit Breakers Schneider 2P 16A 10KA D 2 modules A9F85216
€78.22
Tax included
€78.22
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
: 1
Pay in installments with Klarna
Device application: Distribution Range: Acti 9 Type of product or component: Switch, modular product Name: IC60 short Name: IC60H poles: 2P Number of poles protected: 2 rated Current [In]: 16 To network Type: AC, DC, Technology trip unit: thermal magnetic Code of the curve: D rated breaking capacity: 10 kA Icu conforming to EN 60947-2 - 440 V AC 50/60 Hz 10 kA Icu conforming to IEC 60947-2 - 440 V AC 50/60 Hz, 10000 A Icn conforming to EN 60898-1 - 400 V AC 50/60 Hz, 10000 A Icn conforming to IEC 60898-1 - 400 V AC 50/60 Hz 15 kA Icu conforming to EN 60947-2 - 380...415 V AC 50/60 Hz 15 kA Icu conforming to EN 60947-2 - 72...125 V DC 15 kA Icu conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz 15 kA Icu conforming to IEC 60947-2 - 72...125 V DC, 30 kA Icu conforming to EN 60947-2 - 220...240 V AC 50/60 Hz 30 kA Icu conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz 42 kA Icu conforming to EN 60947-2 - 12...133 V AC 50/60 Hz 42 kA Icu conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz utilization Category: Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2 Attitude to slicing: Yes conforming to EN 60898-1, Yes conforming to EN 60947-2, It conforms to IEC 60898-1, Is compliant to IEC 60947-2 Standards: EN 60898-1, EN 60947-2, IEC 60898-1, IEC 60947-2
There are no reviews
Data sheet
- Modules: 2
- Poles: 2P
- Curve: D
- Power: 10KA
- Amps: 16A
- Circuit Protections: Circuit breakers
